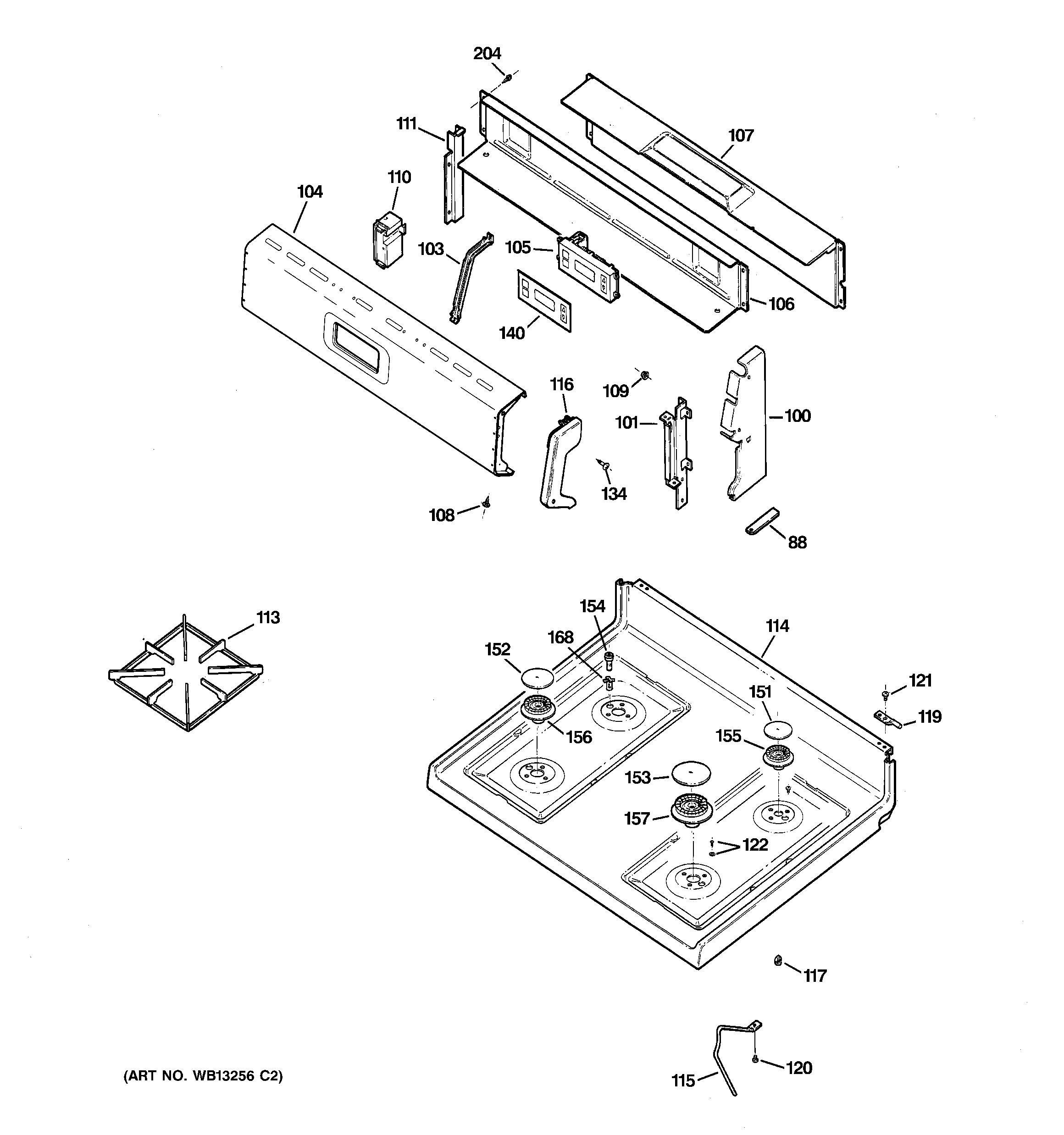

RGB533CEH9CC CONTROL PANEL & COOKTOP

RGB533CEH9CC CONTROL PANEL & COOKTOP

Written by

in

RGB533CEH9CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88WB2K64 GE Oven Felt Pad Black
88PAD
100GEN WB07K10115
100GEN WB07K10001
100GEN WB07K10116
100GEN WB07K10023
100GEN WB07K10022
100GEN WB07K10002
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10005
104GEN WB36K10555
104GEN WB36K10399
104GEN WB36K10397
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
108GEN WB01X5874
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111GEN WB34K0005
111GEN WB18K10039
113WB31K10015 GE Oven Black Grate
113GEN WB31K10053
113GEN WB31K10043
114COOKTOP BK
114GEN WB62K10048
114COOKTOP (BSQT)
115WB2K91 GE Oven Top Support
116GEN WB07K10118
116GEN WB07K10117
116WB07K10007 GE Oven Endcap Left
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
116WB07K10005 GE Oven Right Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
134GEN WB01K10004
134GEN WB01K10017
134GEN WB01K10003
140GEN WB27K10250
140GEN WB27K10249
140GEN WB27K10150
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151CAP-BURNER SMALL TAUPE
151WB29K10009 GE Oven Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
152CAP-BURNER MED TAUPE
152WB29K10001 GE Oven Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
153WB29X36765 GE Large Cap Burner Taupe Rep
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
