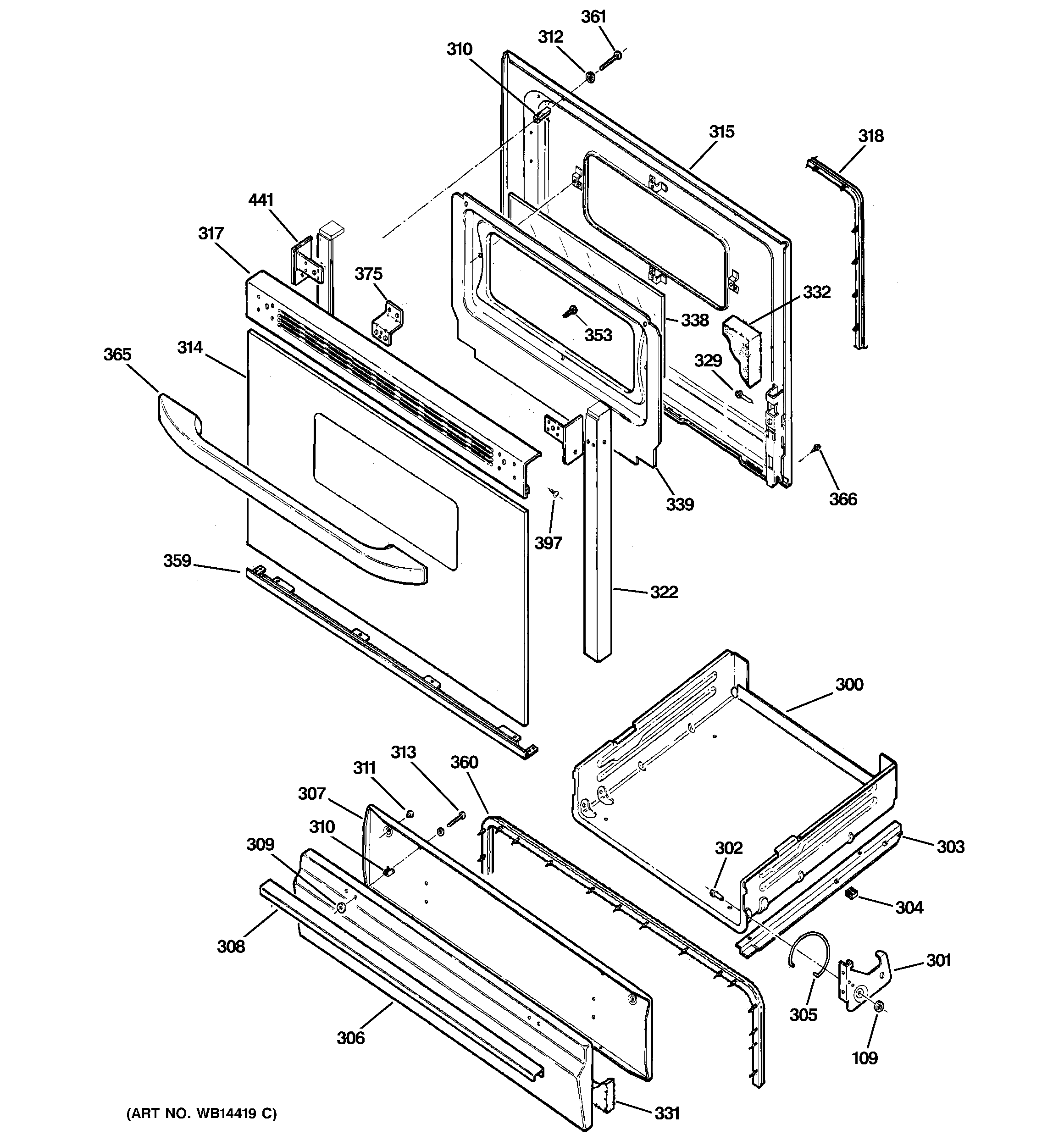

RGB533CEHACC DOOR & DRAWER PARTS

RGB533CEHACC DOOR & DRAWER PARTS

Written by

in

RGB533CEHACC DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10029 GE Oven Broiler Pan Slide
303WB39K10030 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306GEN WB39K10017
306GEN WB39K10015
307GEN WB39K10031
308HANDLE BROIL (BSQT)
308GEN WB15K10033
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K3 GE Oven Outer Door Glass White
314GEN WB57K10062
315GEN WB55K10043
317WB07K10191 GE Oven Vent Trim Door (White)
317WB35K10041 GE Oven Reflector
317WB07K10192 GE Oven Vent Door Trim Assembly
318WB35X29720 GE Oven Door Gasket
322GEN WB07K10273
322GEN WB07K10253
322GEN WB07K10254
322GEN WB07K10272
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
359WB07K10269 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
360GEN WB04K10023
361GEN WB01K0065
365HANDLE DOOR (BSQT)
365WB15X10048 GE Oven Door Handle White
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
397WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
397WB1K66 GE Screw
441END CAP DOOR RT (BISQUE)
441WB7K266 GE Oven Door End Cap
441END CAP DOOR LT (BISQUE)
