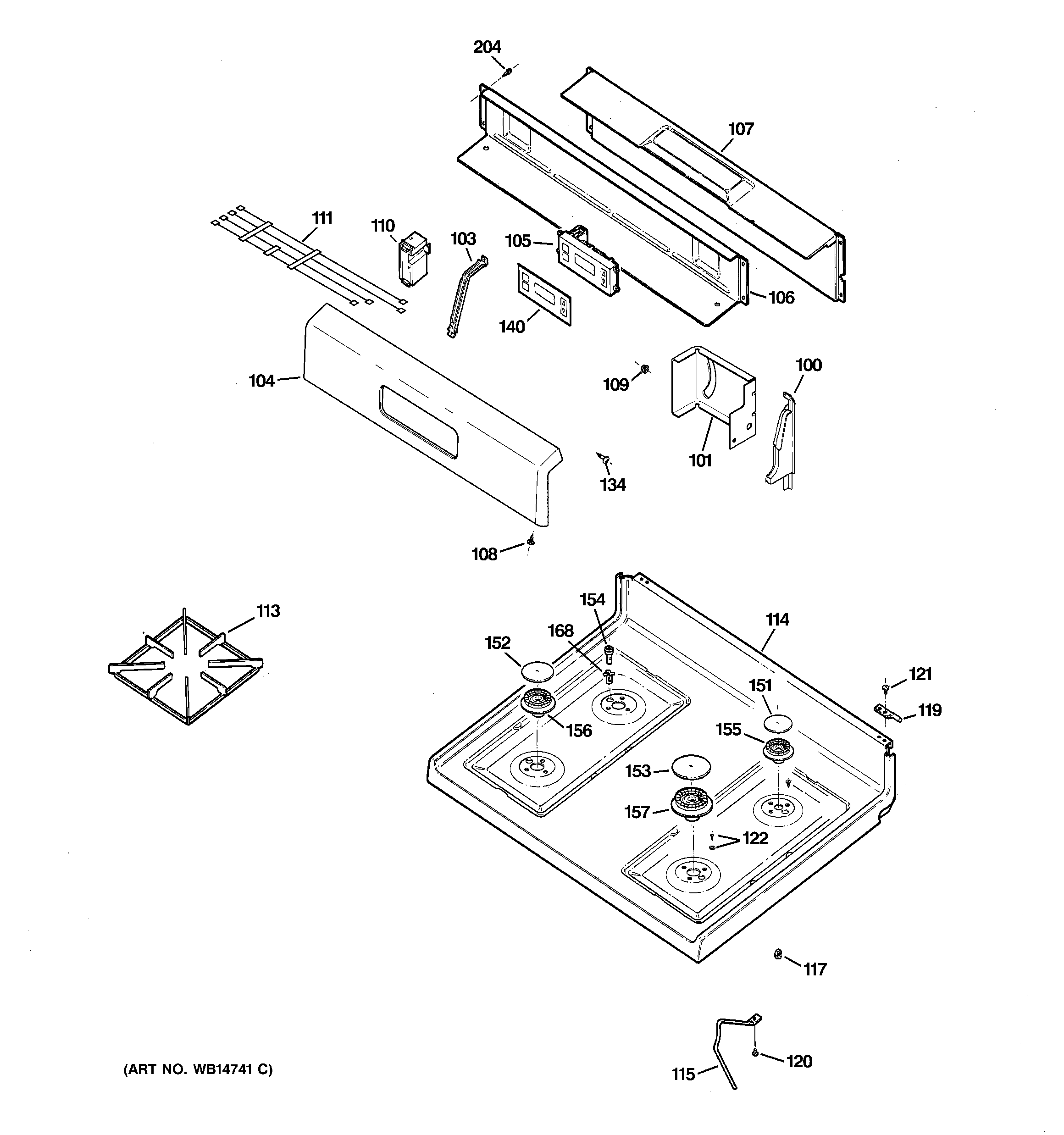

RGB533DEP2CC CONTROL PANEL & COOKTOP

RGB533DEP2CC CONTROL PANEL & COOKTOP

Written by

in

RGB533DEP2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07K10193 GE Oven End Support Gloss Black
100WB07K10196 GE Oven Left End Support (White)
100GEN WB07K10198
100GEN WB07K10197
100WB07K10195 GE Oven Right White End Support
100WB07K10194 GE Oven End Support Gloss Black
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10849
104GEN WB36K10848
104GEN WB36K10847
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB01T10016 GE Oven Screw 8-18 AB Hex
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
113GEN WB31K10043
113WB31K10015 GE Oven Black Grate
113GEN WB31K10053
114COOKTOP (BSQT)
114GEN WB62K10048
114COOKTOP BK
115WB02K10276 GE Cooktop Support
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
134GEN WB01X5874
140GEN WB27K10250
140GEN WB27K10313
140GEN WB27K10249
151WB29K10009 GE Oven Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151CAP-BURNER SMALL TAUPE
152WB29K10001 GE Oven Burner Cap
152CAP-BURNER MED TAUPE
152WB29K10004 GE Oven Gray Burner Cap
153WB29X36765 GE Large Cap Burner Taupe Rep
153WB29K10006 GE Oven Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
