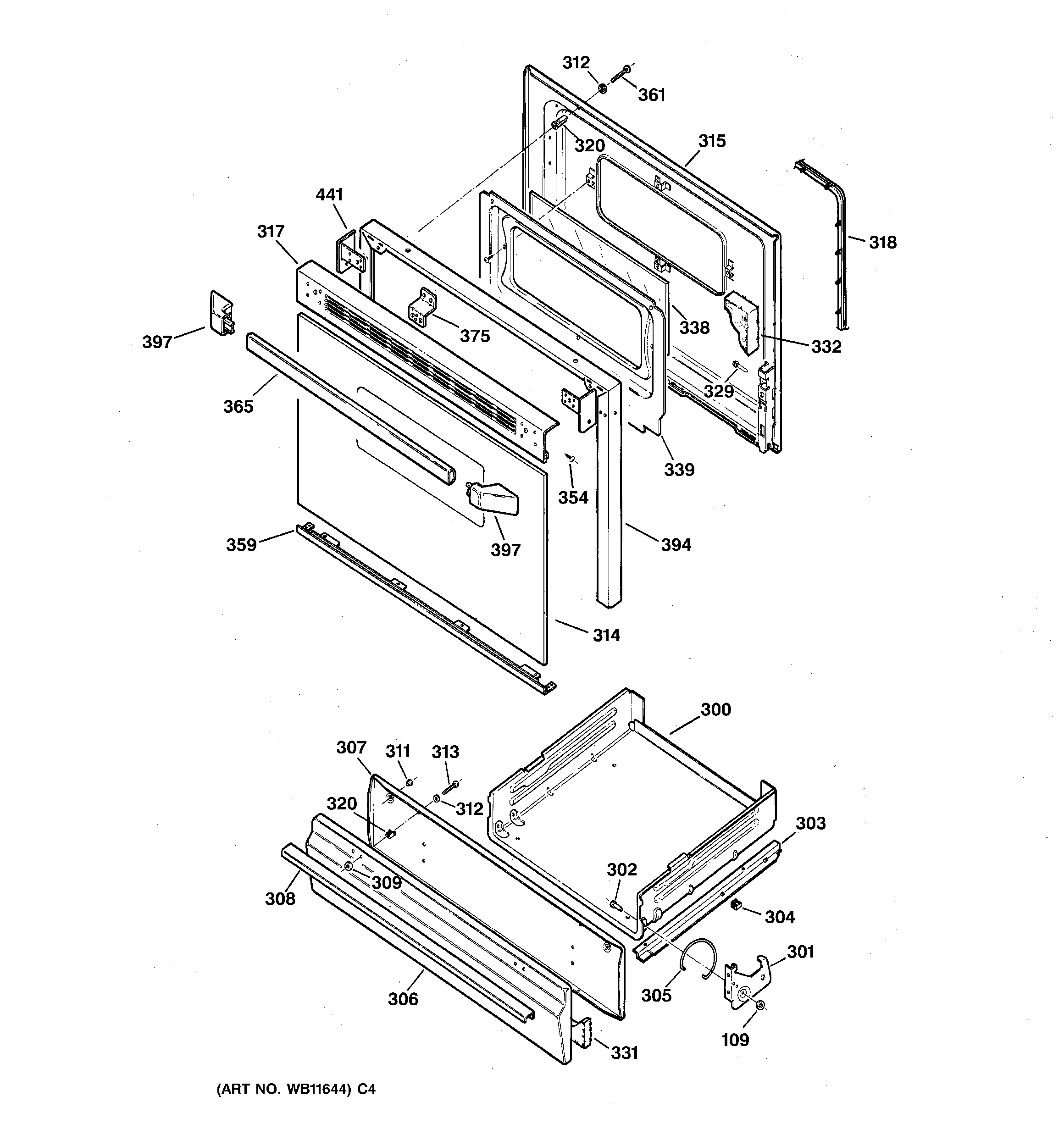

RGB533WEA1WW DOOR & DRAWER PARTS

RGB533WEA1WW DOOR & DRAWER PARTS

Written by

in

RGB533WEA1WW DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB56X21199 GE Oven Drawer Panel
307GEN WB39K0005
308GEN WB15K0017
309WASHER
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
314PAD
315GEN WB55K0021
317GEN WB07K10073
318WB35X29720 GE Oven Door Gasket
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
354WB1K66 GE Screw
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
361WB1K63 GE Oven Screw
365GEN WB15K5078
375CLIP WINDOW
394GEN WB07K0268
397WB7X7189 GE Oven Range Door Handle Endcap White
441WB7K266 GE Oven Door End Cap
