RGB533WEA2WW CONTROL PANEL & COOKTOP

RGB533WEA2WW CONTROL PANEL & COOKTOP

Written by

in

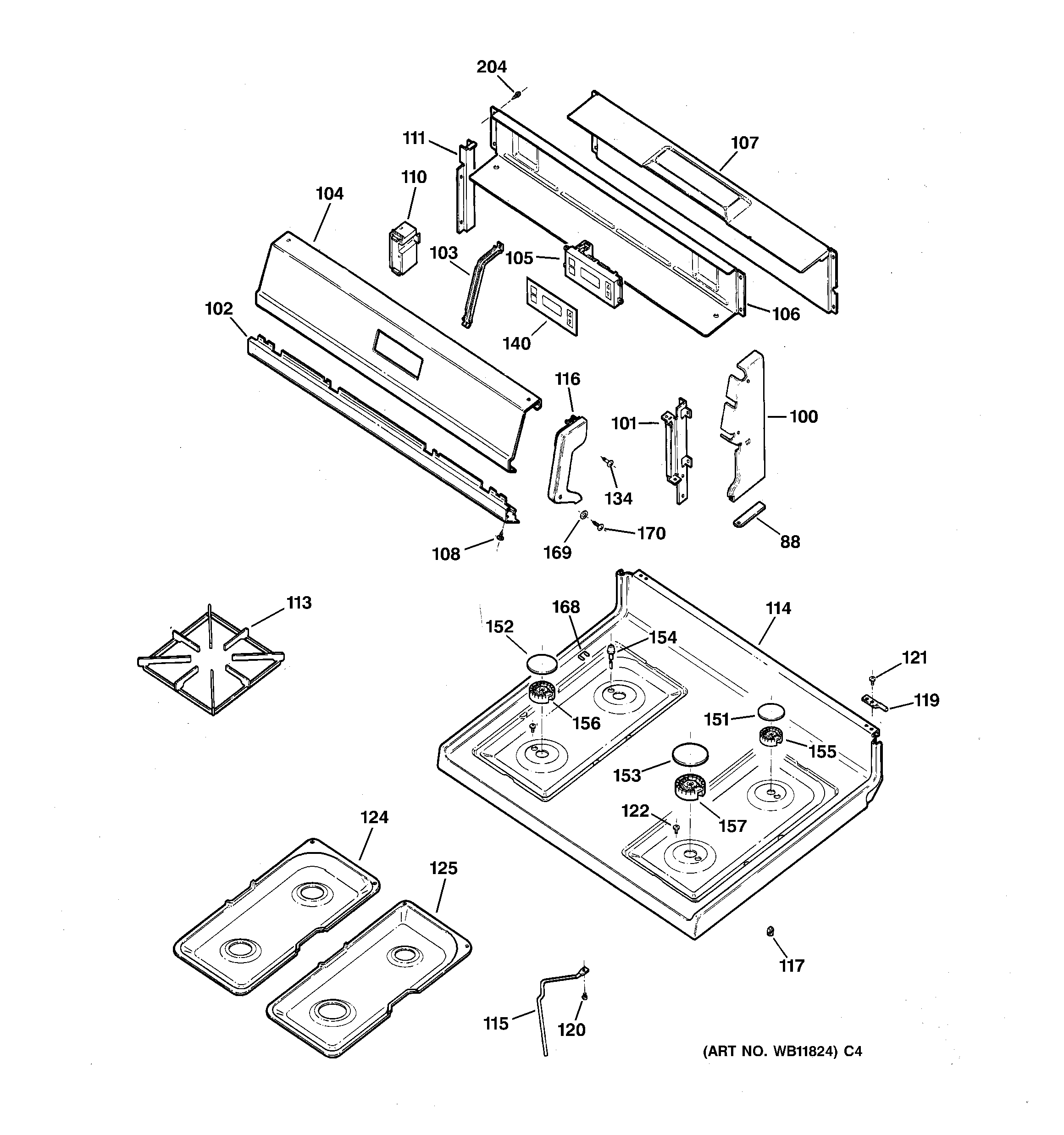

RGB533WEA2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10072
100GEN WB07K10071
101GEN WB37K0018
101GEN WB37K0017
102GEN WB07K0005
103GEN WB02K0063
104GEN WB36K10125
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110HARNESS HV
110GEN WB13K0025
111GEN WB34K0005
113GEN WB31K10043
114GEN WB62K10035
115WB2K91 GE Oven Top Support
116GEN WB07K0343
116GEN WB07K0342
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB1K84 GE Oven Screw and
134GEN WB01K0076
140GEN WB11K0052
151GEN WB29K0042
152GEN WB29K0045
153GEN WB29K10011
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168ELECTRODE CLIP
169GEN WB01K0057
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
