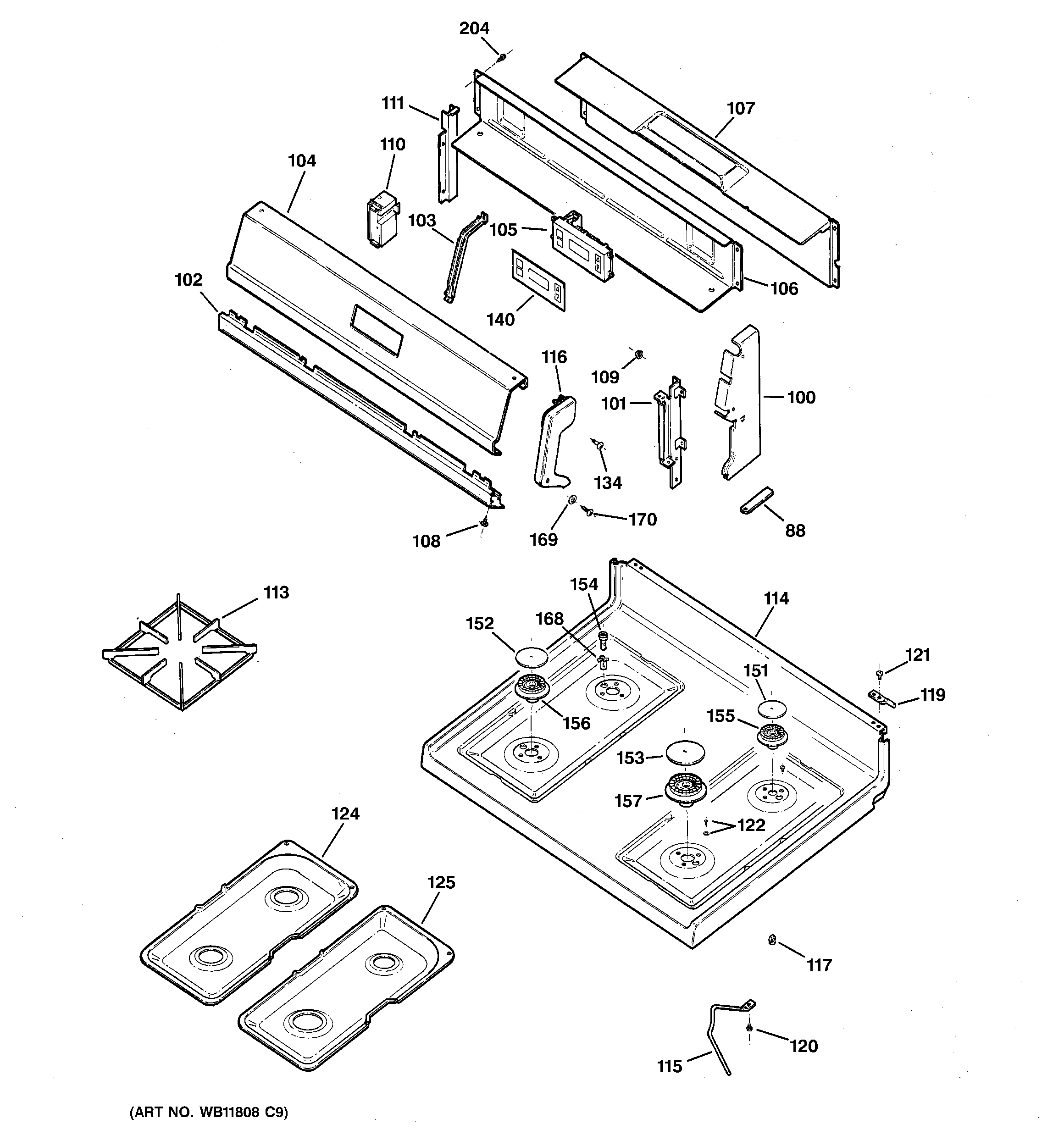

RGB533WEA4WW CONTROL PANEL & COOKTOP

RGB533WEA4WW CONTROL PANEL & COOKTOP

Written by

in

RGB533WEA4WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10071
100GEN WB07K10072
101GEN WB37K0017
101GEN WB37K0018
102GEN WB07K0005
103GEN WB02K0063
104GEN WB36K10125
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110GEN WB13K0025
111GEN WB34K0005
113GEN WB31K10043
114GEN WB62K10048
115WB2K91 GE Oven Top Support
116GEN WB07K0342
116GEN WB07K0343
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
134GEN WB01K0076
140GEN WB11K0052
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10003
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB01K0057
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
