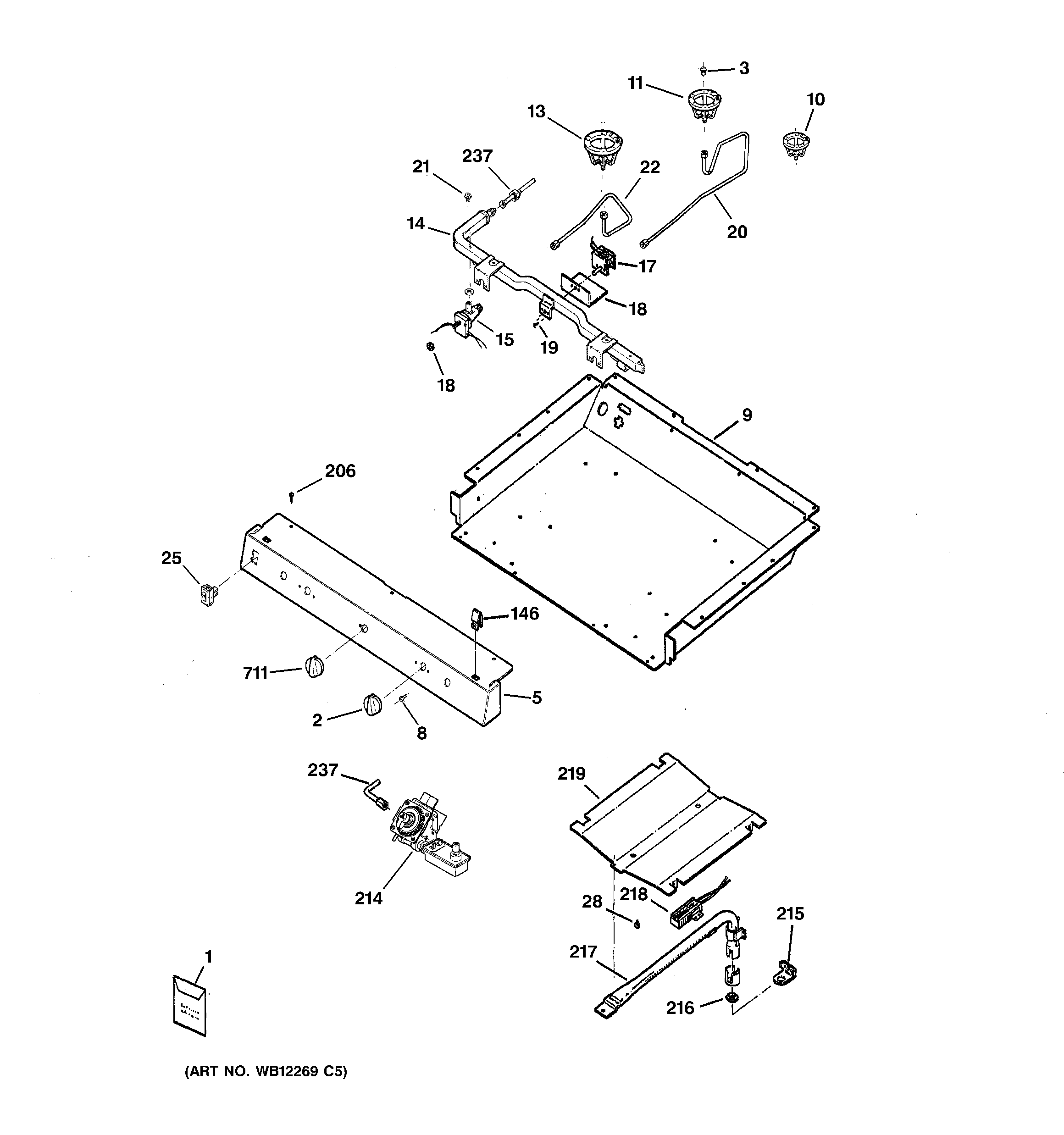

RGB533WEH1WW GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21032
1	GEN WB28K10175
1	PM USE & CARE MANUAL
2	WB03K10034 GE Oven Burner Knob
3	ORIFICE-NG MED 1.50MM
3	WB28K10023 GE Oven Orifice
3	WB28K10029 GE Oven Natural Gas Orifice
3	WB28K10030 GE Oven Natural Gas Orifice
3	WB28K10031 GE Oven Orifice
3	WB28K10032 GE Oven LP Orifice
5	GEN WB36K10398
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K0024
10	GEN WB02K10007
11	GEN WB02K10006
13	GEN WB02K10008
14	GEN WB28K10110
15	WB21K12 GE Oven Burner Control Valve
15	GEN WB21K0020
15	GEN WB21K0021
17	WB20K8 GE Oven Thermostat Temperature Control
18	WB2K24 GE Oven Valve Cover
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K10027
20	GEN WB28K10026
21	WB1K83 GE Oven Screw
22	WB28K10025 GE Gas Range Burner Tube
22	WB28K10024 GE Oven Burner Tube
25	WB24K5022 GE Oven Rocker Switch
28	WB1X1293 GE Oven Screw
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10044 GE Oven Control Valve Assembly
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
218	WB13K10013 GE Oven Burner Igniter Assembly
219	OVEN DEFLECTOR
237	GEN WB28K10109
711	THERMOSTAT KNOB – WHITE
