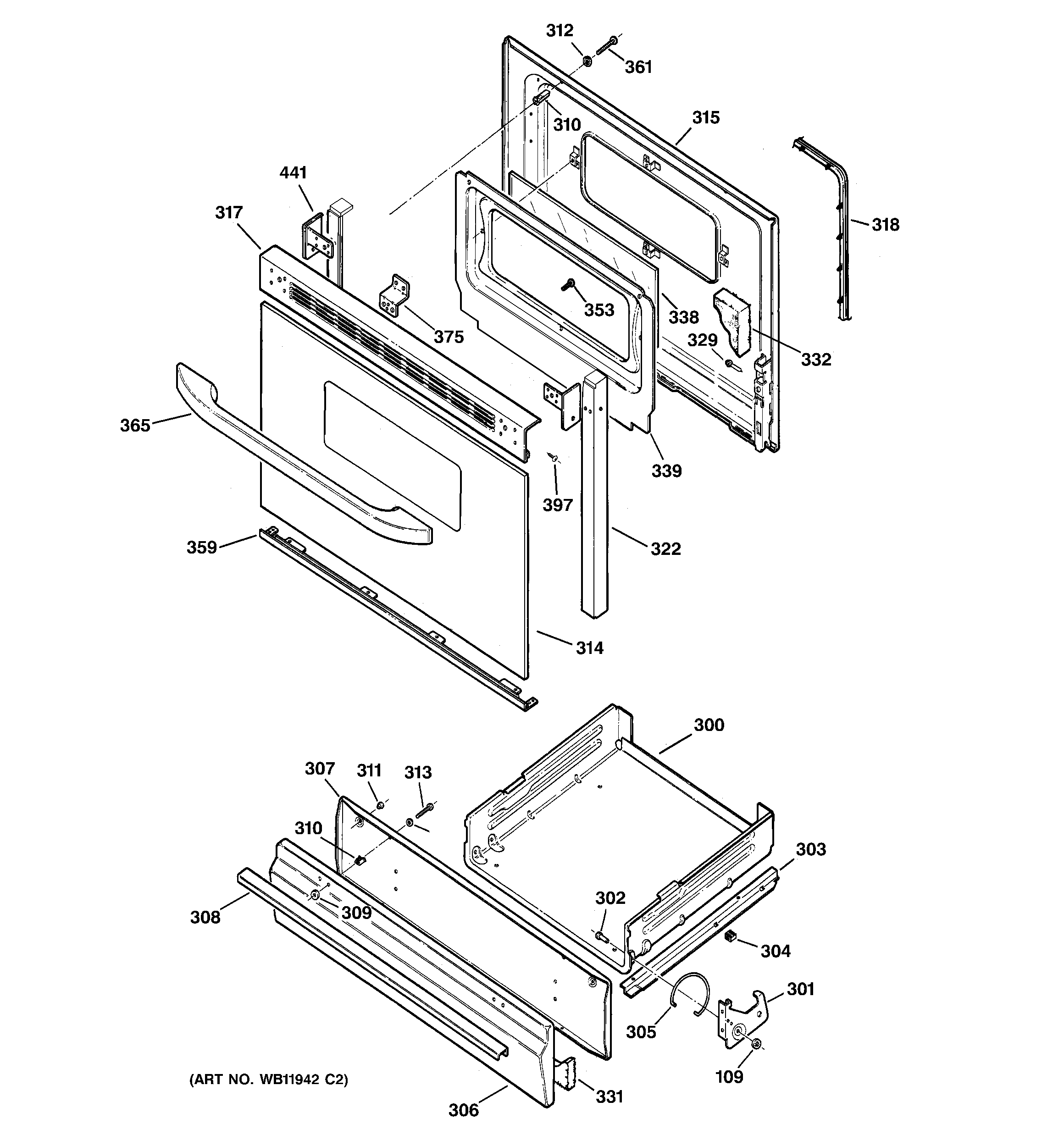

RGB533WEH4WW DOOR & DRAWER PARTS

RGB533WEH4WW DOOR & DRAWER PARTS

Written by

in

RGB533WEH4WW DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306GEN WB39K10015
307GEN WB39K10016
308GEN WB15K10033
309WASHER
310GEN WB02K0002
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K0021
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29720 GE Oven Door Gasket
322GEN WB07K10207
322GEN WB07K10208
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
353WB1K67 GE Oven Screw 8-22
353WB1K63 GE Oven Screw
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
365WB15X10048 GE Oven Door Handle White
375WB02K10245 GE Oven Door Bracket
397WB1K66 GE Screw
441WB7K266 GE Oven Door End Cap
