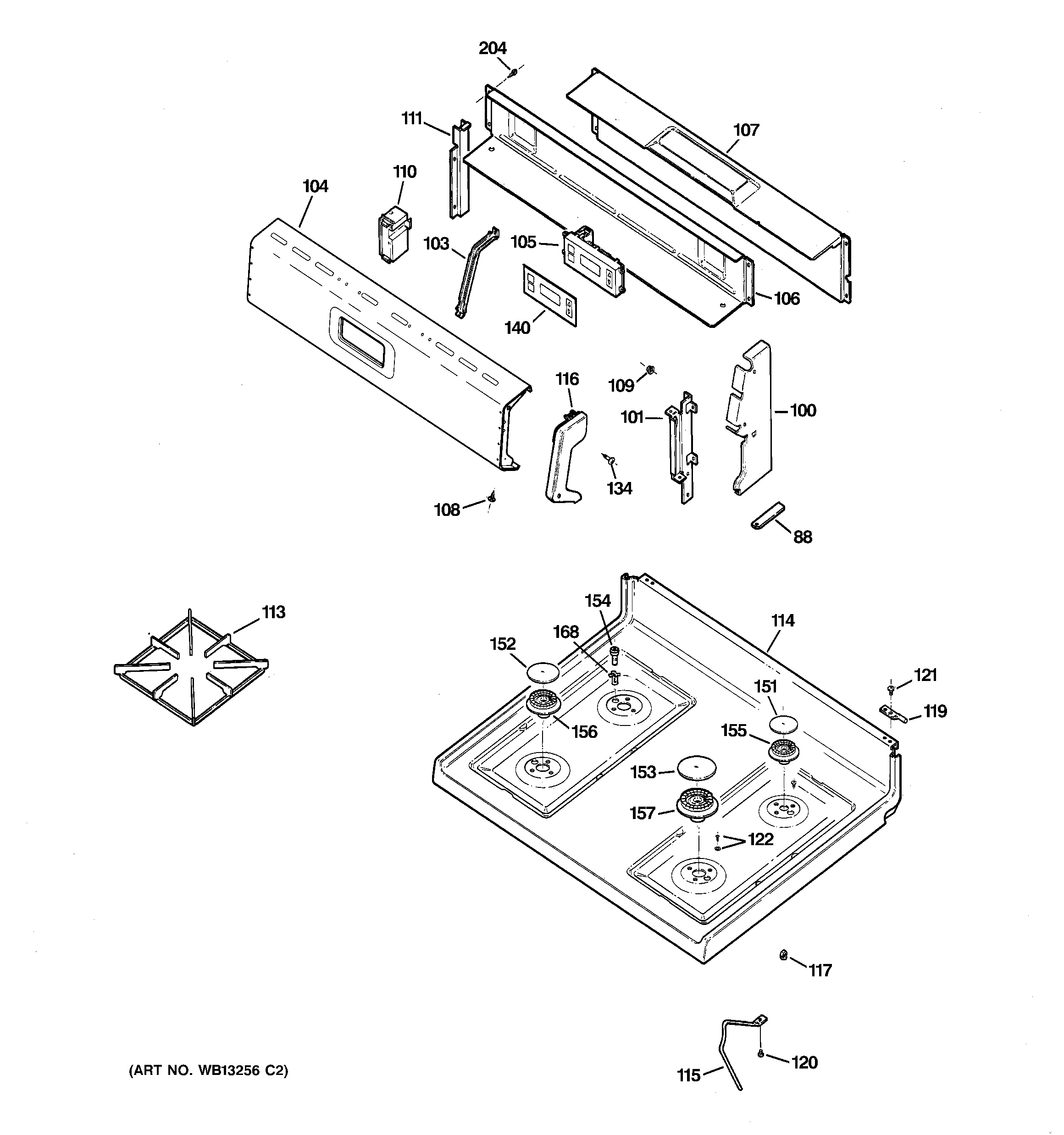

RGB533WEH5WW CONTROL PANEL & COOKTOP

RGB533WEH5WW CONTROL PANEL & COOKTOP

Written by

in

RGB533WEH5WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88WB2K64 GE Oven Felt Pad Black
100GEN WB07K10001
100GEN WB07K10002
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10399
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
109GEN WB01X5743
110WB18K10035 GE Oven Wire Harness
110WB13X42446 GE Spark Module Replacement Kit
110GEN WB18K10027
111GEN WB34K0005
113GEN WB31K10043
114GEN WB62K10048
115WB2K91 GE Oven Top Support
116WB07K10005 GE Oven Right Endcap
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
134GEN WB01K10004
140GEN WB27K10134
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
