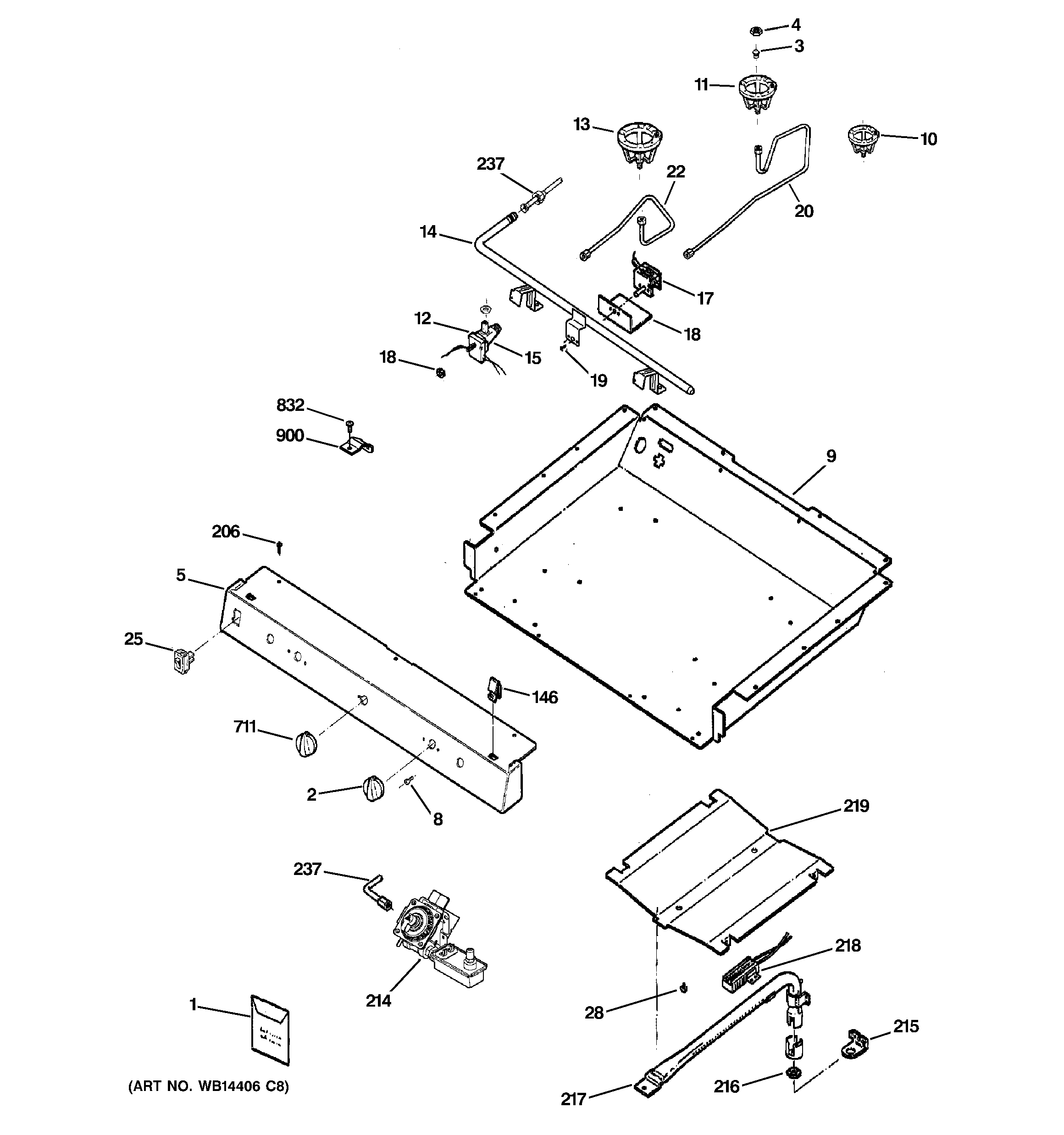

RGB533WEHAWW GAS & BURNER PARTS

RGB533WEHAWW GAS & BURNER PARTS

Written by

in

RGB533WEHAWW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85095
1GEN 31-21299
1WB28K10556 GE Range Gas Valve Conversion Kit
1GEN 31-21391
2GEN WB03K10099
2WB03K10034 GE Oven Burner Knob
3WB28K10031 GE Oven Orifice
3WB28K10023 GE Oven Orifice
3WB28K10032 GE Oven LP Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10764
5WB36K10765 GE Oven Manifold Panel
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10038
12WB24K10042 GE Oven Rotary Switch
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB02K10073 GE Oven Clip Capillary
14GEN WB28K10571
15VALVE BURNER 270
15VALVE BURNER 270 RR
15WB21K10099 GE Oven Burner Valve
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
20WB28K10187 GE Oven Rear Orifice Holder
22WB28K10189 GE Oven Front Orifice Holder
22WB28K10190 GE Oven Left Front Orifice
25WB24K10005 GE Oven Switch Rocker
25WB24K5022 GE Oven Rocker Switch
28WB1X1293 GE Oven Screw
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10478
237GEN WB28K10109
711THERMOSTAT KNOB – WHITE
711GEN WB03K10126
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10297 GE Oven Valve Bracket
