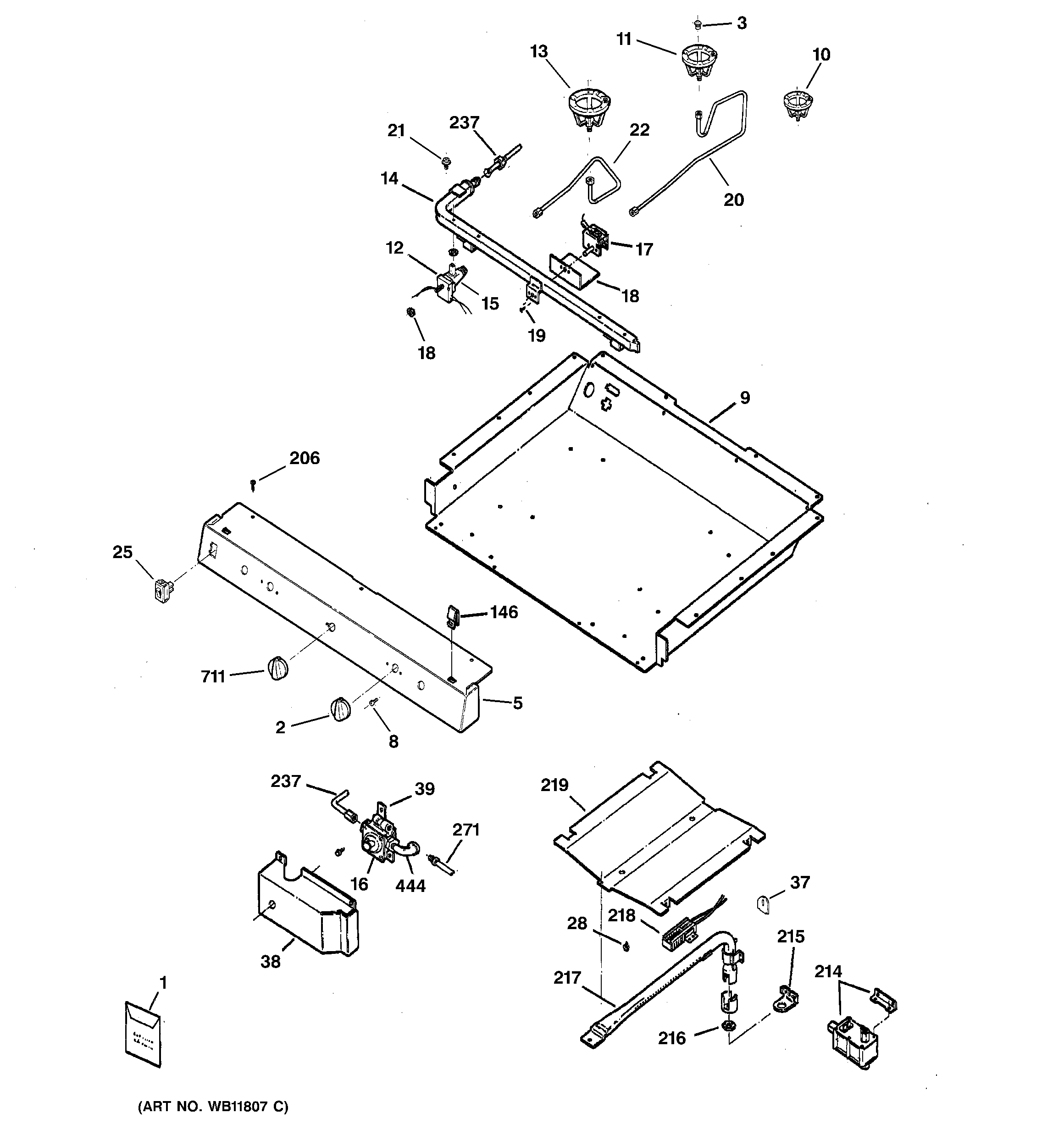

RGB535BEA1CT GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-20624
1	GEN WB28K10045
1	WB2K20 GE Oven Bracket Assembly
1	GEN 49-85015
2	GEN WB03K10049
3	WB28K10023 GE Oven Orifice
3	WB28K10029 GE Oven Natural Gas Orifice
3	WB28K10031 GE Oven Orifice
3	WB28K10032 GE Oven LP Orifice
3	ORIFICE-NG MED 1.50MM
3	WB28K10030 GE Oven Natural Gas Orifice
5	GEN WB36K10122
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K0024
10	GEN WB02K10007
11	GEN WB02K10006
12	GEN WB24K10003
13	GEN WB02K10008
14	GEN WB28K10020
15	VALVE-TOP LEFT BURNERS
15	WB21K12 GE Oven Burner Control Valve
15	GEN WB21K0042
16	GEN WB19K10001
17	WB20K8 GE Oven Thermostat Temperature Control
18	WB2K24 GE Oven Valve Cover
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K10026
20	GEN WB28K10027
21	WB1K83 GE Oven Screw
22	WB28K10024 GE Oven Burner Tube
22	WB28K10025 GE Gas Range Burner Tube
25	GEN WB24K0003
28	WB1X1293 GE Oven Screw
37	WB34K14 GE Igniter Cover
38	GEN WB34K0029
39	GEN WB02K0088
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	GEN WB28K10021
271	GEN WB28K0149
444	GEN WB28K0061
711	GEN WB03K10048
