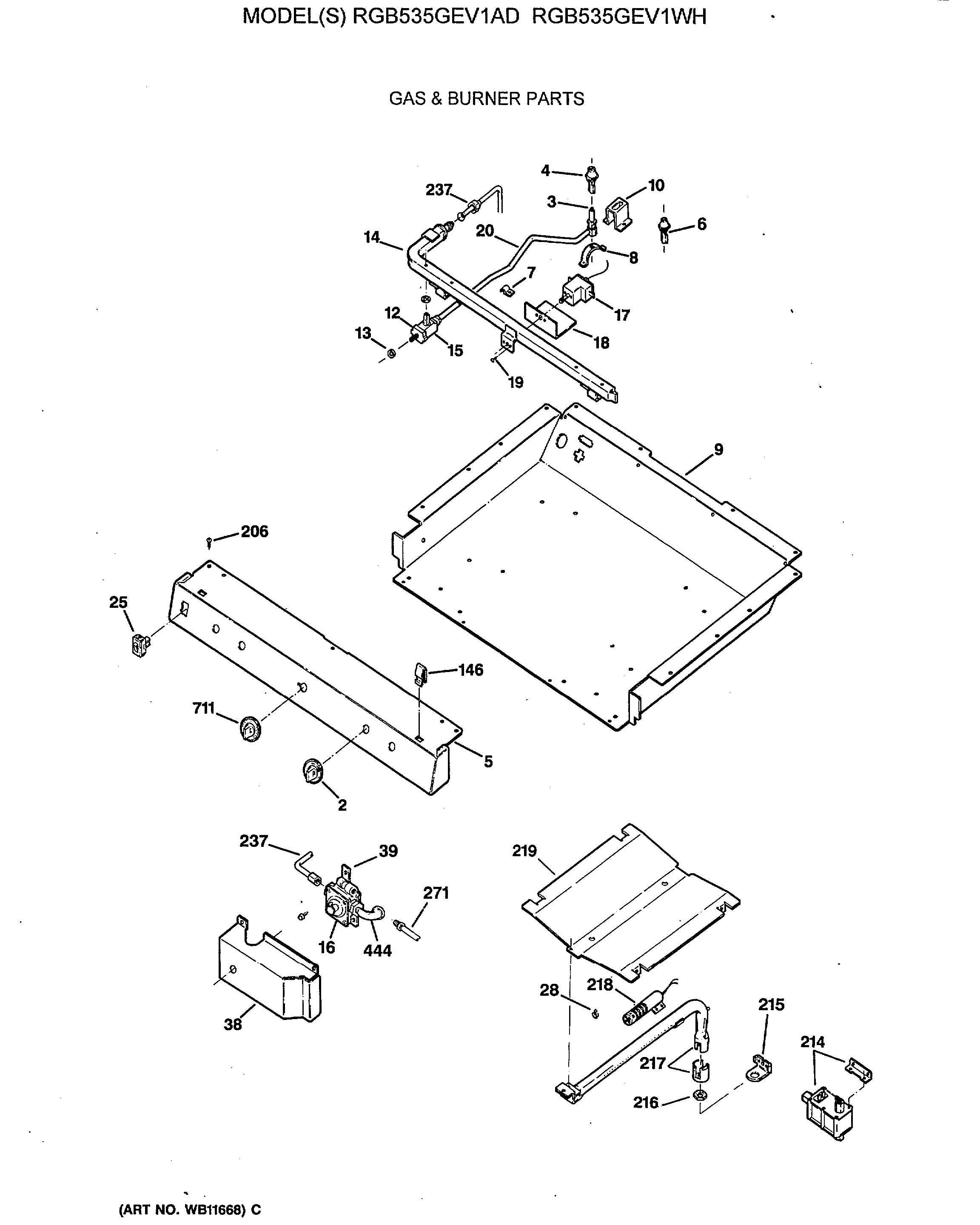

RGB535GEV1AD GAS & BURNER PARTS

RGB535GEV1AD GAS & BURNER PARTS

Written by

in

RGB535GEV1AD GAS & BURNER PARTS

Products

PositionProduct
1WB2K20 GE Oven Bracket Assembly
2GEN WB03K0191
3ORIF. SPUD (LP) MED.
3GEN WB28K0141
3ORIF. SPUD LP LG
3GEN WB28K0142
3GEN WB28K0144
3GEN WB28K0143
4GEN WB16K0013
5PANEL MANIFOLD SP
6GEN WB16K0014
7GEN WB02K0087
8GEN WB09K0007
9GEN WB63K0024
10GEN WB02K0061
10GEN WB01K0004
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0066
15GEN WB21K0021
15GEN WB21K0020
15WB21K12 GE Oven Burner Control Valve
16GEN WB19K0026
16GEN WB19K0028
17GEN WB20K0002
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0098
20GEN WB28K0096
20GEN WB28K0097
20GEN WB28K0095
21WB1K83 GE Oven Screw
22GEN WB19K0005
23GEN WB02K0021
24GEN WB01K0011
25GEN WB24K0003
28WB1X1293 GE Oven Screw
28WB2X9154 GE Oven Igniter with 8" Leads
38GEN WB34K0029
39GEN WB02K0088
145GEN WB01K0027
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K13 GE Oven Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K0018
219OVEN DEFLECTOR
237GEN WB28K0148
239GEN WB63K0001
250GEN WB53K0010
257GEN WB38K0004
271GEN WB28K0149
299WB1K43 GE Oven Support Bracket
302GEN WB01K0040
317GEN WB07K0239
321WB1X5731D GE Oven Nut Package of 12
327WB01K10093 GE Oven Speednut
444GEN WB28K0061
461WB1X536 GE Oven Screw
708COVER BACK PANEL SP
711GEN WB03K0060
712WB1K37 GE Oven Screw
713WB39K33 GE Support
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
