RGB540SEH2SA DOOR & DRAWER PARTS

RGB540SEH2SA DOOR & DRAWER PARTS

Written by

in

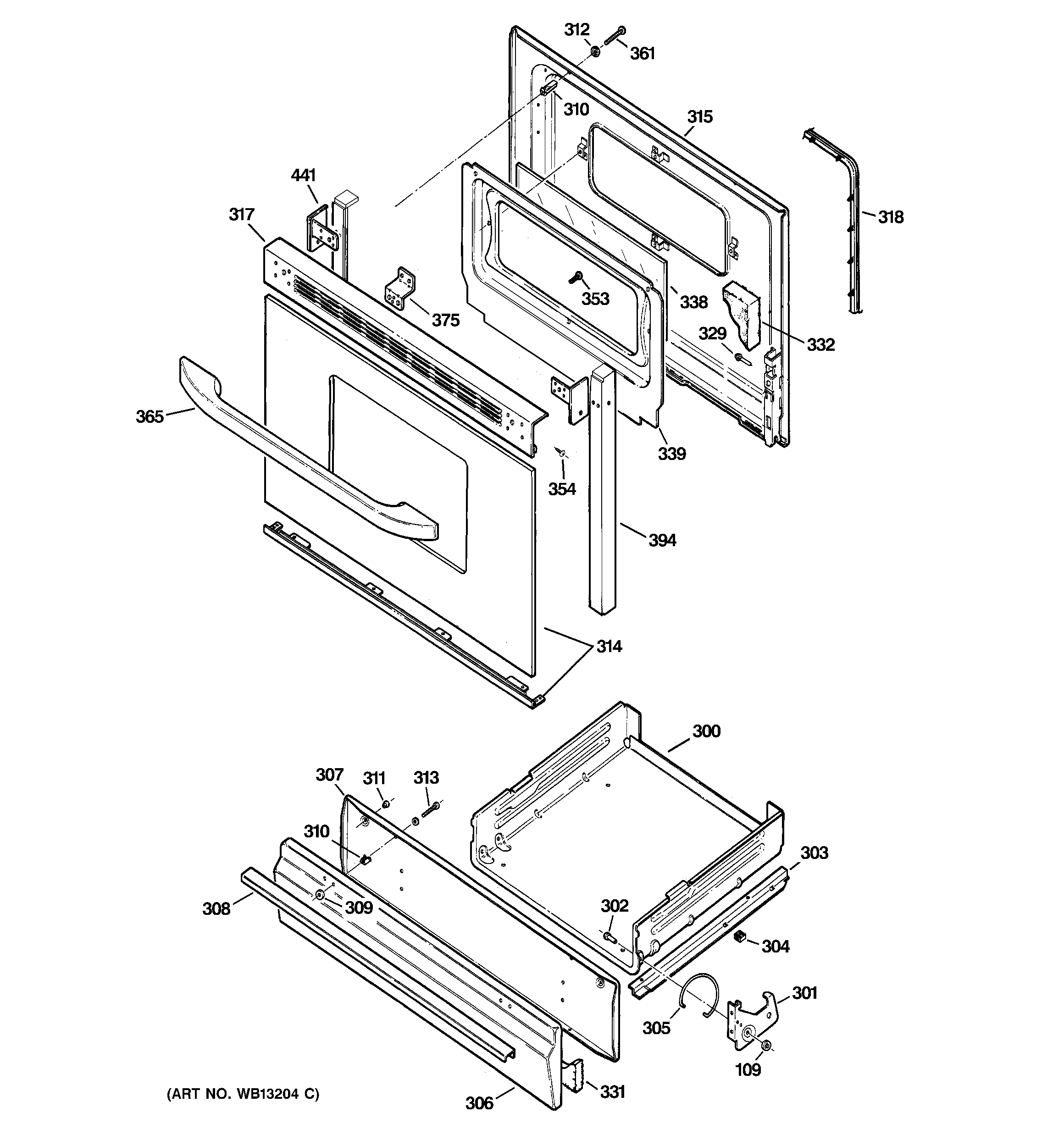

RGB540SEH2SA DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306GEN WB55K0001
306WB39K10 GE Oven Drawer Panel Black
306GEN WB56K10017
307GEN WB39K0005
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1K63 GE Oven Screw
314WB57K4 GE Oven Black Glass Door
314GEN WB57K10102
315GEN WB55K0014
317WB07K10200 GE Oven Vent Trim Assembly
317GEN WB35K0033
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0011
332GEN WB35K0013
332GEN WB35K0014
338GEN WB56K0014
339GEN WB56K0015
353WB1K67 GE Oven Screw 8-22
354WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
361WB1X5731D GE Oven Nut Package of 12
365WB15X10047 GE Range Oven Black Door Handle
375WB02K10245 GE Oven Door Bracket
394GEN WB35K0022
394TRIM POST BK LF
394TRIM POST BK RT
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
