RGB540SEH7SA CONTROL PANEL & COOKTOP

RGB540SEH7SA CONTROL PANEL & COOKTOP

Written by

in

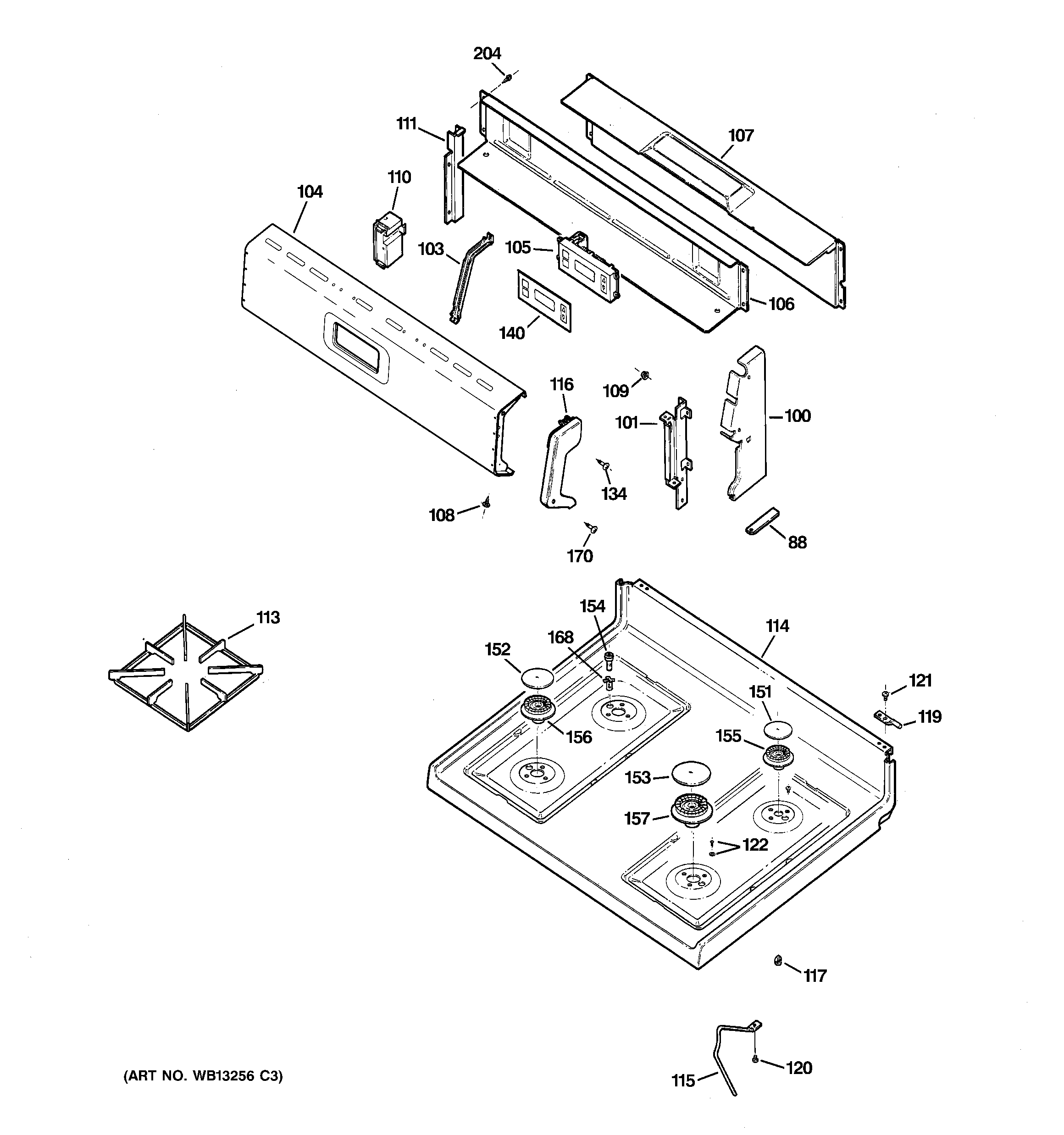

RGB540SEH7SA CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
88GEN WB02K0062
100GEN WB07K10023
100GEN WB07K10022
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10441
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111GEN WB34K0005
111GEN WB18K10039
113WB31K10015 GE Oven Black Grate
114COOKTOP BK
115WB2K91 GE Oven Top Support
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
134GEN WB01K10003
140GEN WB27K10150
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
