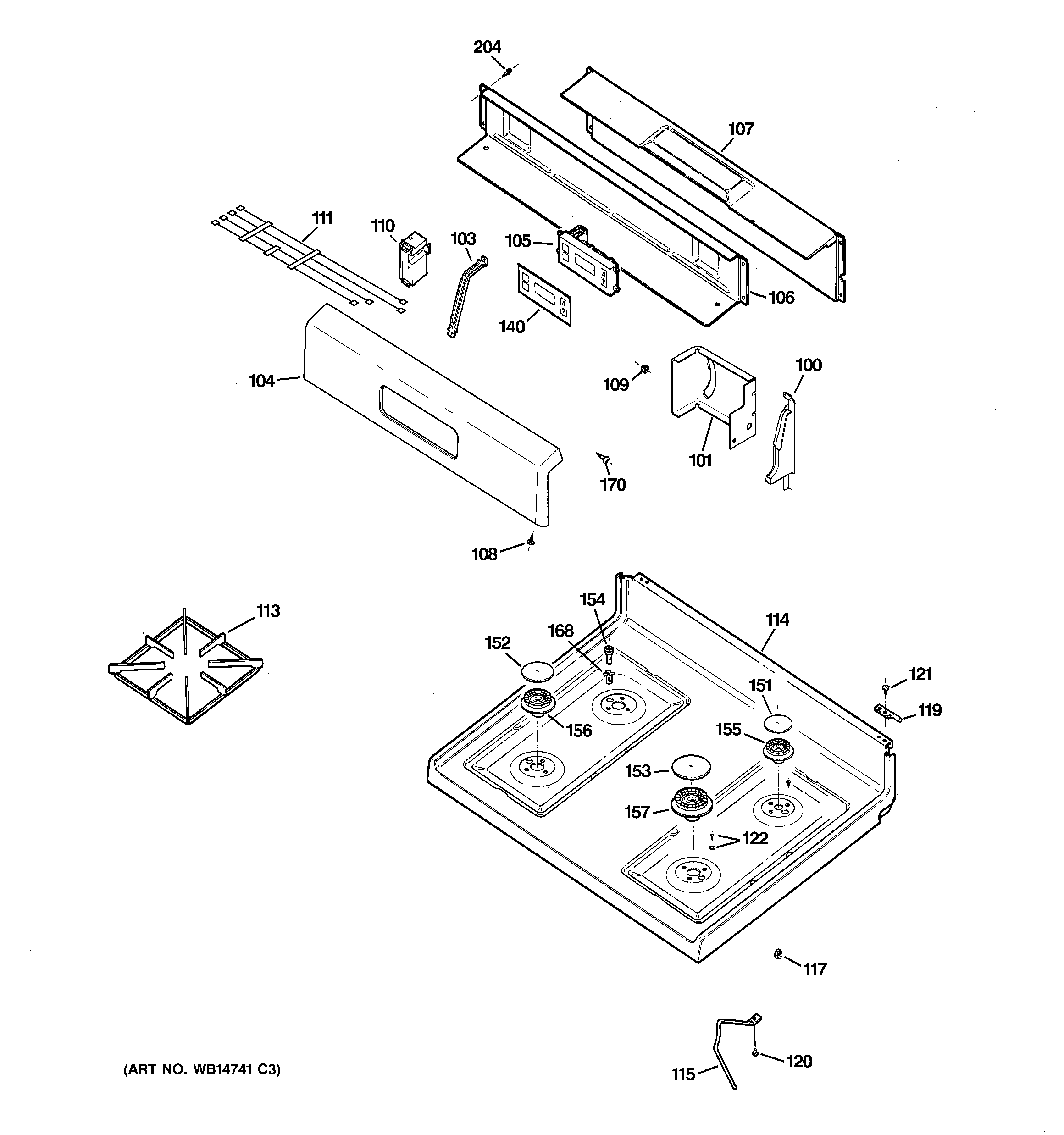

RGB540SEP2SA CONTROL PANEL & COOKTOPadmin2025-04-26T10:07:06+00:00RGB540SEP2SA CONTROL PANEL & COOKTOP ProductsPositionProduct100WB07K10193 GE Oven End Support Gloss Black100WB07K10194 GE Oven End Support Gloss Black101WB37K10004 GE Cooktop Left Bracket101WB37K10003 GE Cooktop Right Bracket103WB02K10074 GE Oven Control Bracket104GEN WB36K10850105WB27T10469 GE Oven Timer Control Board106WB34K10003 GE Upper Back Oven Cover107WB34K10001 GE Lower Back Cover108WB1X5364 GE Oven Mounting Screw109GEN WB01X5743110WB01T10016 GE Oven Screw 8-18 AB Hex110WB13K10029 GE Oven Spark Module111GEN WB18K10039113WB31K10015 GE Oven Black Grate114COOKTOP BK115WB02K10276 GE Cooktop Support117GEN WB02K0017117WB14K10004 GE Oven Pin Locator119WB14K5 GE Oven Hinge Pin120WB1K45 GE Oven Screw and Washer Assembly121WB1K5119 GE Oven Screw122GEN WB01K10008140GEN WB27K10313151WB29K10009 GE Oven Burner Cap152WB29K10001 GE Oven Burner Cap153WB29K10006 GE Oven Burner Cap154GEN WB13K10021155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range156WB16K10055 GE Oven Burner Base157BURNER 12K168WB01K10112 GE Range Oven Electrode Clip170GEN WB01X5716204WZ4X345D GE Screw Package 12 C92204WB1K5062 GE Oven Screw
