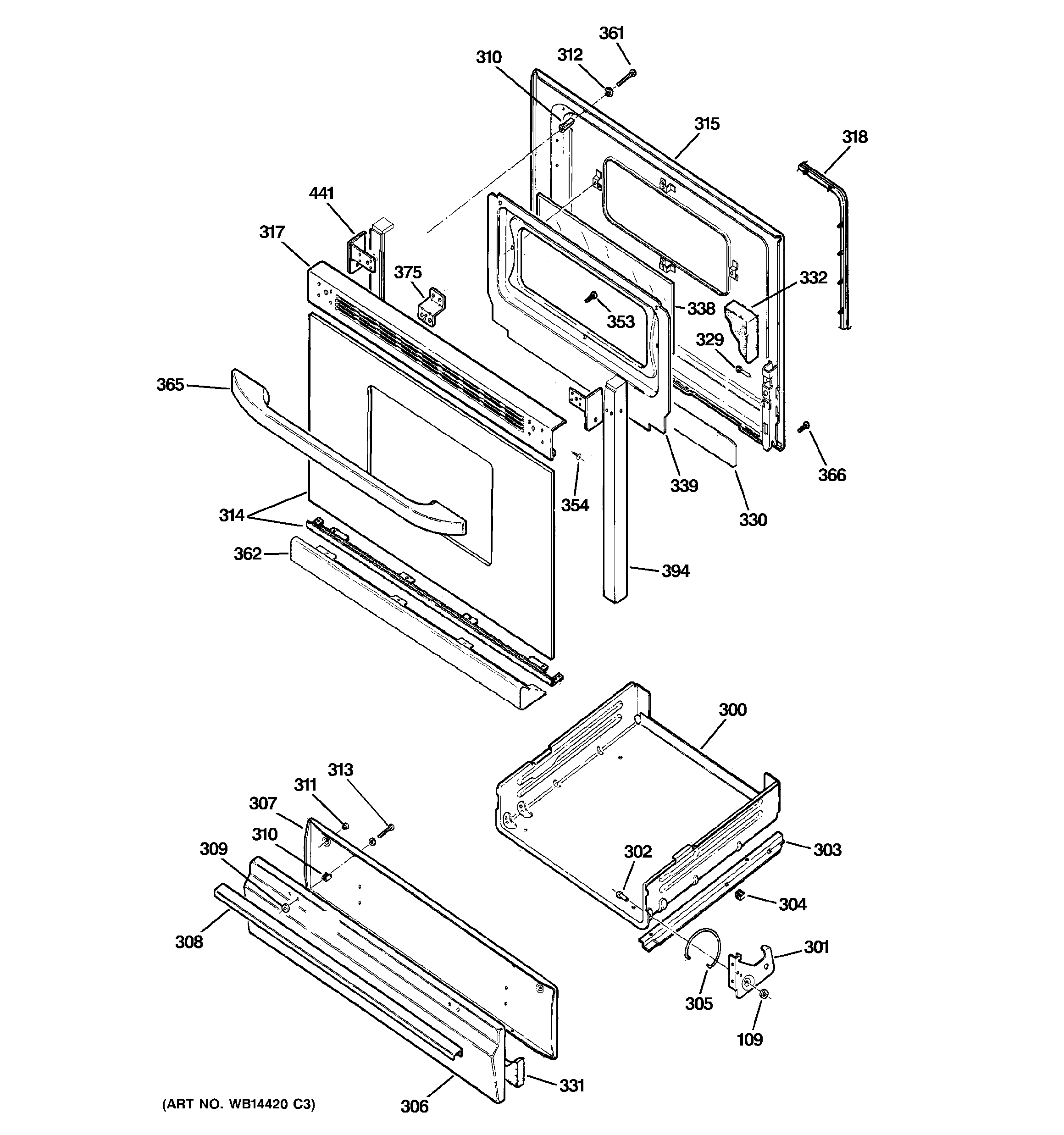

RGB540SEP5SA DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306PANEL DRAWER
307WB39K10041 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1K63 GE Oven Screw
314GEN WB57K10147
315GEN WB55K10037
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
332WB35K10148 GE Oven Door Top Insulation
332WB35K10147 GE Oven Bottom Insulation Door
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
353WB1K67 GE Oven Screw 8-22
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
361GEN WB01K0065
362GEN WB07K10342
365WB15X10047 GE Range Oven Black Door Handle
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10249
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
