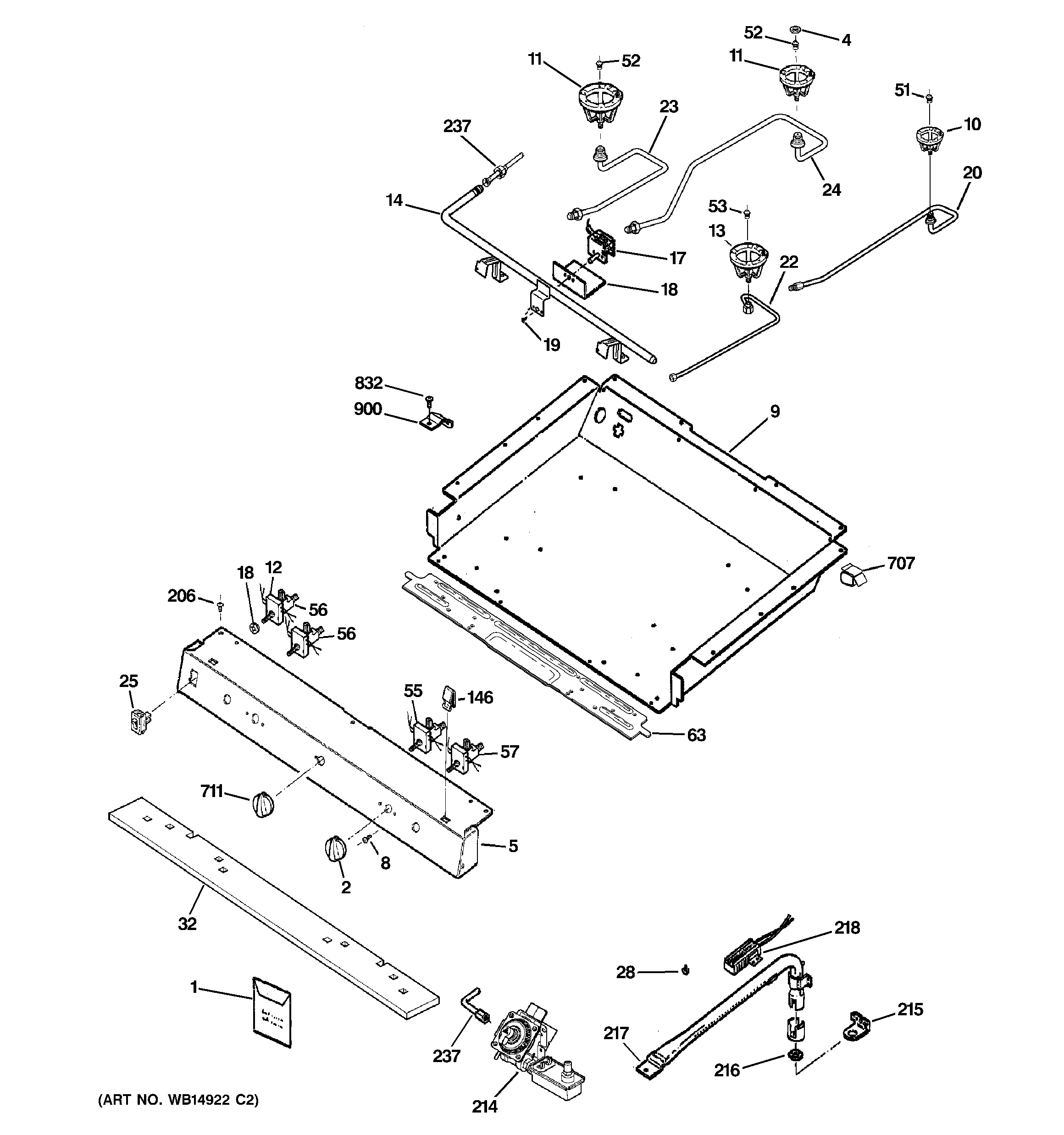

RGB540SEP5SA GAS & BURNER PARTS

RGB540SEP5SA GAS & BURNER PARTS

Written by

in

RGB540SEP5SA GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85199
1GEN 31-21315
1GEN 31-21391
2WB03K10035 GE Oven Top Burner Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10916
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10038
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB02K10073 GE Oven Clip Capillary
14WB28K10427 GE Oven Manifold Pipe
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20WB28K10187 GE Oven Rear Orifice Holder
22GEN WB28K10783
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
25GEN WB24K0003
28WB1X1293 GE Oven Screw
32INSULATION BURNER BOX
51WB28K10031 GE Oven Orifice
52WB28K10032 GE Oven LP Orifice
53WB28K10023 GE Oven Orifice
55VALVE BURNER 270 RR
56VALVE BURNER 270
57WB21K10099 GE Oven Burner Valve
63WB34X20680 GE Support Manifold
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY ASSEMBLY
707WB02K10267 GE Wire Clip
711WB03K10037 GE Oven Control Knob
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10297 GE Oven Valve Bracket
