RGB628GEN1

Products

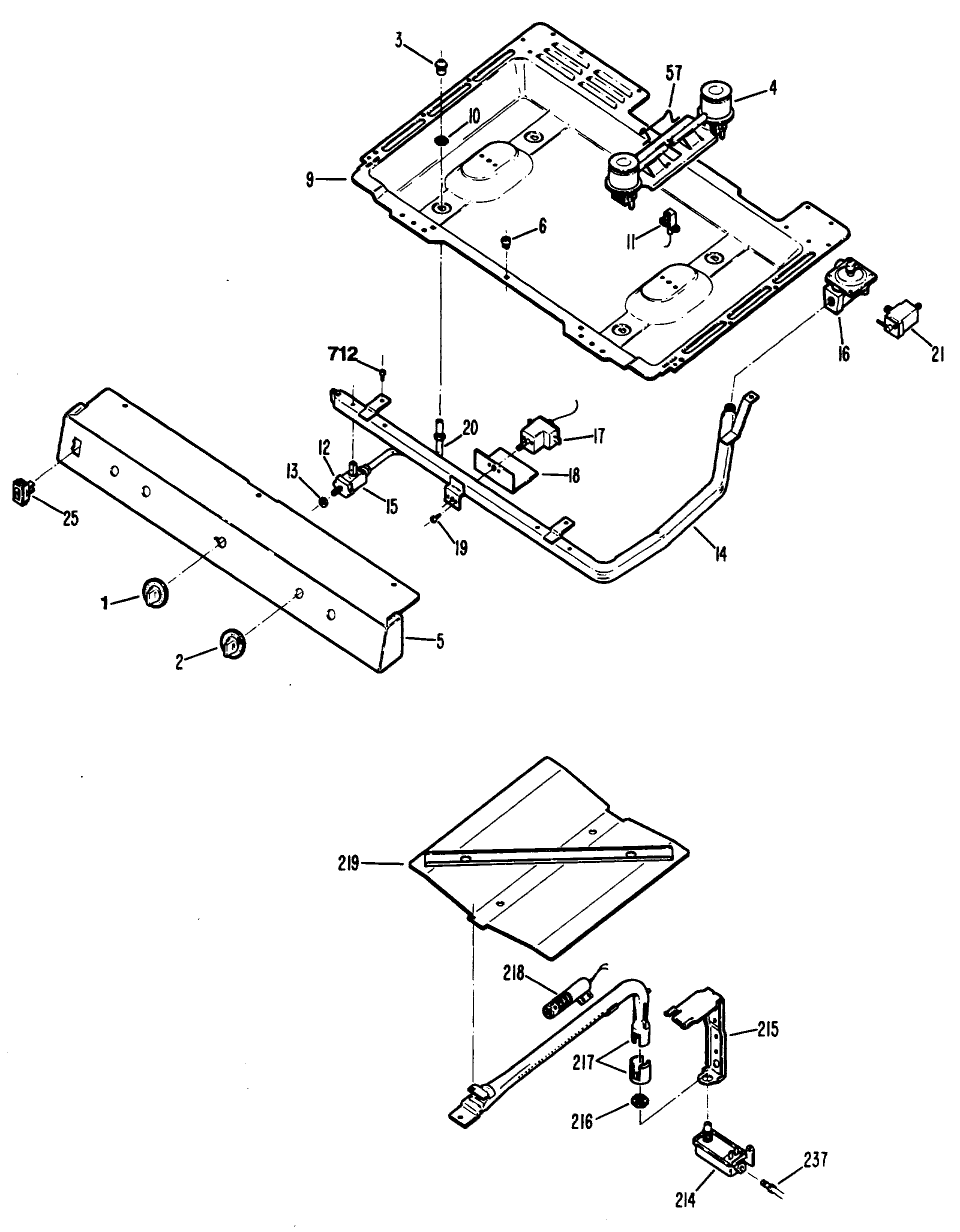

Position	Product
1	GEN WB03K0022
2	GEN WB03K0027
3	ORIFICE NATURAL GAS
3	WB28K10376 GE Oven Orifice
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB07K0060
5	GEN WB07K0021
6	GEN WB02K0009
7	GEN WB01K0013
8	GEN WB01K0014
9	GEN WB63K0009
10	GEN WB01K0004
11	WB18X26988 GE Oven Top Spark Electrode
12	GEN WB24K0004
13	WB2K24 GE Oven Valve Cover
14	GEN WB28K0042
15	GEN WB21K0002
16	GEN WB19K0001
17	GEN WB20K0005
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K0031
20	GEN WB28K0032
20	GEN WB28K0005
20	GEN WB28K0004
21	GEN WB19K0007
25	GEN WB24K0003
100	COVER END RIGHT (BK)
100	COVER END LEFT (BK)
101	GEN WB37K0012
101	GEN WB37K0011
102	GEN WB07K0005
103	GEN WB37K0003
104	GEN WB07K0043
105	UNKNOWN
106	GEN WB36K0003
107	GEN WB36K0002
108	WB1X5364 GE Oven Mounting Screw
109	GEN WB01X5743
110	GEN WB13K0002
111	GEN WB34K0005
112	GEN WB14K0001
112	WB14K2 GE Oven Left Handle
113	GEN WB31K0023
114	GEN WB62K0005
114	GEN WB62K0001
115	GEN WB06K0001
116	GEN WB02K0016
117	GEN WB02K0017
118	WB14K4 GE Left Slide Glider
118	WB14K3 GE Oven Right Side Glide
119	WB14K5 GE Oven Hinge Pin
120	GEN WB01K0009
121	WB1K5119 GE Oven Screw
125	GEN WB49K0010
133	GEN WB01K0022
135	GEN WB37K0010
200	WB48T10095 GE Oven Rack
201	GEN WB48K0002
202	GEN WB49K0002
203	GEN WB18K0001
204	WZ4X345D GE Screw Package 12 C92
205	GEN WB34K0007
206	WR01X10065 GE Screw
207	WB2K36 GE Oven Clamp Cable
208	WB63K20 GE Ran Back
209	GEN WB63K0011
209	GEN WB63K0012
210	GEN WB53K0005
211	WB1K5 GE Oven Screw 8-18 X B97
212	WB1K2 GE Oven Speednut
213	WB1K3 GE Oven Speed Nut
214	WB19K13 GE Oven Safety Valve
215	GEN WB02K0007
216	GEN WB01K0006
217	GEN WB16K0001
218	WB2X9154 GE Oven Igniter with 8" Leads
219	FLAME SPREADER
220	GEN WB02K0008
221	WB02K10073 GE Oven Clip Capillary
222	GEN WB10K0004
223	GEN WB02X6195
224	RING RETAINING
225	GEN WB34K0002
226	GEN WB02K0011
227	GEN WB09K0004
228	GEN WB02X7066
229	GEN WB08K0001
230	GEN WB08K0002
231	GEN WB02K0012
232	GEN WB34K0004
232	GEN WB34K0003
233	GEN WB24K0002
234	GEN WB07K0002
235	RANGE ONLY 40W 120V APPL BULB
236	GEN WB02K0022
237	GEN WB28K0006
238	GEN WB02K0023
239	GEN WB63K0001
240	GEN WB63K0002
240	WB63K3 GE Oven Panel Side Broil
241	RANGE BOTTOM
242	GEN WB63K0005
243	GEN WB63K0006
243	GEN WB63K0007
244	GEN WB02K0001
245	GEN WB02X7701
246	GEN WB63K0014
247	GEN WB53K0009
248	GEN WB53K0007
249	GEN WB53K0008
250	GEN WB53K0006
251	WB2K3 GE Angle Support
252	GEN WB10K0001
253	WB2K4 GE Cover Accessory Spring
254	GEN WB10K0002
254	GEN WB10K0003
255	WB2K5 GE Oven Broiler Stop
256	GEN WB32K0001
257	GEN WB38K0001
258	WB38K2 GE Range Vent Brace
259	GEN WB39K0001
259	GEN WB39K0002
260	WB32K2 GE Oven Gasket Seal
261	GEN WB35K0001
262	WB35K16 GE Oven Back Insulation
297	WB1K5062 GE Oven Screw
300	WB39K6 GE Oven Broil Weld
301	WB10K6 GE Oven Broil Hinge
301	WB10K5 GE Broil Oven Hinge
302	WB1K7 GE Oven Broiler Pin
303	GEN WB39K0008
303	GEN WB39K0007
304	WB39K9 GE Oven Broiler Slide
305	GEN WB09K0002
305	WB9K3 GE Oven Broil Spring
306	UNKNOWN
306	GEN WB39K0013
306	GEN WB39K0014
307	GEN WB39K0005
308	WB15K1 GE Oven Broil Handle
309	WASHER
310	WB2K14 GE Oven Spacer
311	WB2K15 GE Oven Grate Bumper
312	WB1X119D GE Oven Range Washer
313	GEN WB01K0016
314	GLASS DOOR (BLK)
315	GEN WB55K0006
316	GEN WB15K0007
317	GEN WB07K0007
318	WB35X29720 GE Oven Door Gasket
319	GEN WB55K0003
320	GEN WB02K0019
321	WB1X5731D GE Oven Nut Package of 12
322	GEN WB55K0005
322	GEN WB55K0004
323	GEN WB07K0008
324	GEN WB07K0009
325	GEN WB07K0010
326	GEN WB02X6574
327	WB01K10093 GE Oven Speednut
328	SCR 8-22 BTHW 9/16 S HLT
329	WB1X558D GE Oven Screw Package
331	GEN WB35K0003
332	GEN WB35K0005
338	WB56K5 GE Oven Crystal Wind
339	WB56K10032 GE Oven Guard Insulation Assembly
32767	GEN 31-0905
32767	WB2K20 GE Oven Bracket Assembly
32767	GEN 39-4681
