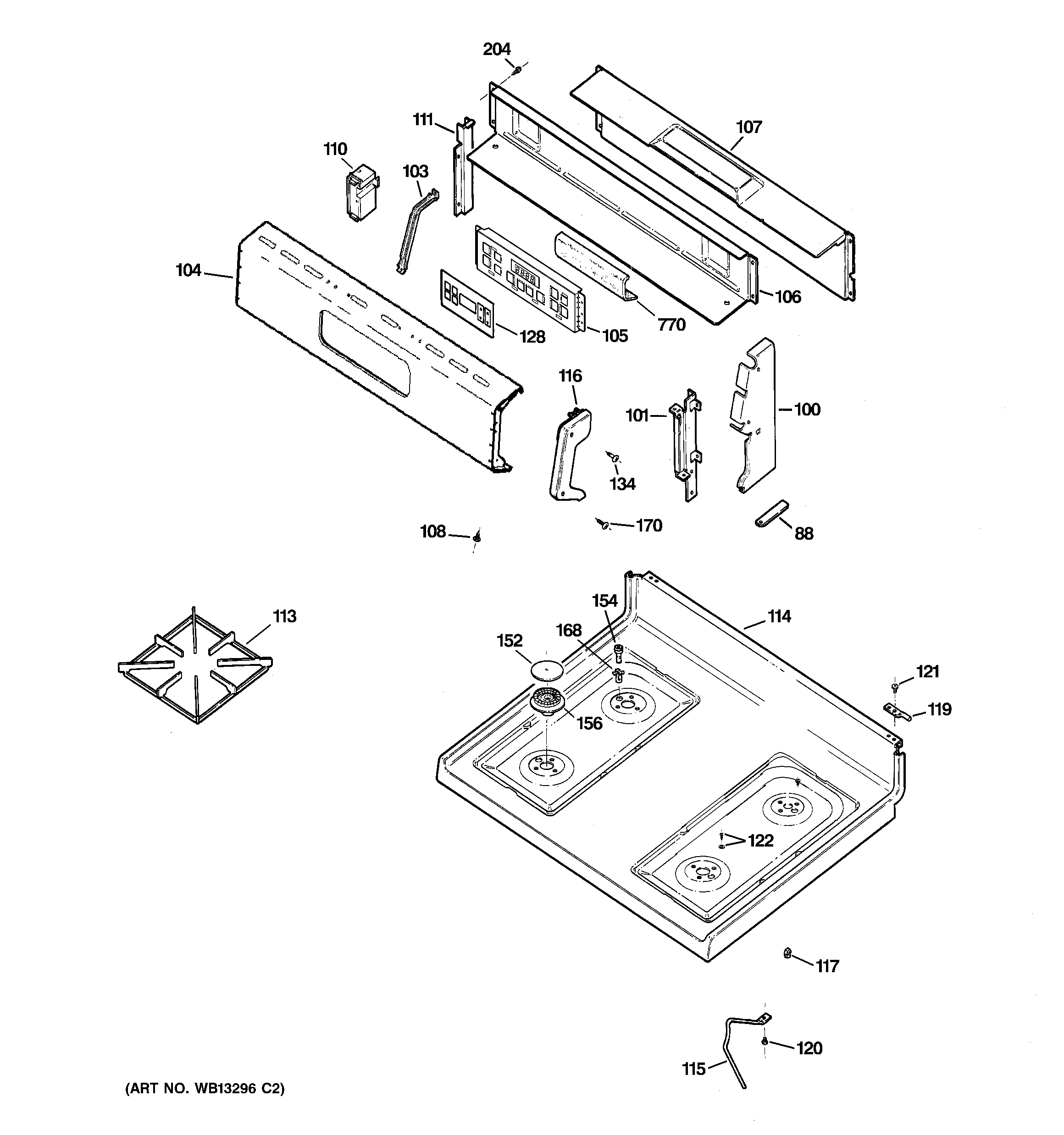

RGB735WEL8WW CONTROL PANEL & COOKTOP

RGB735WEL8WW CONTROL PANEL & COOKTOP

Written by

in

RGB735WEL8WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K0085
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10005
104GEN WB36K10395
105WB27K10355 GE Oven Electronic Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
110GEN WB18K10039
111GEN WB34K0005
113WB31K10017 GE Oven Grate
114GEN WB62K10046
115WB2K91 GE Oven Top Support
116WB07K10007 GE Oven Endcap Left
116WB07K10005 GE Oven Right Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128WB27K10170 GE Oven Overlay T09-B HP
134GEN WB01K10004
152WB29K10004 GE Oven Gray Burner Cap
154GEN WB13K10014
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
