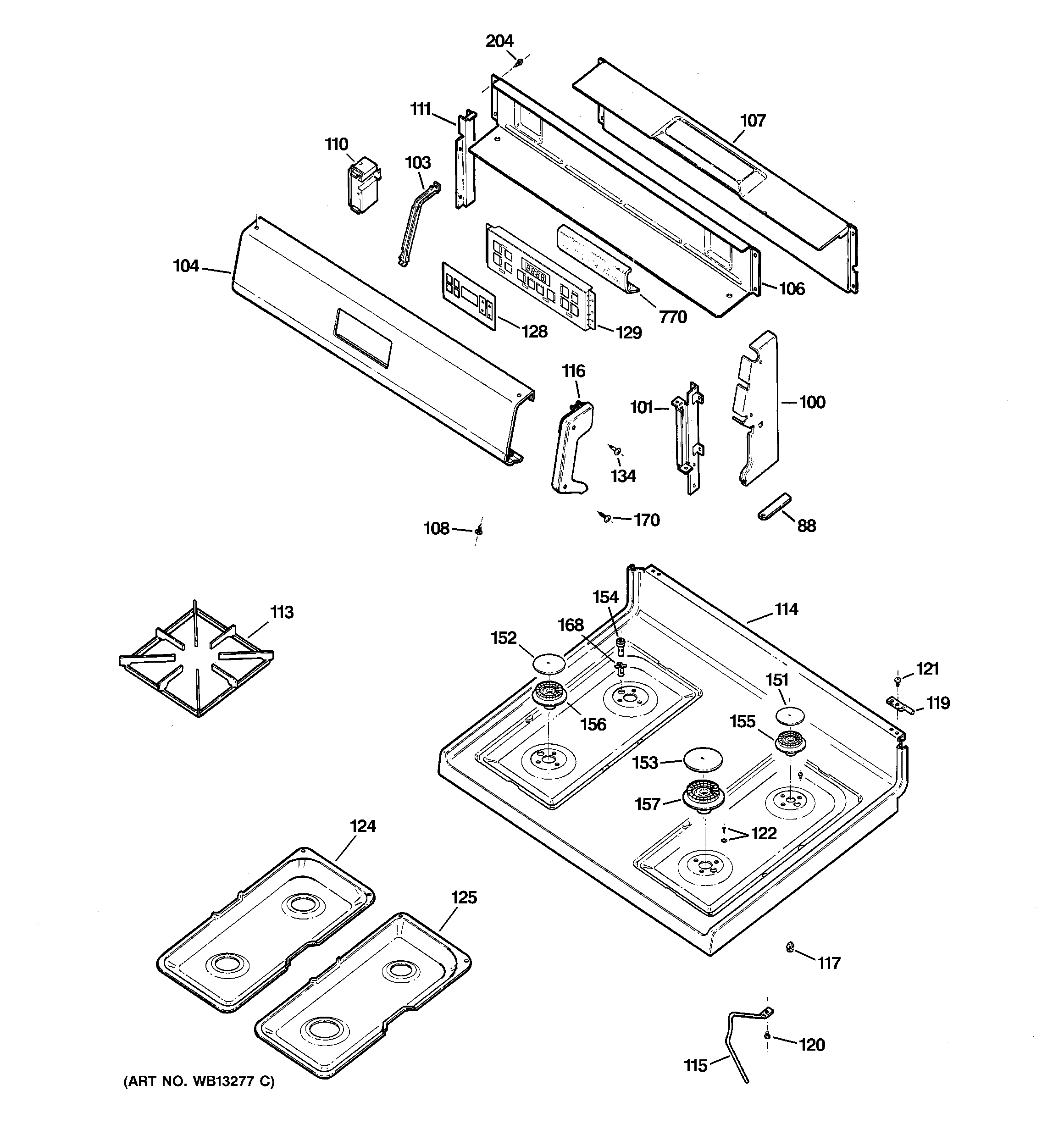

RGB740BEHACT CONTROL PANEL & COOKTOP

RGB740BEHACT CONTROL PANEL & COOKTOP

Written by

in

RGB740BEHACT CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
88PAD
100GEN WB07K10115
100GEN WB07K10116
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10394
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB1X5364 GE Oven Mounting Screw
110WB13X42446 GE Spark Module Replacement Kit
110WB18K10042 GE Oven Harness Module
111GEN WB18K10039
111GEN WB34K0005
113WB31K10016 GE Oven Grate Black
114COOKTOP (BSQT)
115WB2K91 GE Oven Top Support
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10010 GE Oven Double Burner Drip Pan Black
125WB34K10009 GE Oven Double Burner Drip Pan
128WB27K10118 GE Oven Overlay
129WB27K10355 GE Oven Electronic Control Board
134GEN WB01K10003
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
