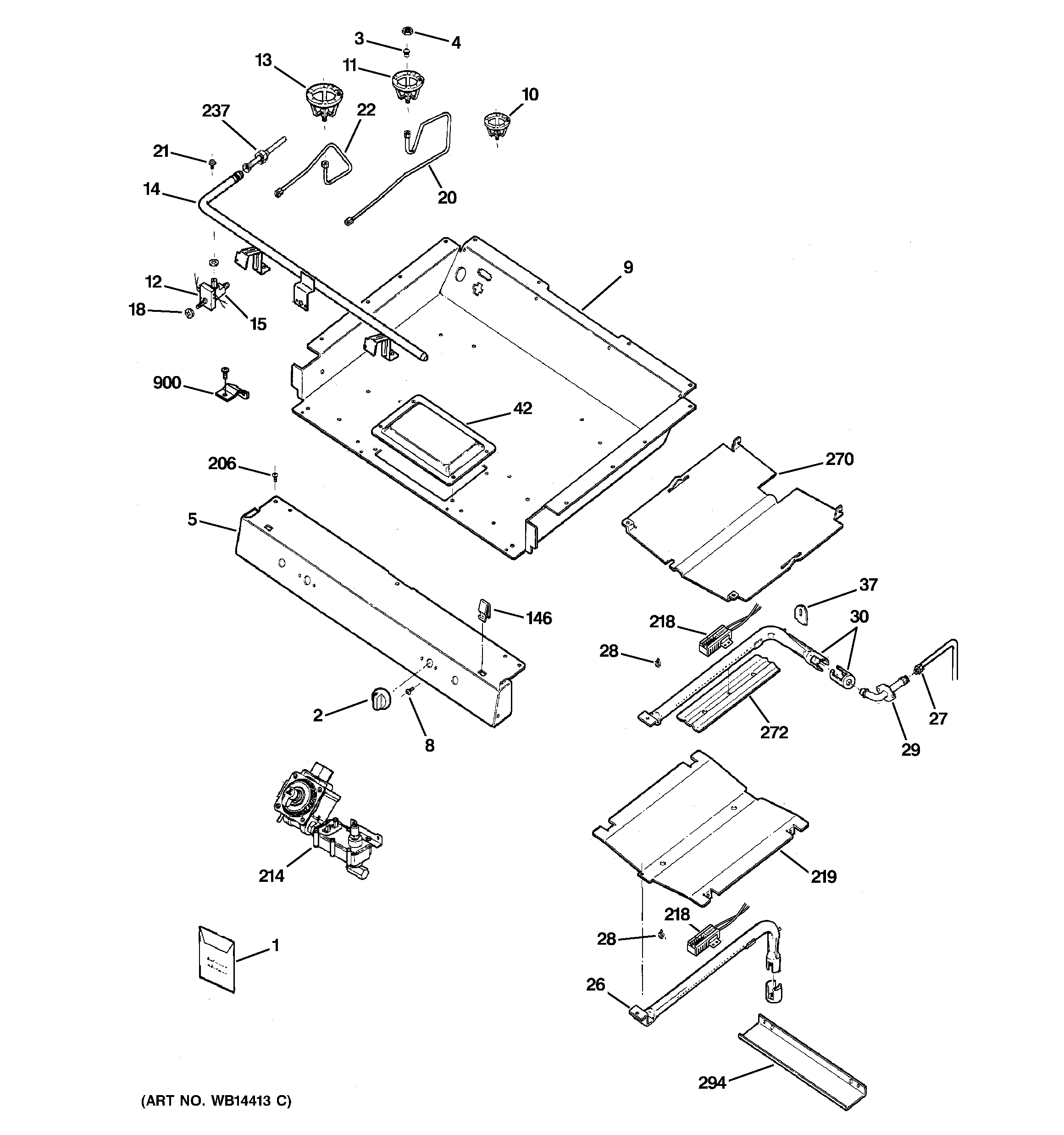

RGB740BEHCWH GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21257
1	GEN 49-85132
1	WB28K10556 GE Range Gas Valve Conversion Kit
2	WB03K10035 GE Oven Top Burner Knob
3	WB28K10032 GE Oven LP Orifice
3	WB28K10031 GE Oven Orifice
3	WB28K10023 GE Oven Orifice
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10766
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10024
12	GEN WB24K10023
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	GEN WB28K10425
15	VALVE BURNER 270
15	WB21K10099 GE Oven Burner Valve
15	GEN WB28K10397
18	WB2K24 GE Oven Valve Cover
20	WB28K10187 GE Oven Rear Orifice Holder
20	WB28K10188 GE Oven Rear Orifice H R 150N 9500
21	GEN WB01K10071
22	WB28K10190 GE Oven Left Front Orifice
22	WB28K10189 GE Oven Front Orifice Holder
26	GEN WB16K0022
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10008
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10051 GE Oven Control Valve Assembly SIC D.
218	WB2X9154 GE Oven Igniter with 8" Leads
219	OVEN DEFLECTOR
237	GEN WB28K10477
237	WB28X24772 GE Oven Gas Tube Connector
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
900	WB02K10297 GE Oven Valve Bracket
