RGB740GES1WH

RGB740GES1WH

Written by

in

RGB740GES1WH

Products

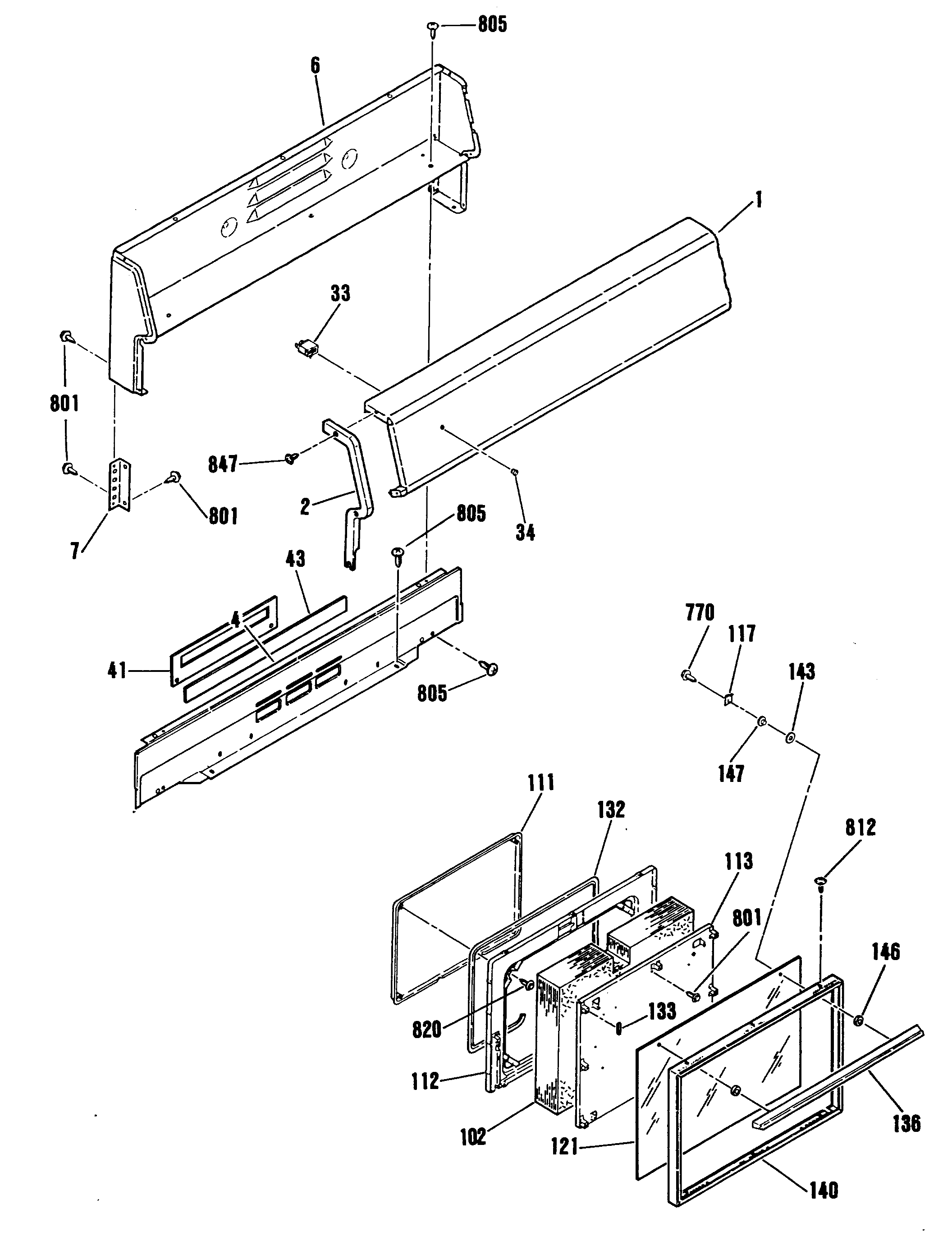

Position	Product
1	GEN WB36K5329
2	GEN WB07X1643
2	GEN WB07X1644
4	GEN WB37K5029
6	GEN WB37K5027
7	GEN WB07X1647
20	GEN WB02K5200
29	GEN WB03K5097
33	WB25T10039 GE Oven Light Indicator
34	LENS
41	GEN WB35K5091
43	GEN WB35K5090
44	UNKNOWN
51	GEN WB62K5063
52	GEN WB36K5330
61	GEN WB63X0411
74	GEN WB31K5027
88	GEN WB03K5068
89	MANIF PANEL BRACKET-LT
89	MANIF PANEL BRACKET-RT
90	SUPPORT ROD
91	GEN WB14K5004
91	GEN WB14K5005
93	GEN WB02X9723
102	OV DOOR INSULATION
111	UNKNOWN
112	UNKNOWN
113	UNKNOWN
117	OV DR GLASS RETAINER
121	OV DOOR OUTER GLASS
132	WB2K5319 GE Oven Door Gasket
133	FELT WASHER
136	DOOR HANDLE
140	UNKNOWN
143	FIBER WASHER
146	DOOR HANDLE SPACER-BLACK
147	UNKNOWN
151	DOOR LATCH ASM
156	GEN WB02X9406
165	GEN WB24K5075
166	GEN WB02X9403
171	SWITCH INSULATOR
172	GEN WB35K5028
175	LOCK BOX COVER
178	LATCH ASM INSULATION
190	HANDLE EXTENSION
191	LATCH HANDLE
192	GEN WB03K5154
193	KNOB CLIP
195	LOCK SPRING
201	GEN WB53X0276
202	FRONT FRAME
203	GEN WB63K5140
210	GEN WB63X0335
211	GEN WB02X9728
212	INSULATION RETAINER
214	GEN WB38X0109
215	GEN WB02X9727
216	GEN WB02X9141
219	GEN WB34M0006
220	FLUE DEFLECTOR SHIELD
221	GEN WB63K5194
221	BODY SIDE-WHITE
222	GEN WB56K5053
224	GEN WB02M0011
228	FLUE DEFLECTOR GASKET
230	GEN WB02X9726
231	INSULATION-TOP SIDE
232	INSULATION BACK BOTTOM
233	GEN WB02X9140
235	GEN WB02X9394
239	WB2X9189 GE Oven Plug – REC
240	GEN WB34K5114
241	GEN WB48X0208
246	WB48X10056 GE Broil Pan Set, Large Porcelain
252	GEN WB02K5202
258	OV LAMP LENS GASKET
260	GEN WB02K5337
266	GEN WB02K5271
267	GEN WB02X5199
268	WB2X7909 GE Oven Anti-Tip Kit
272	BODY SIDE SUPPORT-LT
272	BODY SIDE SUPPORT-RT
281	WB14X103 GE Range Oven Left Door Hinge
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
286	GEN WB09X0265
296	LEG LEVELER
301	GEN WB28K5016
302	GEN WB28K5015
303	GEN WB28K5025
307	TOP BURNER ASM-FRONT
308	TOP BURNER ASM-REAR
309	GEN WB28X0089
310	BURNER BOX BOTTOM
311	GEN WB28X0088
312	GEN WB21X0465
313	GEN WB20K5019
314	VALVE-TOP BURNER
315	CONTROL VALVE
316	WB2X9154 GE Oven Igniter with 8" Leads
317	IGNITER BRACKET
317	311689 GE Ignition Bracket
317	IGNITER BRACKET-BROIL
318	SPARK IGN MODULE
319	VALVE–SHUT-OFF
320	GEN WB34K5146
321	GEN WB34M0005
322	UNKNOWN
322	UNKNOWN
323	VALVE SWITCH
337	TOP BURNER SUPPORT
346	GEN WB02X9156
347	WB2X9163 GE Plate
348	ORIFICE FITTING SHIELD
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
356	GEN WB34K5112
358	GEN WB34K5113
359	GEN WB11K5010
366	VALVE GASKET
366	GASKET
372	GEN WB06K5015
373	OVEN BURNER BAFFLE
374	BROILER BURNER BAFFLE-LO
374	BRO BRN BAFFLE -UPPER
380	WB14X115 GE Oven Latch
382	GEN WB34K5147
391	INSULATION RETAINER
400	GEN WB28K5011
554	WB8K5039 GE Range Power Cord
770	WB1K5072 GE Oven Screw
801	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
805	GEN WB01X1113
807	WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809	WB1X1137 GE Oven Screw
812	WB1K5191 GE Oven Zinc FL Screw
816	GEN WB01X1125
817	GEN WB01X1346
820	WB1X1424D GE Oven Screw Package
824	GEN WB01X1291
826	GEN WB01X1167
828	WB1X1141 GE Oven Screw 8-32
833	WB1X1131 GE Screw 6-32
838	GEN WB01X1121
839	AIR SHUTTER SCREW-OVEN
846	SCREW
847	WB1X1118 GE Oven Screw 6-32T
852	SCREW
856	WB1X1293 GE Oven Screw
861	GEN WB01X1307
862	GEN WB01X1178
901	GEN WB01K5106
902	GEN WB01K5107
904	GEN WB01X5550
909	WB1X1173 GE Rivet
922	MT STRIKE
927	WB1X119D GE Oven Range Washer
933	GEN WB01X1256
935	GEN WB01X1201
936	GEN WB02X9103
940	WB1X371D Package of 12 Ceramic Wire Connector
954	THERMOSTAT BULB RET CLIP
967	CLIP
968	GEN WB02X9393
979	SPACER
980	GEN WB01X1129
986	NUT
999	GEN 31-10007
999	GEN WB18K5171
999	GEN WB18K5447
999	GEN 31-13134
999	GEN WB18K5449
999	GEN 39-4727
999	GEN WB18K5448
