RGB745BEA4AD DOOR & DRAWER PARTS

RGB745BEA4AD DOOR & DRAWER PARTS

Written by

in

RGB745BEA4AD DOOR & DRAWER PARTS

Products

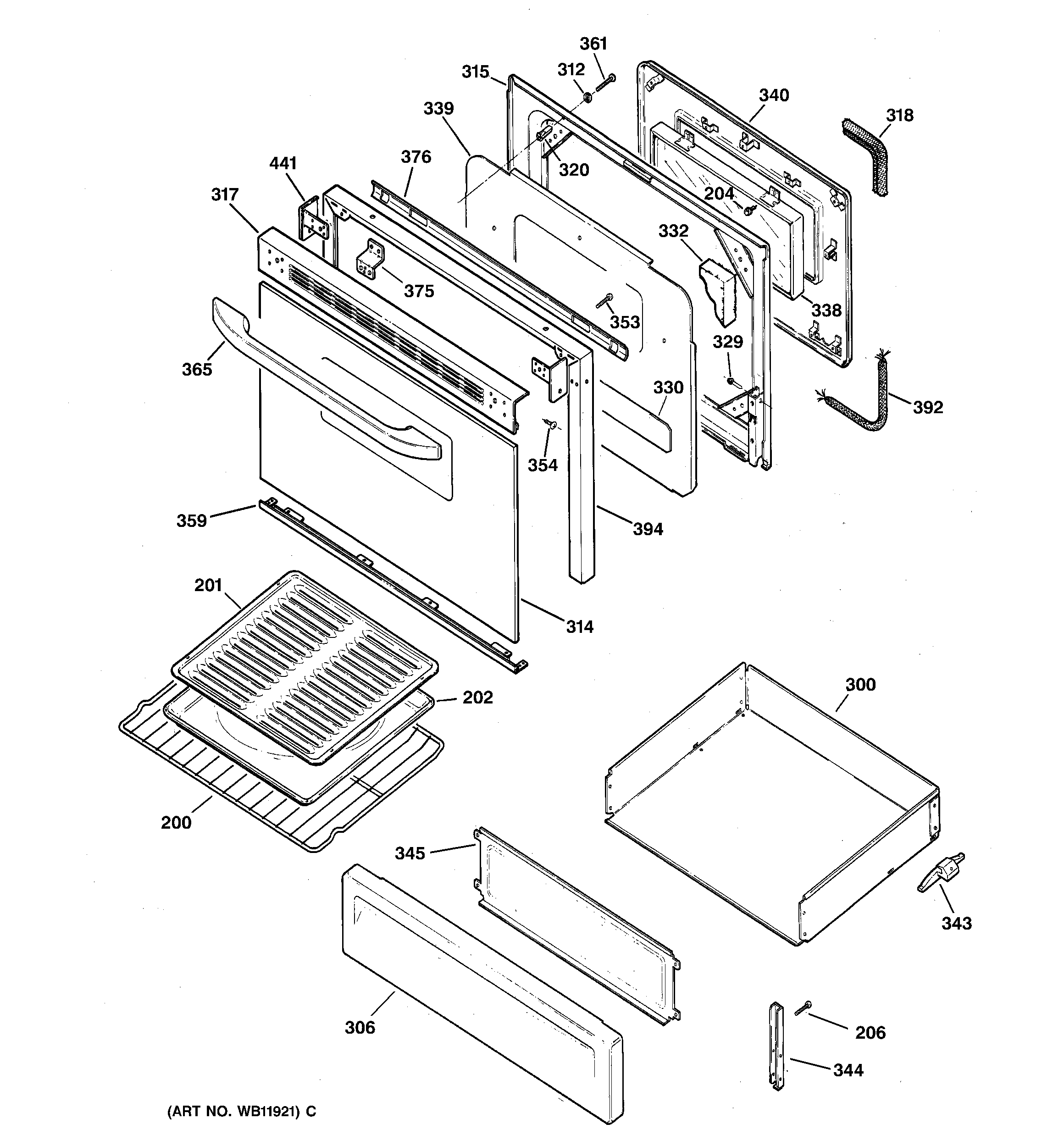

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10001
306GEN WB55K10002
312WB1X119D GE Oven Range Washer
314GEN WB57K0002
315GEN WB55K0025
317GEN WB07K10070
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
330GEN WB35K0022
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB35K10007
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
365WB15X10047 GE Range Oven Black Door Handle
375CLIP WINDOW
376WB35K23 GE Heater Deflector
392GEN WB04K0003
394GEN WB07K0265
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
