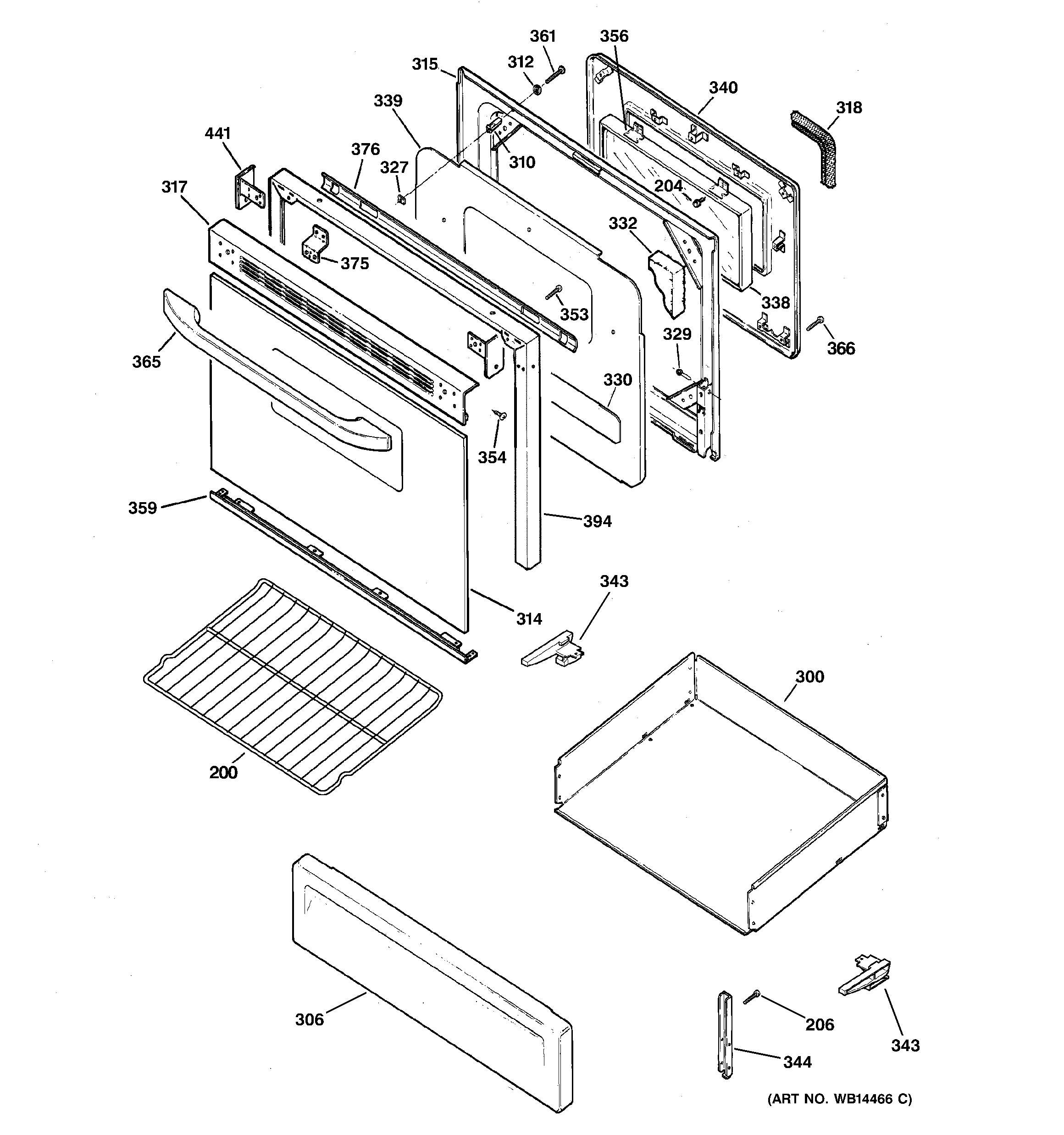

RGB745BEHDWH DOOR & DRAWER PARTS

RGB745BEHDWH DOOR & DRAWER PARTS

Written by

in

RGB745BEHDWH DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300GEN WB58K10004
306WB55K10001 GE Oven Drawer Panel (Black)
306GEN WB36K10164
306WB36K10033 GE Oven Drawer Panel (White)
310GEN WB02K10162
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
314GEN WB57K0002
315GEN WB55K10042
317WB35K10041 GE Oven Reflector
317WB07K10200 GE Oven Vent Trim Assembly
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29722 GE Oven Door Gasket Assembly
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0020
338GEN WB34K10088
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0065
365WB15X10047 GE Range Oven Black Door Handle
365WB15X10048 GE Oven Door Handle White
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
376WB35K23 GE Heater Deflector
394GEN WB07K0265
394GEN WB07K0268
441WB7K264 GE Oven Door Endcap
441WB7K266 GE Oven Door End Cap
441WB7K263 GE Oven Door Endcap
