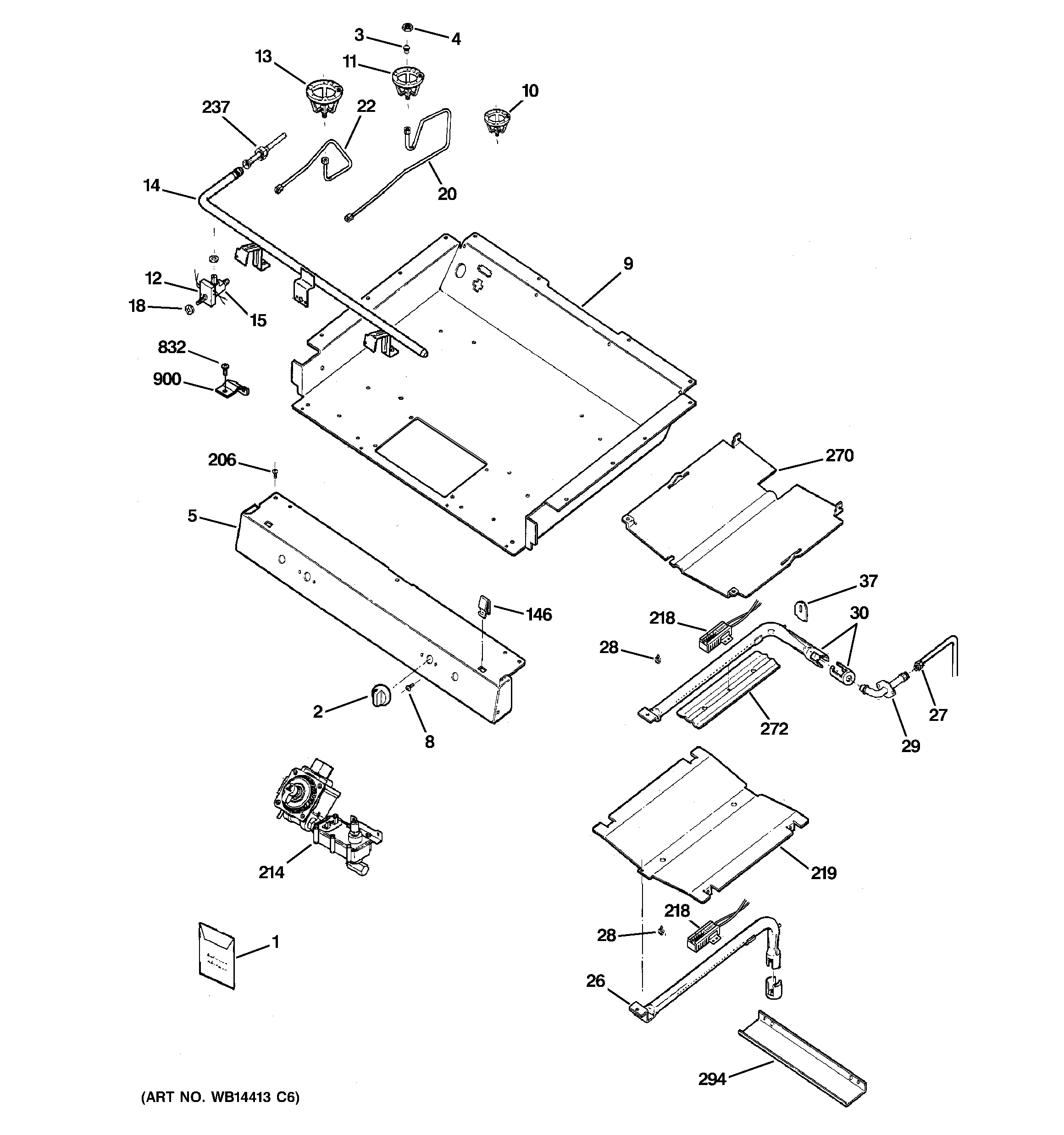

RGB745DEP1BB GAS & BURNER PARTS

RGB745DEP1BB GAS & BURNER PARTS

Written by

in

RGB745DEP1BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85132
1WB28K10556 GE Range Gas Valve Conversion Kit
1GEN 31-21441
1GEN 31-21391
2WB03K10035 GE Oven Top Burner Knob
2WB03K10034 GE Oven Burner Knob
3WB28K10023 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10032 GE Oven LP Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10766
5GEN WB36K10767
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10572
15VALVE BURNER 270
15VALVE BURNER 270 RR
15WB21K10099 GE Oven Burner Valve
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
22WB28K10190 GE Oven Left Front Orifice
22WB28K10189 GE Oven Front Orifice Holder
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10008
37WB34K14 GE Igniter Cover
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10051 GE Oven Control Valve Assembly SIC D.
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10297 GE Oven Valve Bracket
