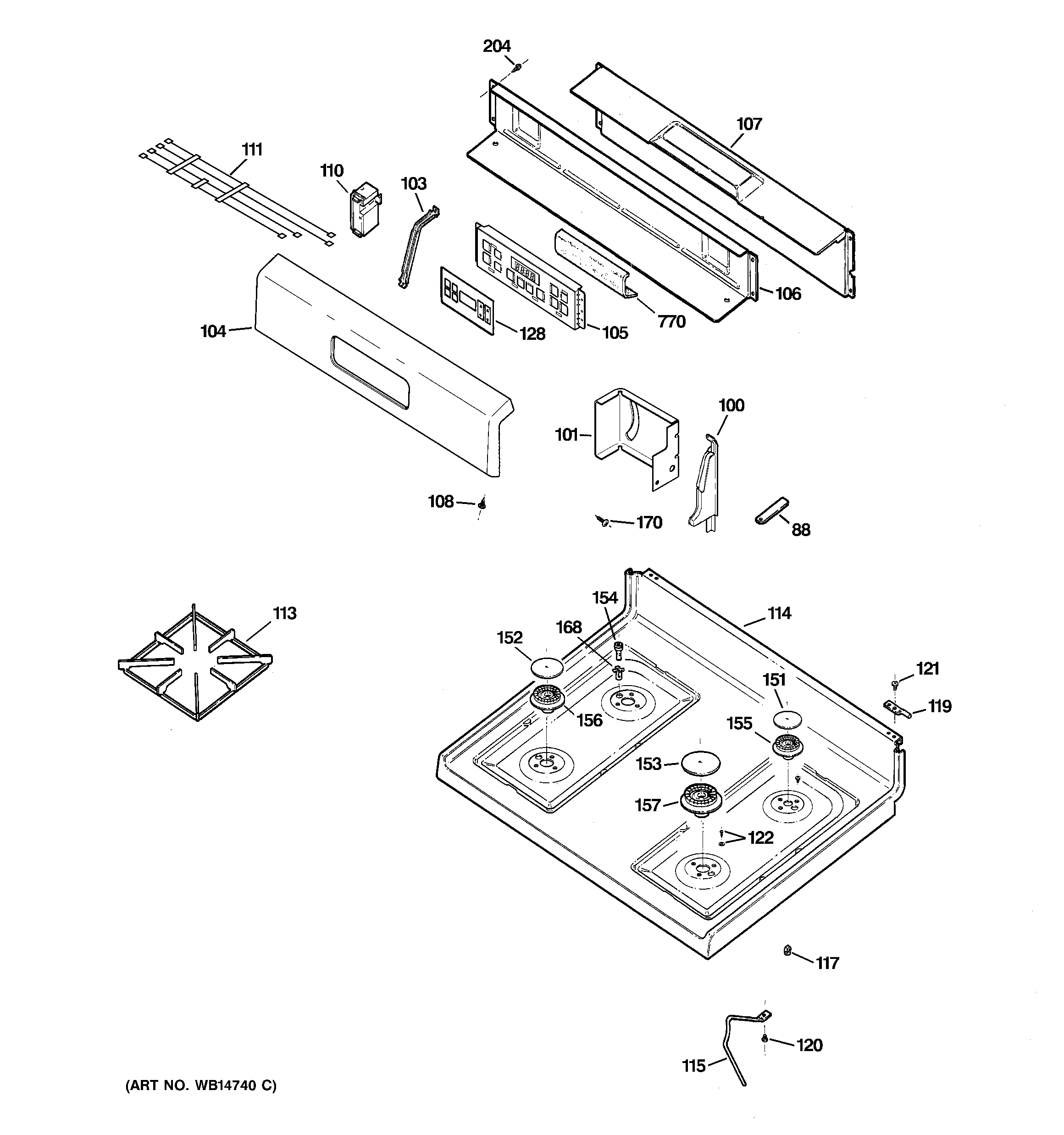

RGB745DEP1WW CONTROL PANEL & COOKTOP

Products

Position	Product
88	GEN WB02K0062
100	WB07K10194 GE Oven End Support Gloss Black
100	WB07K10193 GE Oven End Support Gloss Black
100	WB07K10195 GE Oven Right White End Support
100	WB07K10196 GE Oven Left End Support (White)
101	WB37K10004 GE Cooktop Left Bracket
101	WB37K10003 GE Cooktop Right Bracket
103	WB02K10074 GE Oven Control Bracket
104	GEN WB36K10851
104	GEN WB36K10852
105	WB27K10355 GE Oven Electronic Control Board
106	WB34K10003 GE Upper Back Oven Cover
107	GEN WB34K10062
108	WB1X5364 GE Oven Mounting Screw
110	WB13K10029 GE Oven Spark Module
111	GEN WB18K10039
113	WB31K10017 GE Oven Grate
113	WB31K10016 GE Oven Grate Black
114	COOKTOP BK
114	GEN WB62K10048
115	WB2K91 GE Oven Top Support
117	GEN WB02K0017
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
122	GEN WB01K10008
128	GEN WB27K10314
128	WB27K10170 GE Oven Overlay T09-B HP
151	WB29K10002 GE Range Oven Cooktop Small Burner Cap
151	WB29K10009 GE Oven Burner Cap
152	WB29K10004 GE Oven Gray Burner Cap
152	WB29K10001 GE Oven Burner Cap
153	WB29K10006 GE Oven Burner Cap
153	WB29K10007 GE Oven Burner Cap, Left
154	GEN WB13K10014
155	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156	WB16K10055 GE Oven Burner Base
157	BURNER 12K
168	WB01K10112 GE Range Oven Electrode Clip
170	GEN WB01X5716
204	WZ4X345D GE Screw Package 12 C92
204	WB1K5062 GE Oven Screw
770	WB35K10040 GE Oven Insulation Control
