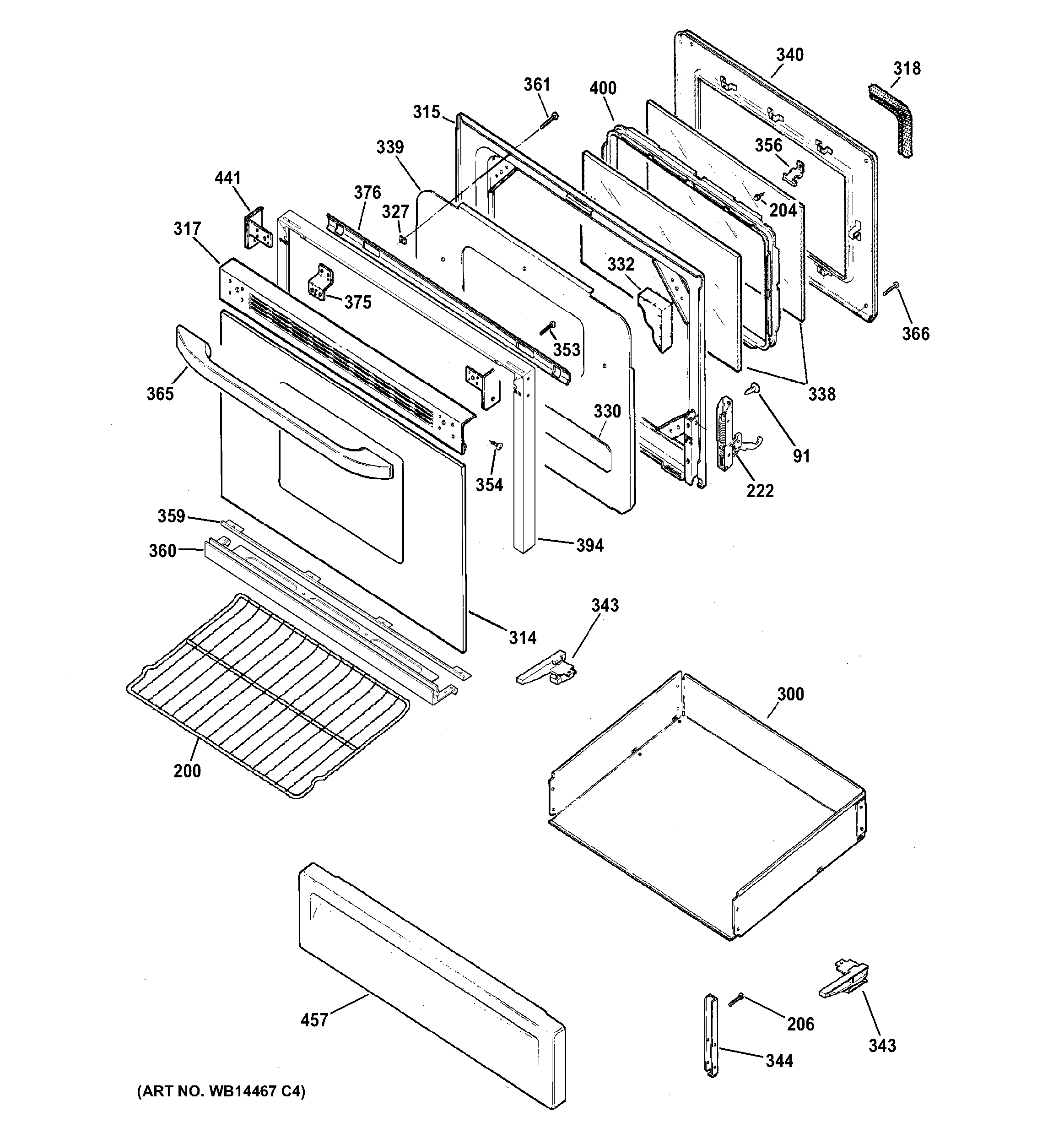

RGB745DEP6CT DOOR & DRAWER PARTS

RGB745DEP6CT DOOR & DRAWER PARTS

Written by

in

RGB745DEP6CT DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
314GEN WB57K0002
315WB56X21344 GE Door Weld Liner
317WB07K10200 GE Oven Vent Trim Assembly
318GEN WB04K10029
327WB01K10093 GE Oven Speednut
330GEN WB35K0022
332GEN WB35K10153
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
360WB07X20288 GE Oven Barrier Door
361GEN WB01K0065
365WB15X10047 GE Range Oven Black Door Handle
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
376WB35K23 GE Heater Deflector
394WB07X20355 GE Door Trim
400GEN WB34K10088
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
457GEN WB36K10164
