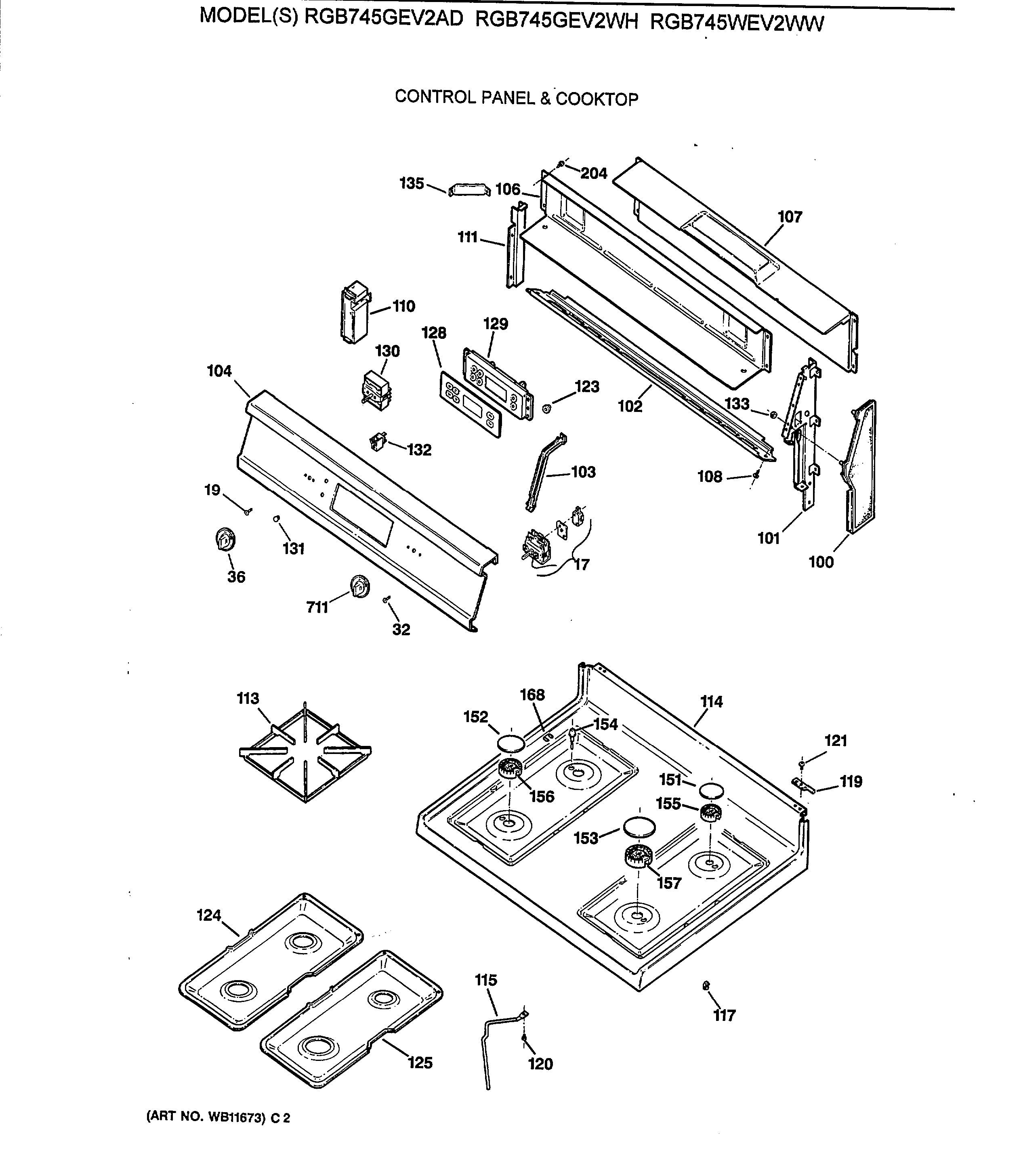

RGB745GEV2AD CONTROL PANEL & COOKTOP

Products

Position	Product
17	GEN WB20K0003
19	WB1K8 GE Oven Thermostat Screw
32	GEN WB01K0017
36	GEN WB03K0026
100	COVER END LEFT (BK)
100	COVER END RIGHT (BK)
101	GEN WB37K0012
101	GEN WB37K0011
102	GEN WB07K0005
103	GEN WB37K0016
104	GEN WB36K0088
106	GEN WB36K0017
107	GEN WB36K0002
108	WB1X5364 GE Oven Mounting Screw
110	HARNESS HV
110	GEN WB13K0025
111	GEN WB34K0005
113	GRATE FINGER (BLK)
114	GEN WB62K0027
115	WB2K91 GE Oven Top Support
117	GEN WB02K0017
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
123	GEN WB01K0082
124	GEN WB32K0010
125	GEN WB32K0009
128	GEN WB11K0024
129	GEN WB12K0020
130	GEN WB24K0005
131	WB25T10041 GE Oven Lens
132	LAMP PILOT
133	GEN WB01K0022
135	GEN WB37K0010
143	SCREW MTG END CAP
151	CAP BURNER SMALL (BK)
152	CAP BURNER MED (BK)
153	CAP BURNER LG (BK)
154	WB13K18 GE Oven Electrode
155	BURNER HEAD-SM
156	BURNER HEAD-MED
157	BURNER HEAD-LG
168	ELECTRODE CLIP
204	WB1K5062 GE Oven Screw
711	THERMOSTAT KNOB (BK)
752	WZ4X345D GE Screw Package 12 C92
