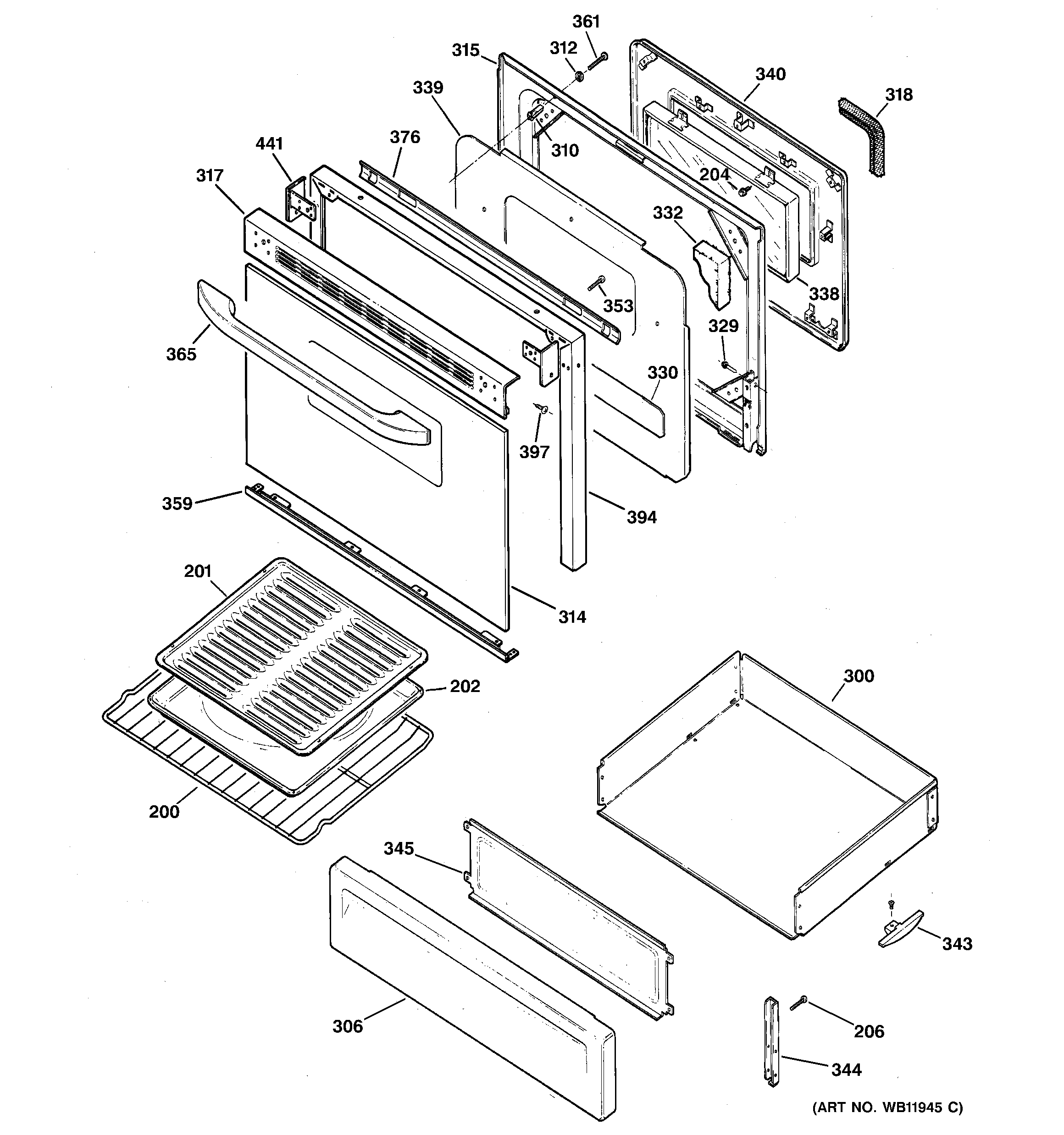

RGB745WEA5WW DOOR & DRAWER PARTS

RGB745WEA5WW DOOR & DRAWER PARTS

Written by

in

RGB745WEA5WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10001
306WB36K10033 GE Oven Drawer Panel (White)
310WB2K14 GE Oven Spacer
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K0025
317GEN WB07K10073
318WB4K1 GE Oven Gasket Door
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
330GEN WB35K0033
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB35K10007
353WB1K67 GE Oven Screw 8-22
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
365WB15X10048 GE Oven Door Handle White
376WB35K23 GE Heater Deflector
394GEN WB07K0268
397WB1K66 GE Screw
441WB7K266 GE Oven Door End Cap
