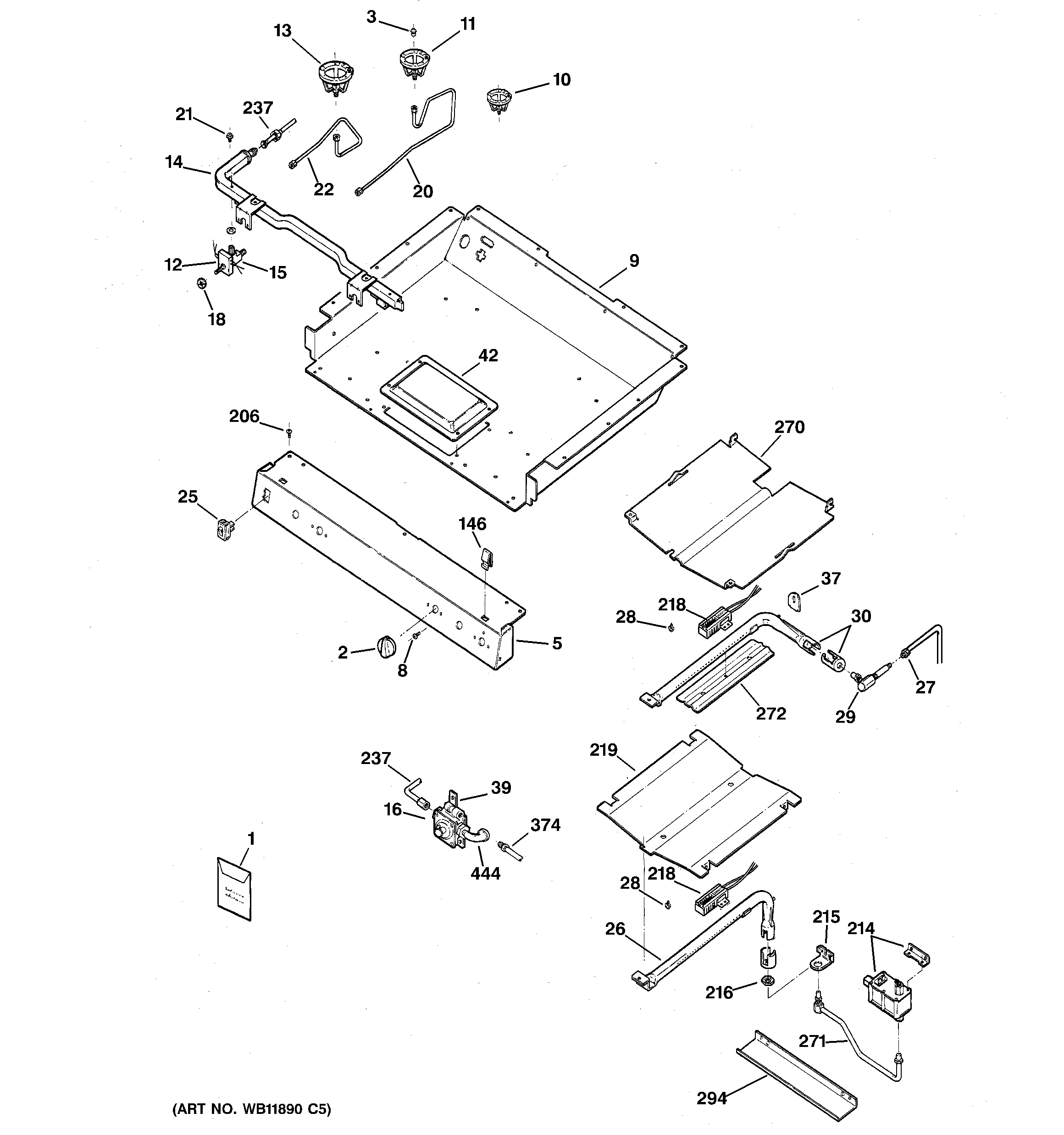

RGB745WEA8WW GAS & BURNER PARTS

Products

Position	Product
1	GEN WB28K10045
1	WB2K20 GE Oven Bracket Assembly
1	GEN 31-21044
1	GEN 49-85033
2	GEN WB03K10051
3	WB28K10031 GE Oven Orifice
3	WB28K10030 GE Oven Natural Gas Orifice
3	WB28K10023 GE Oven Orifice
3	ORIFICE-NG MED 1.50MM
3	WB28K10029 GE Oven Natural Gas Orifice
3	WB28K10032 GE Oven LP Orifice
5	GEN WB36K10107
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K0023
10	GEN WB02K10007
11	GEN WB02K10006
12	GEN WB24K10003
13	GEN WB02K10008
14	GEN WB28K10028
15	GEN WB21K0020
15	GEN WB21K0021
15	WB21K12 GE Oven Burner Control Valve
16	GEN WB19K10001
18	WB2K24 GE Oven Valve Cover
20	GEN WB28K10026
20	GEN WB28K10027
21	WB1K83 GE Oven Screw
22	WB28K10024 GE Oven Burner Tube
22	WB28K10025 GE Gas Range Burner Tube
25	WB24K5022 GE Oven Rocker Switch
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	GEN WB28K0055
28	WB1X1293 GE Oven Screw
29	GEN WB28K10019
29	GEN WB28K10018
30	GEN WB16K10004
37	WB34K14 GE Igniter Cover
39	GEN WB02K0088
42	GEN WB63K0022
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K36 GE Oven Control Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	GEN WB28K10021
270	DEFLECTOR
271	GEN WB28K0202
271	GEN WB28K0060
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K0019
374	GEN WB28K0150
444	GEN WB28K0061
