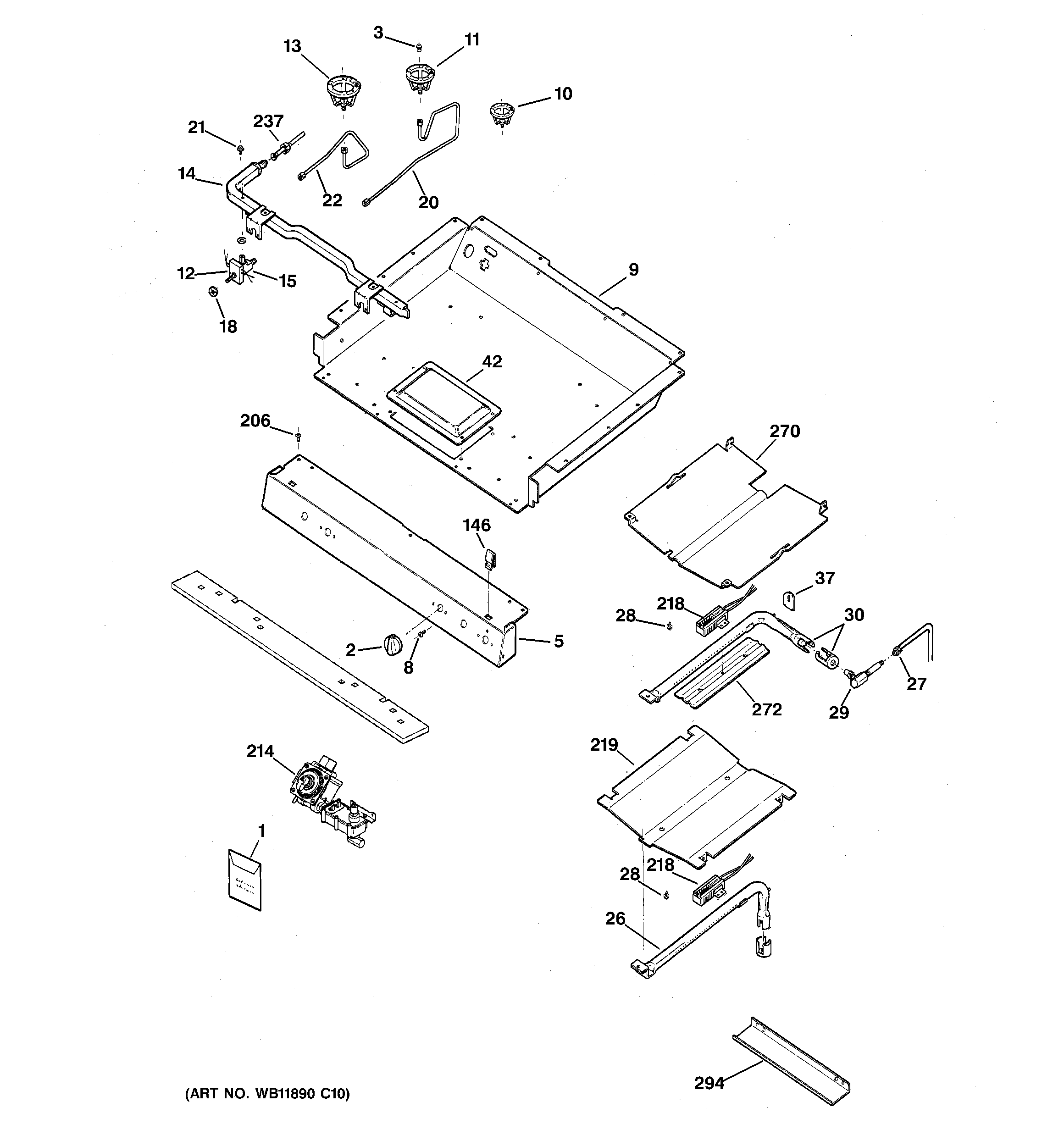

RGB745WEH1WW GAS & BURNER PARTS

Products

Position	Product
1	WB28K10556 GE Range Gas Valve Conversion Kit
1	GEN 31-21118
1	GEN 49-85042
2	WB03K10034 GE Oven Burner Knob
3	WB28K10032 GE Oven LP Orifice
3	ORIFICE-NG MED 1.50MM
3	WB28K10031 GE Oven Orifice
3	WB28K10030 GE Oven Natural Gas Orifice
3	WB28K10029 GE Oven Natural Gas Orifice
3	WB28K10023 GE Oven Orifice
5	GEN WB36K10372
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10037
10	GEN WB02K10007
11	GEN WB02K10006
12	GEN WB24K10022
13	GEN WB02K10008
14	GEN WB28K10028
15	GEN WB21K0020
15	GEN WB21K0021
15	WB21K12 GE Oven Burner Control Valve
18	WB2K24 GE Oven Valve Cover
20	GEN WB28K10026
20	GEN WB28K10027
21	WB1K83 GE Oven Screw
22	WB28K10025 GE Gas Range Burner Tube
22	WB28K10024 GE Oven Burner Tube
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K0030
30	GEN WB16K10004
37	WB34K14 GE Igniter Cover
42	GEN WB63K0022
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K10041 GE Oven Safety Valve and Regulator Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	GEN WB28K10169
270	DEFLECTOR
272	WB34K10 GE Oven Broil Shield
294	GEN WB63K10040
