RGB745WET1WW

RGB745WET1WW

Written by

in

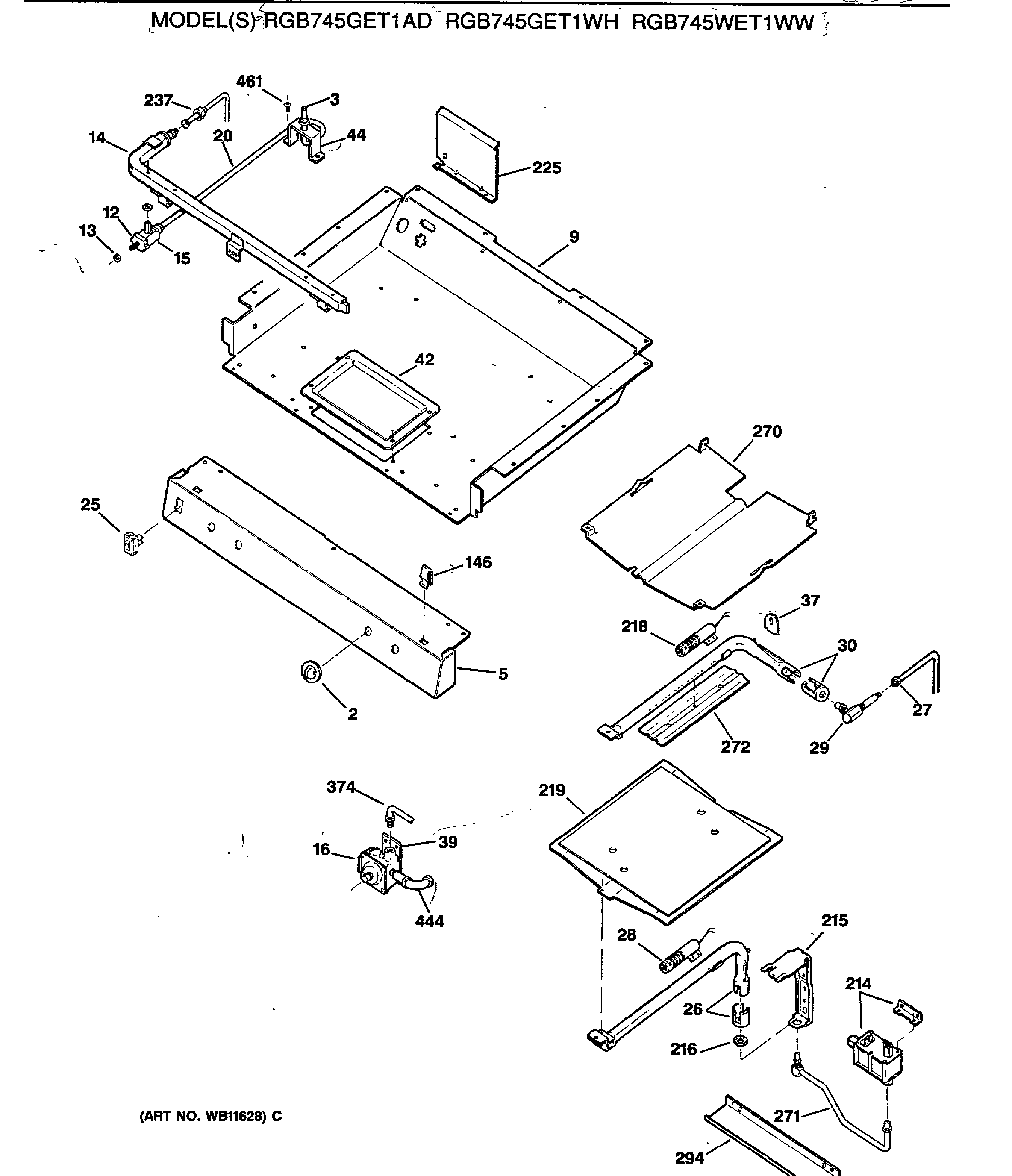

RGB745WET1WW

Products

Position	Product
2	GEN WB03K0094
3	GEN WB28K0086
3	GEN WB28K0023
3	GEN WB28K0019
3	GEN WB28K0022
3	GEN WB28K0087
5	GEN WB36K0086
6	GEN WB02K0009
9	GEN WB63K0023
12	GEN WB24K0014
13	WB2K24 GE Oven Valve Cover
14	GEN WB28K0065
15	GEN WB21K0014
15	GEN WB21K0018
16	GEN WB19K0015
17	GEN WB20K0003
19	WB1K8 GE Oven Thermostat Screw
20	ORIFICE HLDR LEFT FRONT
20	ORF HOLDER RIGHT REAR
20	ORF HOLDER LEFT REAR
20	ORIFICE HLDR RHT FRONT
25	WB24K5022 GE Oven Rocker Switch
26	GEN WB16K0006
27	GEN WB28K0055
28	WB1X1293 GE Oven Screw
28	WB2X9154 GE Oven Igniter with 8" Leads
29	GEN WB28K0030
30	GEN WB16K0008
32	GEN WB01K0017
36	GEN WB03K0101
37	WB34K14 GE Igniter Cover
39	GEN WB02K0047
42	GEN WB63K0022
44	GEN WB02K0049
46	WB29K27 GE Oven Surface Burner Ignition
47	GEN WB29K0032
48	GEN WB29K0025
49	GEN WB29K0026
51	CAP MEDALION LG (GRAY)
52	CAP MEDALION SM (GRAY)
100	GEN WB07K0031
100	GEN WB07K0032
101	GEN WB37K0012
101	GEN WB37K0011
102	GEN WB07K0005
103	GEN WB37K0016
104	GEN WB36K0087
106	GEN WB36K0017
107	GEN WB36K0002
108	SCREW MTG END CAP
108	WB1X5364 GE Oven Mounting Screw
109	UNKNOWN
110	GEN WB13K0025
111	GEN WB34K0005
113	GRATE GRAY
114	GEN WB62K0010
115	GEN WB06K0008
117	GEN WB02K0017
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
125	GEN WB49K0013
125	GEN WB49K0014
128	GEN WB11K0025
129	GEN WB12K0020
130	GEN WB24K0005
131	WB25T10041 GE Oven Lens
132	LAMP PILOT
133	GEN WB01K0022
135	GEN WB37K0010
145	GEN WB01K0027
146	GEN WB02K0052
147	GEN WB01K0028
148	GEN WB01K0029
200	WB48T10095 GE Oven Rack
201	GEN WB48K0002
202	GEN WB49K0002
203	WB18K10036 GE Oven Line Cord
204	WB1K5062 GE Oven Screw
204	WZ4X345D GE Screw Package 12 C92
205	GEN WB34K0006
206	WR01X10065 GE Screw
207	WB2K36 GE Oven Clamp Cable
208	WB63K21 GE Back
209	GEN WB63K0033
210	GEN WB53K0005
211	WB1K5 GE Oven Screw 8-18 X B97
212	WB1K2 GE Oven Speednut
213	WB1K3 GE Oven Speed Nut
214	WB19K14 GE Oven Control Valve
215	GEN WB02K0007
216	GEN WB01K0006
219	GEN WB34K0008
220	GEN WB02K0008
221	WB02K10073 GE Oven Clip Capillary
222	WB10K12 GE Oven Hinge Assembly
223	GEN WB02X6195
224	RING RETAINING
225	GEN WB34K0002
226	GEN WB02K0011
227	GEN WB09K0005
228	GEN WB02X7066
229	GEN WB08K0001
230	GEN WB08K0002
231	GEN WB02K0012
234	GEN WB02K0066
235	RANGE ONLY 40W 120V APPL BULB
236	GEN WB02K0022
237	GEN WB28K0056
239	GEN WB63K0025
240	WB63K3 GE Oven Panel Side Broil
240	GEN WB63K0002
243	GEN WB63K0007
243	GEN WB63K0006
244	GEN WB02K0001
245	GEN WB02X7701
246	GEN WB63K0036
247	GEN WB53K0014
248	GEN WB53K0002
249	GEN WB53K0003
250	GEN WB53K0015
254	GEN WB01K0053
254	GEN WB10K0013
254	GEN WB10K0014
255	WB02K10158 GE Oven Drawer Support
256	GEN WB32K0001
257	GEN WB38K0001
258	WB38K2 GE Range Vent Brace
259	WB39K16 GE Oven Drawer Rail
260	WB32K2 GE Oven Gasket Seal
261	GEN WB35K0007
262	GEN WB35K0008
266	GEN WB01K0012
266	GEN WZ05X0124
270	GEN WB34K0009
271	GEN WB28K0060
272	WB34K10 GE Oven Broil Shield
273	GEN WB53K0012
273	GEN WB53K0011
274	GEN WB01K0044
275	WB36X192 GE Oven Light Cover
276	WB2K27 GE Oven Bail
277	GEN WB32K0005
278	GEN WB53K0018
279	GEN WB02K0042
280	GEN WB02K0029
281	GEN WB24K0015
282	RETAINER-INSULATION
283	WB02X21679 GE Oven Wire Clip
284	WB2K32 GE Oven Support Bracket
285	GEN WB15K0028
286	GEN WB03K0045
287	GEN WB53K0016
287	GEN WB53K0017
288	BRACE
289	WB34K10086 GE Oven Lower Heat Shield
290	GEN WB34K0012
291	WB63K16 GE Oven Bottom Guard
292	GEN WB63K0017
293	GEN WB63K0018
294	GEN WB63K0019
295	GEN WB38K0005
296	WB34K13 GE Oven B Panel Cover
298	GEN WB02K0037
300	GEN WB39K0021
306	GEN WB39K0013
308	GEN WB15K0017
309	WASHER
312	WB1X119D GE Oven Range Washer
313	GEN WB01K0016
314	WB57K3 GE Oven Outer Door Glass White
315	GEN WB55K0007
316	GEN WB15K0027
317	GEN WB07K0272
318	WB4K1 GE Oven Gasket Door
320	WB2K14 GE Oven Spacer
327	WB01K10093 GE Oven Speednut
329	WB1X558D GE Oven Screw Package
330	GEN WB35K0021
330	GEN WB35K0022
332	GEN WB35K0020
338	GEN WB56K0019
338	GEN WB04K0002
339	GUARD INSULATION
340	GEN WB55K0009
343	WB2K68 GE Oven Drawer Glide
344	WB39K20 GE Oven Mounting Bracket Drawer
345	GEN WB39K0022
353	WB1K67 GE Oven Screw 8-22
356	GEN WB02K0069
359	TRIM BOTTOM ASM
361	WB1K63 GE Oven Screw
366	SCREW
374	GEN WB28K0058
375	GEN WB02K0067
376	WB35K23 GE Heater Deflector
394	GEN WB07K0268
397	WB1K66 GE Screw
441	WB7K266 GE Oven Door End Cap
444	GEN WB28K0061
700	GEN WB02K0034
701	SHIELD SWITCH
702	GEN WB01K0024
703	BRACKET OVEN
708	COVER BACK PANEL SP
709	GEN WB08K0004
711	GEN WB03K0102
32767	GEN 39-4739
32767	WB2K20 GE Oven Bracket Assembly
32767	GEN 31-1368
