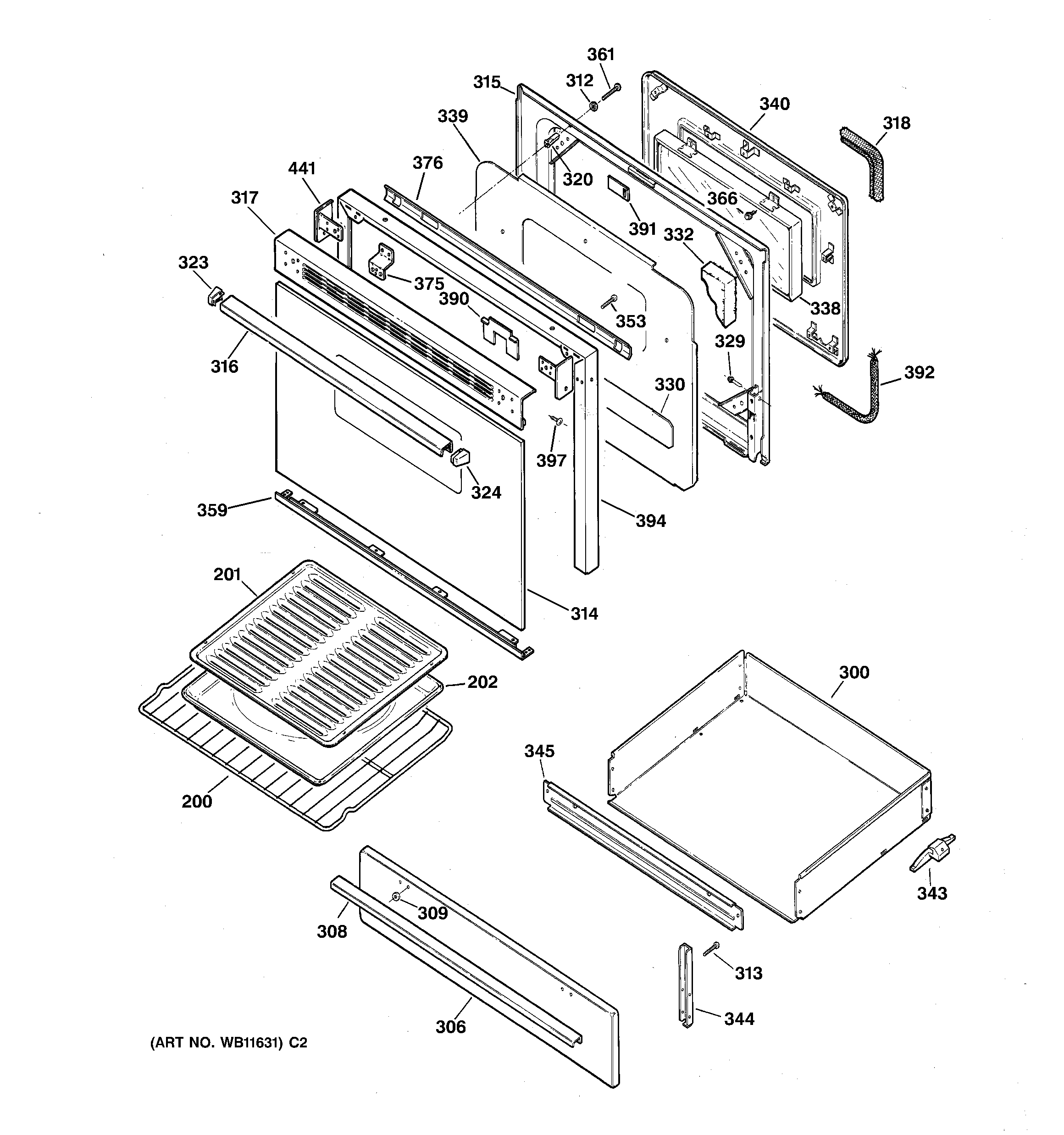

RGB745WEV3WW DOOR & DRAWER PARTS

RGB745WEV3WW DOOR & DRAWER PARTS

Written by

in

RGB745WEV3WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
300GEN WB39K0021
306GEN WB39K0013
308GEN WB15K0017
309WASHER
312WB1X119D GE Oven Range Washer
314PAD
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K0007
316GEN WB15K0025
317GEN WB07K0406
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
330GEN WB35K0021
332GEN WB35K0020
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
353WB1X5731D GE Oven Nut Package of 12
359TRIM BOTTOM ASM
361WB1K63 GE Oven Screw
366WB1X536 GE Oven Screw
375GEN WB02K0067
376WB35K23 GE Heater Deflector
390GEN WB34K0027
391GEN WB34K0026
392GEN WB04K0002
394GEN WB07K0268
397GEN WB07K5338
397GEN WB07K5339
397WB1K66 GE Screw
441WB7K266 GE Oven Door End Cap
