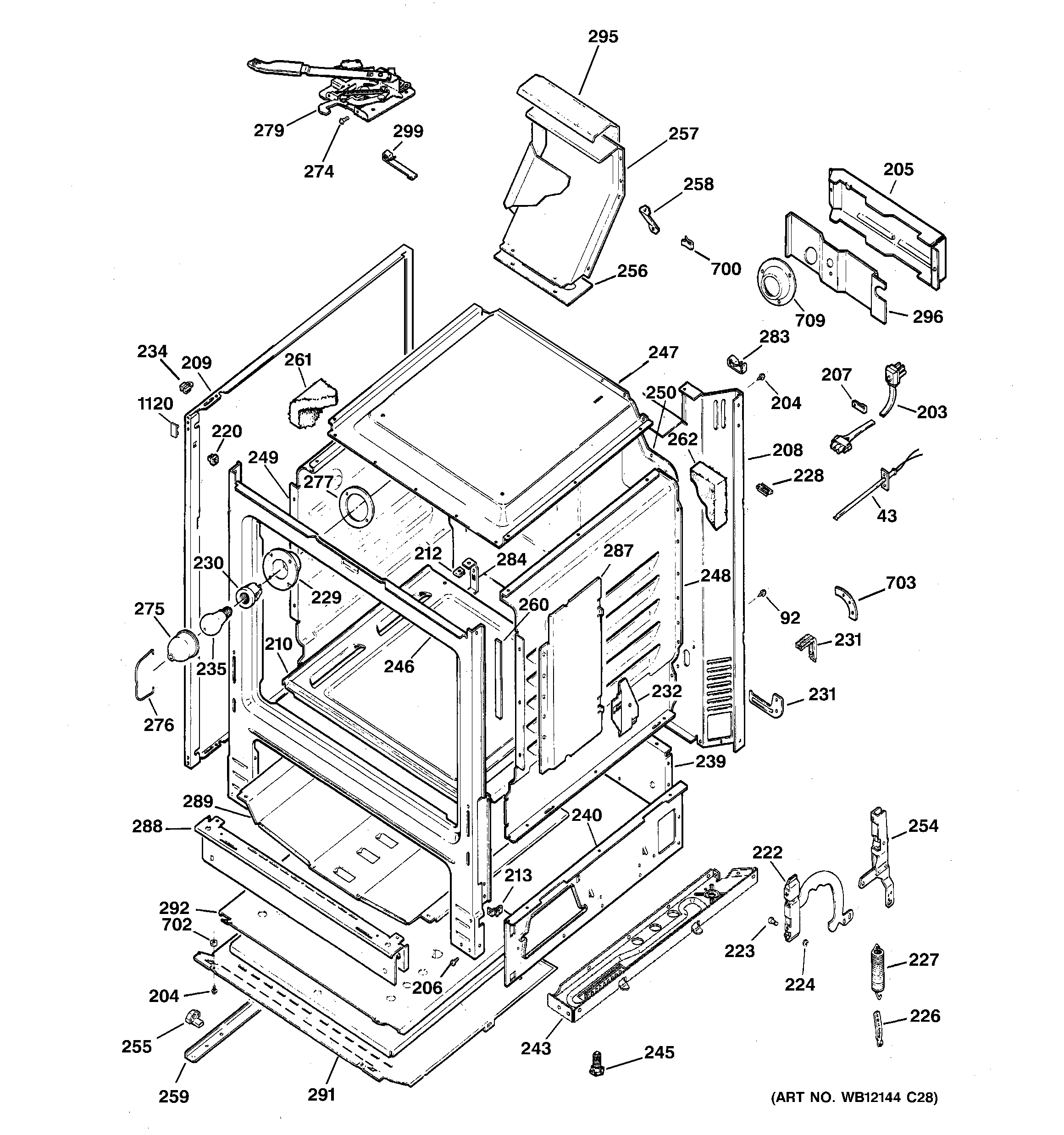

RGB746DEP5WW BODY PARTS

RGB746DEP5WW BODY PARTS

Written by

in

RGB746DEP5WW BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K10124
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10188
209WB63K10122 GE Oven Side Panel
210WB35X37973 GE Oven Bottom and Deflector Assembly
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239WB63K10203 GE Oven Rear Broil Panel
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
243GEN WB63K10230
243WB63K10231 GE Base Support
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10189
247WB53K10004 GE Oven Top
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250GEN WB53K10024
254SUPPORT ASM RIVET RT
254GEN WB01K0053
254SUPPORT ASM RIVET LF
255WB02K10163 GE Oven Drawer Support
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261WB35K10210 GE Oven Insulation Wrap
262GEN WB35K10161
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279GEN WB02K10140
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
295GEN WB35K10003
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
700RETAINER-INSULATION
702WB1K45 GE Oven Screw and Washer Assembly
703BRACKET OVEN
1120WB02K10179 GE Range Bumper
