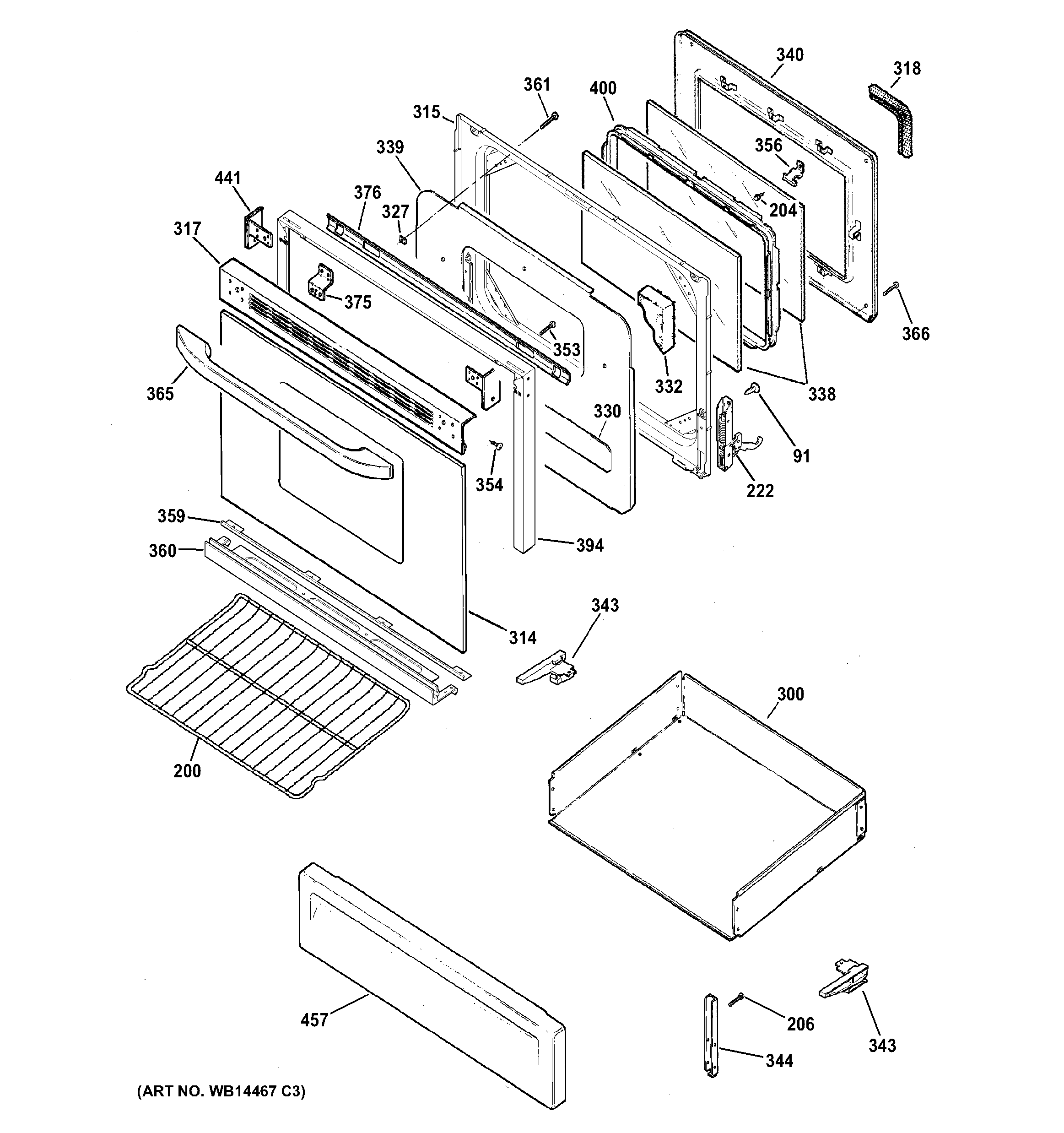

RGB746DEP6WW DOOR & DRAWER PARTS

RGB746DEP6WW DOOR & DRAWER PARTS

Written by

in

RGB746DEP6WW DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
314WB57K3 GE Oven Outer Door Glass White
315WB56X21344 GE Door Weld Liner
317WB07K10191 GE Oven Vent Trim Door (White)
318GEN WB04K10029
327WB01K10093 GE Oven Speednut
330GEN WB35K0022
332GEN WB35K10153
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
354WB01K10012 GE Oven Screw 8-22 PL 1HX
356GEN WB02K0056
359TRIM BOTTOM ASM
360WB07X20288 GE Oven Barrier Door
361GEN WB01K0065
365WB15X10048 GE Oven Door Handle White
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
376WB35K23 GE Heater Deflector
394WB07X20359 GE Door Trim
400GEN WB34K10088
441WB7K266 GE Oven Door End Cap
457WB36K10033 GE Oven Drawer Panel (White)
