RGB746DEP6WW GAS & BURNER PARTS

RGB746DEP6WW GAS & BURNER PARTS

Written by

in

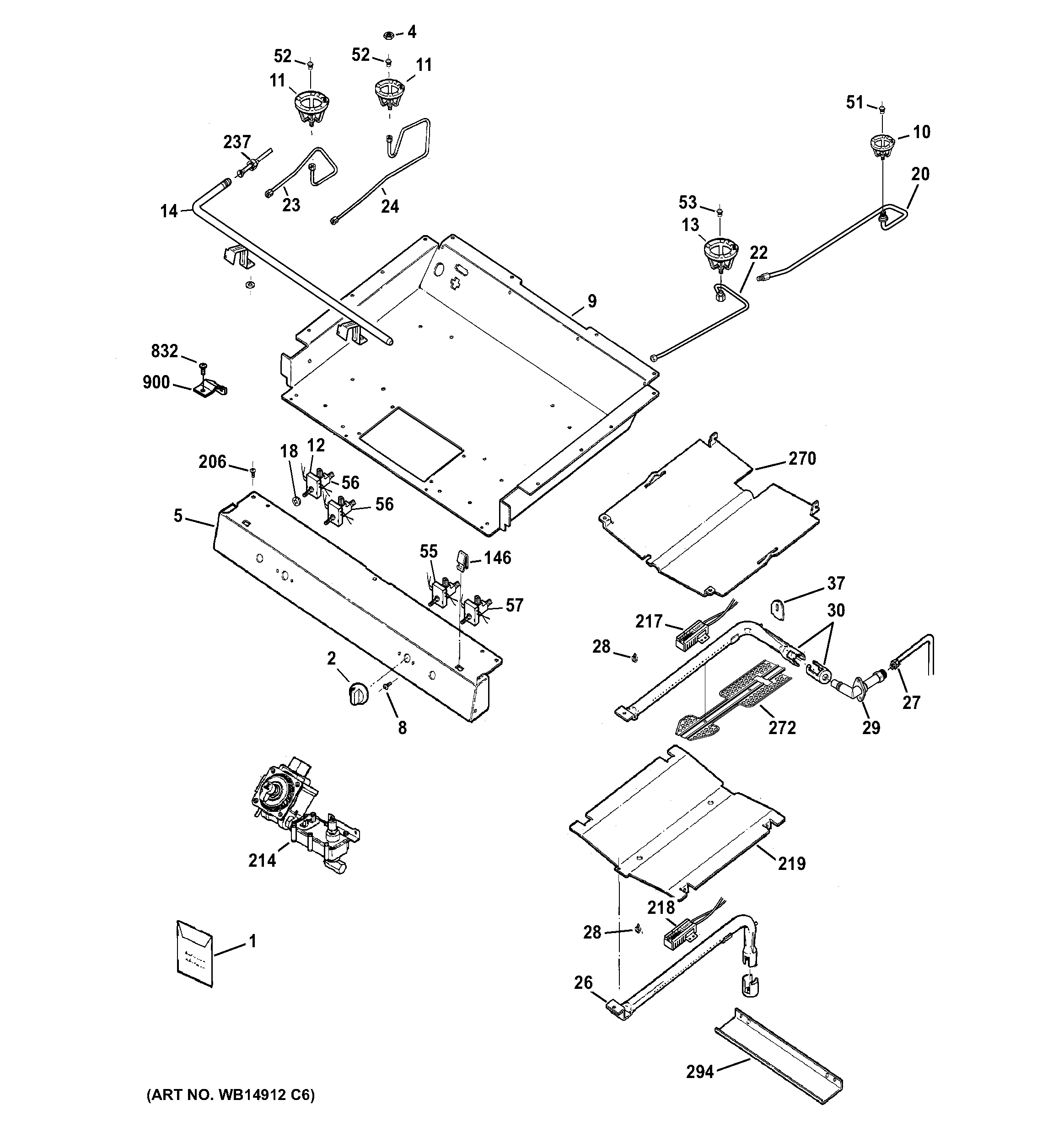

RGB746DEP6WW GAS & BURNER PARTS

Products

PositionProduct
1WB49X21392 GE Oven Hinge Service Kit
1WB28K10556 GE Range Gas Valve Conversion Kit
1GEN 49-85214
1GEN 31-10934
1GEN 31-10939
1GEN 31-17105
2WB03K10034 GE Oven Burner Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10767
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10074
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10425
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
22WB28K10803 GE Oven Surface Burner Orifice Holder
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28X20389 GE Oven 90-Degree Elbow Assembly
30GEN WB16K10067
37WB34K14 GE Igniter Cover
51WB28K10031 GE Oven Orifice
52WB28K10023 GE Oven Orifice
53WB28K10032 GE Oven LP Orifice
55VALVE BURNER 270 RR
56VALVE BURNER 270
57WB21K10099 GE Oven Burner Valve
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214VALVE CONTROL ASM NOR. D
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10297 GE Oven Valve Bracket
