RGB746GES1

RGB746GES1

Written by

in

RGB746GES1

Products

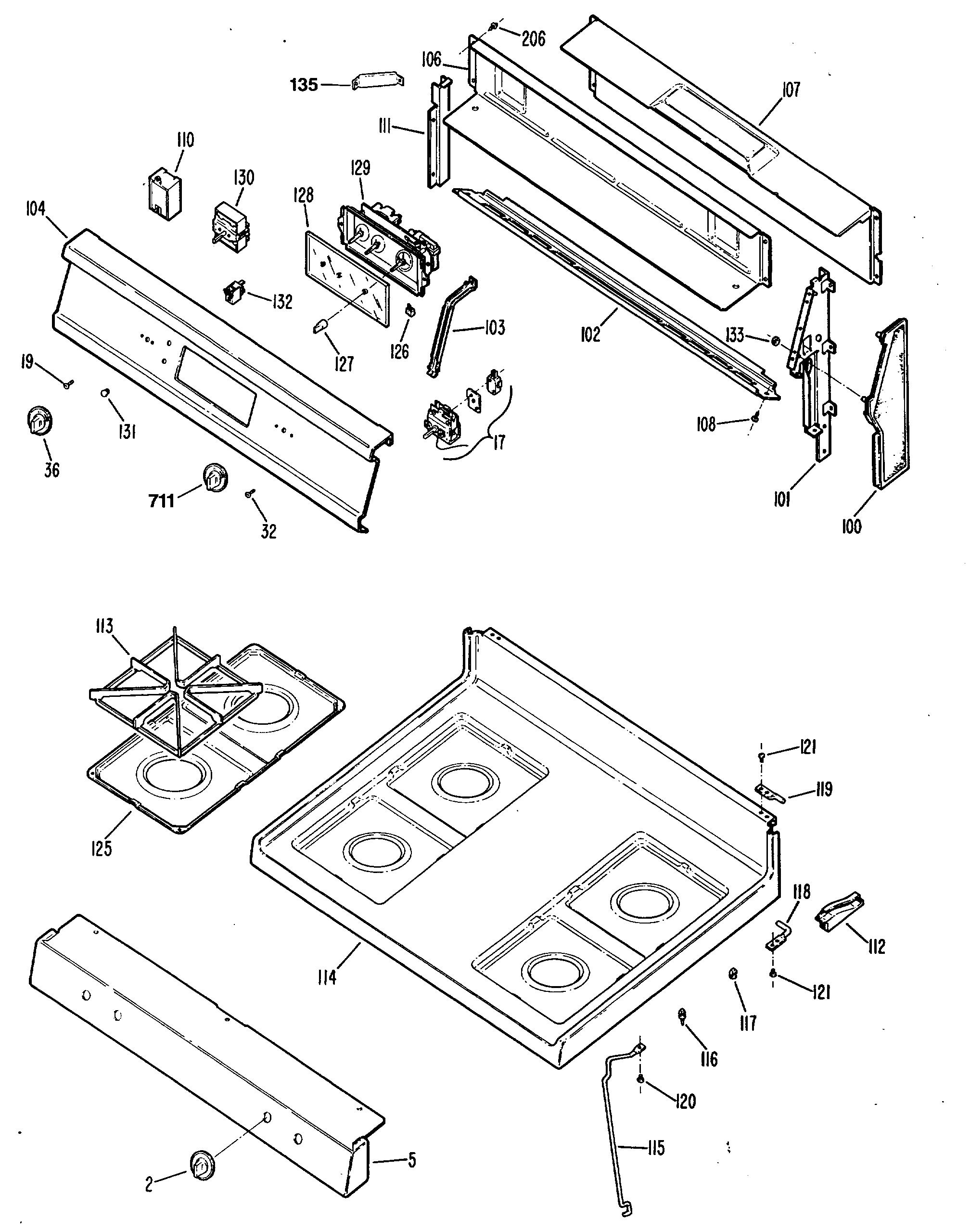

PositionProduct
2GEN WB03K0094
3WB28K10376 GE Oven Orifice
3ORIFICE NATURAL GAS
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB07K0236
6GEN WB02K0009
9GEN WB63K0009
10GEN WB01K0004
11WB18X26988 GE Oven Top Spark Electrode
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0063
15WB21K12 GE Oven Burner Control Valve
16GEN WB19K0001
17GEN WB20K0003
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0048
20GEN WB28K0047
20GEN WB28K0032
20GEN WB28K0031
21GEN WB19K0007
26GEN WB16K0006
27GEN WB28K0055
28WB2X9154 GE Oven Igniter with 8" Leads
29GEN WB28K0030
30GEN WB16K0008
32GEN WB01K0017
36GEN WB03K0101
37WB34K14 GE Igniter Cover
100GEN WB07K0032
100GEN WB07K0031
101GEN WB37K0012
101GEN WB37K0011
102GEN WB07K0005
103GEN WB37K0003
104TRIM CONTROL
106GEN WB36K0003
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
108SCREW MTG END CAP
109GEN WB01X5743
110GEN WB13K0009
111GEN WB34K0005
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113GRATE ASM HAIRPIN
114GEN WB62K0017
114GEN WB62K0018
115GEN WB06K0001
116GEN WB02K0016
117GEN WB02K0017
118WB14K4 GE Left Slide Glider
118WB14K3 GE Oven Right Side Glide
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
125GEN WB49K0024
126GEN WB02K0026
127WB3X5699 GE Oven Timer Knob Kit
128GEN WB06K0003
129TIMER ANALOG
130GEN WB24K0005
131WB25T10041 GE Oven Lens
132LAMP PILOT
133GEN WB01K0022
135GEN WB37K0010
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
203WB18K10036 GE Oven Line Cord
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0006
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
209GEN WB63K0011
210GEN WB53K0020
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
214WB19K14 GE Oven Control Valve
215GEN WB02K0007
216GEN WB01K0006
219GEN WB34K0008
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222GEN WB10K0009
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0004
228GEN WB02X7066
229GEN WB08K0001
230GEN WB08K0002
231GEN WB02K0012
233GEN WB24K0006
234GEN WB07K0002
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
237GEN WB28K0059
239GEN WB63K0001
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
243GEN WB63K0007
243GEN WB63K0006
244GEN WB02K0001
245GEN WB02X7701
246GEN WB63K0026
247GEN WB53K0014
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K0015
252GEN WB10K0001
254GEN WB10K0008
254GEN WB01X0549
254GEN WB01K0053
254GEN WB10K0007
255WB02K10158 GE Oven Drawer Support
256GEN WB32K0001
257GEN WB38K0001
258WB38K2 GE Range Vent Brace
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0007
262GEN WB35K0008
266GEN WB01K0012
266GEN WZ05X0234
266GEN WZ05X0124
269WB1X1293 GE Oven Screw
270GEN WB34K0009
271GEN WB28K0060
272WB34K10 GE Oven Broil Shield
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB53K0018
279GEN WB02K0042
280GEN WB02K0029
281GEN WB24K0007
282RETAINER-INSULATION
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
285GEN WB15K0013
286GEN WB03K0017
287GEN WB53K0016
287GEN WB53K0017
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292GEN WB63K0017
293GEN WB63K0018
294GEN WB63K0019
295GEN WB38K0005
296WB34K13 GE Oven B Panel Cover
297WB1K5062 GE Oven Screw
298GEN WB02K0037
299GEN WB02K0038
300GEN WB39K0021
306GEN WB39K0013
306UNKNOWN
306GEN WB39K0014
308WB15K1 GE Oven Broil Handle
309WASHER
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
314GEN WB56K0021
314PAD
315GEN WB55K0007
316GEN WB15K0011
317GEN WB07K0077
318GEN WB32K0006
319GEN WB55K0003
320GEN WB02K0019
321WB1X5731D GE Oven Nut Package of 12
322GEN WB55K0004
322GEN WB55K0005
323GEN WB07K0187
324GEN WB07K0186
325GEN WB07K0010
326GEN WB02X6574
327WB01K10093 GE Oven Speednut
328SCR 8-22 BTHW 9/16 S HLT
329WB1X558D GE Oven Screw Package
332GEN WB35K0006
339GEN WB56K0007
340GEN WB55K0008
341GEN WB02K0040
342GEN WB39K0018
343GEN WB39K0019
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
397GEN WZ04X0384
700GEN WB02K0034
701SHIELD SWITCH
702GEN WB01K0024
703BRACKET OVEN
709GEN WB34K0019
711GEN WB03K0102
712WB1K37 GE Oven Screw
32767WB2K20 GE Oven Bracket Assembly
32767GEN 31-0772
