RGB746WEH1WW GAS & BURNER PARTS

RGB746WEH1WW GAS & BURNER PARTS

Written by

in

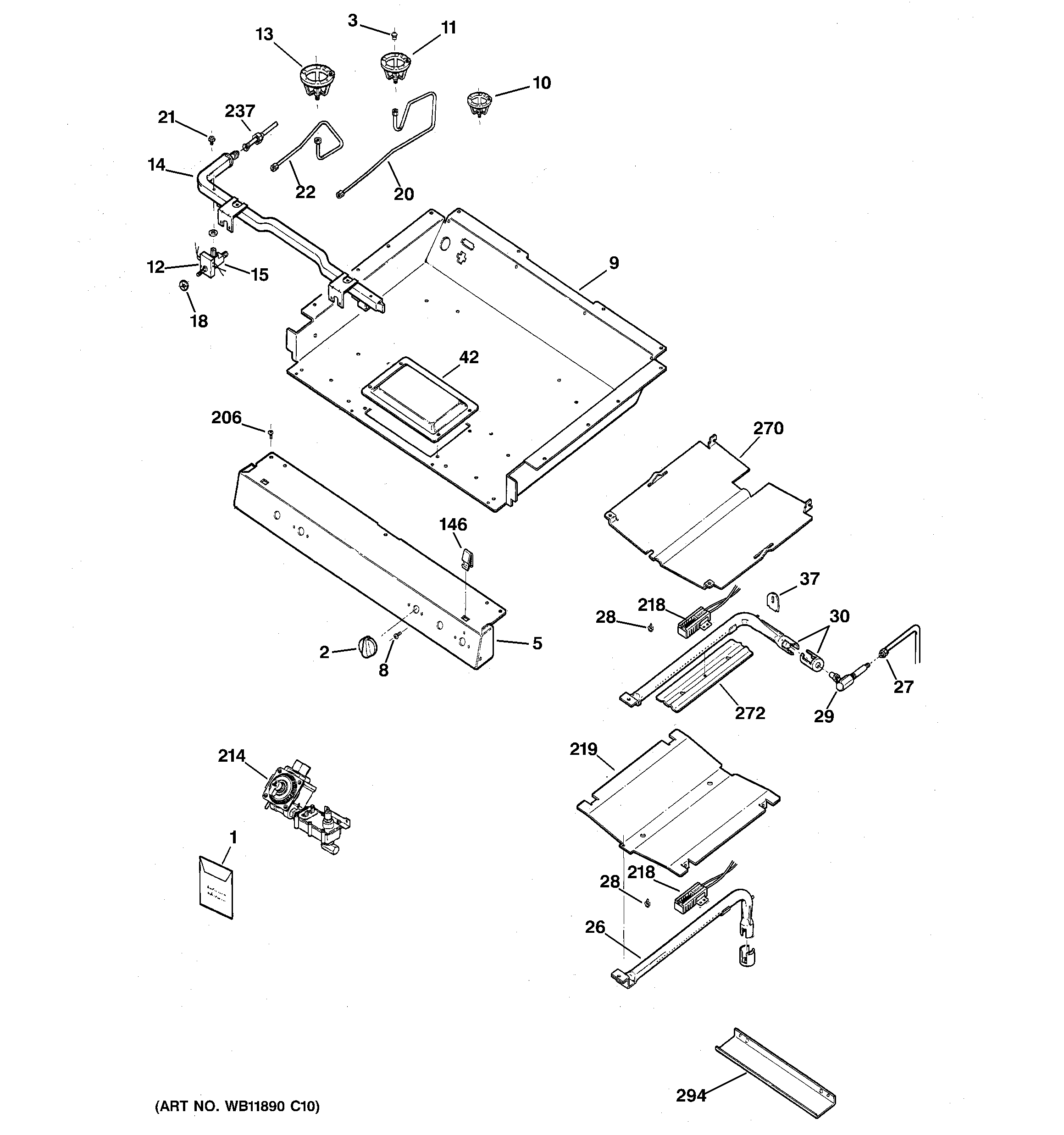

RGB746WEH1WW GAS & BURNER PARTS

Products

PositionProduct
1WB28K10556 GE Range Gas Valve Conversion Kit
1GEN 31-21118
1GEN 49-85067
2WB03K10034 GE Oven Burner Knob
3WB28K10032 GE Oven LP Orifice
3ORIFICE-NG MED 1.50MM
3WB28K10031 GE Oven Orifice
3WB28K10030 GE Oven Natural Gas Orifice
3WB28K10029 GE Oven Natural Gas Orifice
3WB28K10023 GE Oven Orifice
5GEN WB36K10372
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10GEN WB02K10007
11GEN WB02K10006
12GEN WB24K10024
12GEN WB24K10023
13GEN WB02K10008
14GEN WB28K10028
15GEN WB21K10014
15GEN WB21K10016
15GEN WB21K10015
18WB2K24 GE Oven Valve Cover
20GEN WB28K10026
20GEN WB28K10027
21WB1K83 GE Oven Screw
22WB28K10025 GE Gas Range Burner Tube
22WB28K10024 GE Oven Burner Tube
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K0030
30GEN WB16K10004
37WB34K14 GE Igniter Cover
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
