RGB751GEL1

RGB751GEL1

Written by

in

RGB751GEL1

Products

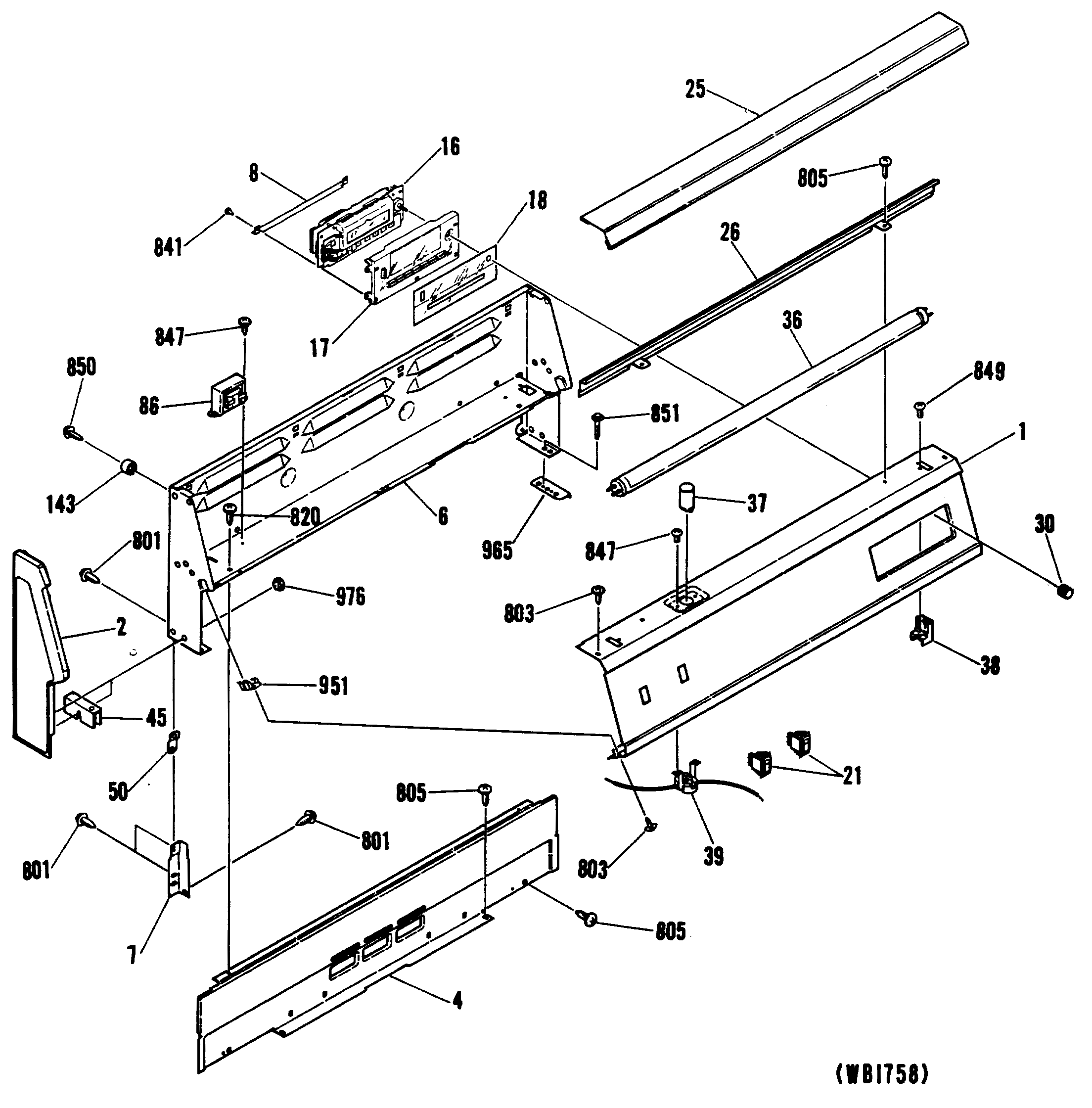

PositionProduct
1GEN WB36M0003
2GEN WB07X1812
2GEN WB07X1811
4GEN WB61X0370
6GEN WB61X0369
7BACKGUARD SUPPORT LT
7BACKGUARD SUPPORT-RT
8UNKNOWN
16GEN WB19X0265
17GEN WB27M0008
18GEN WB27M0002
21WB24K5022 GE Oven Rocker Switch
25CANOPY
26GEN WB02X9756
30GEN WB03X0808
31GEN WB27M0005
36FLUOR LAMP
37GEN WB02X9390
38GEN WB08X0291
39GEN WB08X0290
43PC BOARD SPACER
44UNKNOWN
45GEN WB06X0068
45GEN WB06X0069
50GEN WB02M0010
51MAIN TOP-WHITE
52GEN WB36M0004
61GEN WB63X0411
73AERATION PAN
74UNKNOWN
85GEN WB07X1734
85GEN WB07X1733
86GEN WB20X0116
87GEN WB03M0004
89MANIF PANEL BRACKET-RT
89MANIF PANEL BRACKET-LT
90GEN WB02X2084
91MAINTOP HINGE-LT
91MAINTOP HINGE-RT
93GEN WB02X9723
95MAINTOP HINGE BRACKET
102INSULATION
111DOOR LINING PLUG
112UNKNOWN
113INSULATION RETAINER
115GEN WB02M0001
116GEN WB02X9178
117OV DR GLASS RETAINER
121GEN WB56X2056
122OV DR INTERMED GLASS-UP
123CENTER GLASS
124OV DR INNER GLASS
131WB2X9168 GE Oven Seal
132WB2X9373 GE Oven Gasket
133FELT WASHER
136OV DR HANDLE
140UNKNOWN
141GEN WB02X9036
143REAR WIRE COVER SPACER
143UNKNOWN
146UNKNOWN
147FIBER WASHER
151DOOR LATCH ASM
156GEN WB02X9406
161GEN WB24X0436
166GEN WB02X9403
171SWITCH INSULATOR
175LOCK BOX COVER
178LATCH ASM INSULATION
190HANDLE EXTENSION
191LATCH HANDLE
192GEN WB03X0831
193KNOB CLIP
195LOCK SPRING
201GEN WB53X0276
202FRONT FRAME
203GEN WB63X0431
204GEN WB58X0063
208GEN WB34M0007
210GEN WB63X0335
211GEN WB02X9728
212INSULATION RETAINER
214GEN WB38X0109
215GEN WB02X9727
216GEN WB02X9141
219GEN WB34M0006
220FLUE DEFLECTOR SHIELD
221BODY SIDE-WHITE
222LOWER PANEL
224GEN WB02M0011
225FLUE DEFLECTOR GASKET
226DOOR HANDLE
228GEN WB02X9726
231INSULATION-TOP SIDE
232UNKNOWN
233UNKNOWN
235GEN WB02X9394
238DISCONNECT
241GEN WB48X0208
247WB48X10056 GE Broil Pan Set, Large Porcelain
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258OV LAMP LENS GASKET
259OV LAMP LENS
260LENS RETAINER
266BASE ASM W/LEVELER
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
272BODY SIDE SUPPORT-RT
272BODY SIDE SUPPORT-LT
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
286OV DR SPRING
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
296GEN WB02X9188
300MAINTOP SPACER
301UNKNOWN
302GEN WB02X9730
303UNKNOWN
307TOP BURNER ASM-FRONT
308TOP BURNER ASM-REAR
309UNKNOWN
310BURNER BOX BOTTOM
311BROILER BURNER
312GEN WB21X0465
314UNKNOWN
315CONTROL VALVE
316WB2X9154 GE Oven Igniter with 8" Leads
317311689 GE Ignition Bracket
317IGNITER BRACKET
317IGNITER BRACKET-BROIL
318SPARK IGN MODULE
319VALVE–SHUT-OFF
320GEN WB34M0004
321GEN WB34M0005
322UNKNOWN
323SWITCH-VALVE-TOP BURNER
334TOP BURNER SUPPORT
346GEN WB02X9156
347WB2X9163 GE Plate
348ORIFICE FITTING SHIELD
353AIR SHUTTER-OVEN
366GASKET
373OVEN BURNER BAFFLE
374BRO BRN BAFFLE -UPPER
374BROILER BURNER BAFFLE-LO
391INSULATION RETAINER
400UNKNOWN
554GEN WB18X0370
801WB1M1 GE Oven Screw
801GEN WB01X1419
803WB1X1149 GE Oven Screw
804WB1X681 GE Oven Screw
805GEN WB01X1113
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
808WB1X1116 GE Oven Screw
809WB1X1137 GE Oven Screw
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
816GEN WB01X1125
817GEN WB01X1346
818GEN WB01X1250
820WB1X1424D GE Oven Screw Package
828WB1X1141 GE Oven Screw 8-32
830WB1X1130 GE Oven Screw 10-32
831GEN WB01X1132
833WB1X1131 GE Screw 6-32
838GEN WB01X1121
839ADJUSTING SCREW
841GEN WB01X1171
846SCREW
847WB1X1118 GE Oven Screw 6-32T
849GEN WB01X1252
852SCREW
908POP RIVET
909WB1X1173 GE Rivet
910RIVET
922MT STRIKE
927WB1X119D GE Oven Range Washer
933GEN WB01X1256
934VALVE GASKET
936GEN WB02X9103
940WB1X371D Package of 12 Ceramic Wire Connector
949CLIP
951BACKGUARD CLIP
959GEN WB02X9737
965GEN WB02X9000
968GEN WB02X9393
976GEN WB01X1251
979SPACER
986NUT
999GEN WB18K5334
999GEN 31-0732
999GEN 39-4657
999GEN 31-0698
