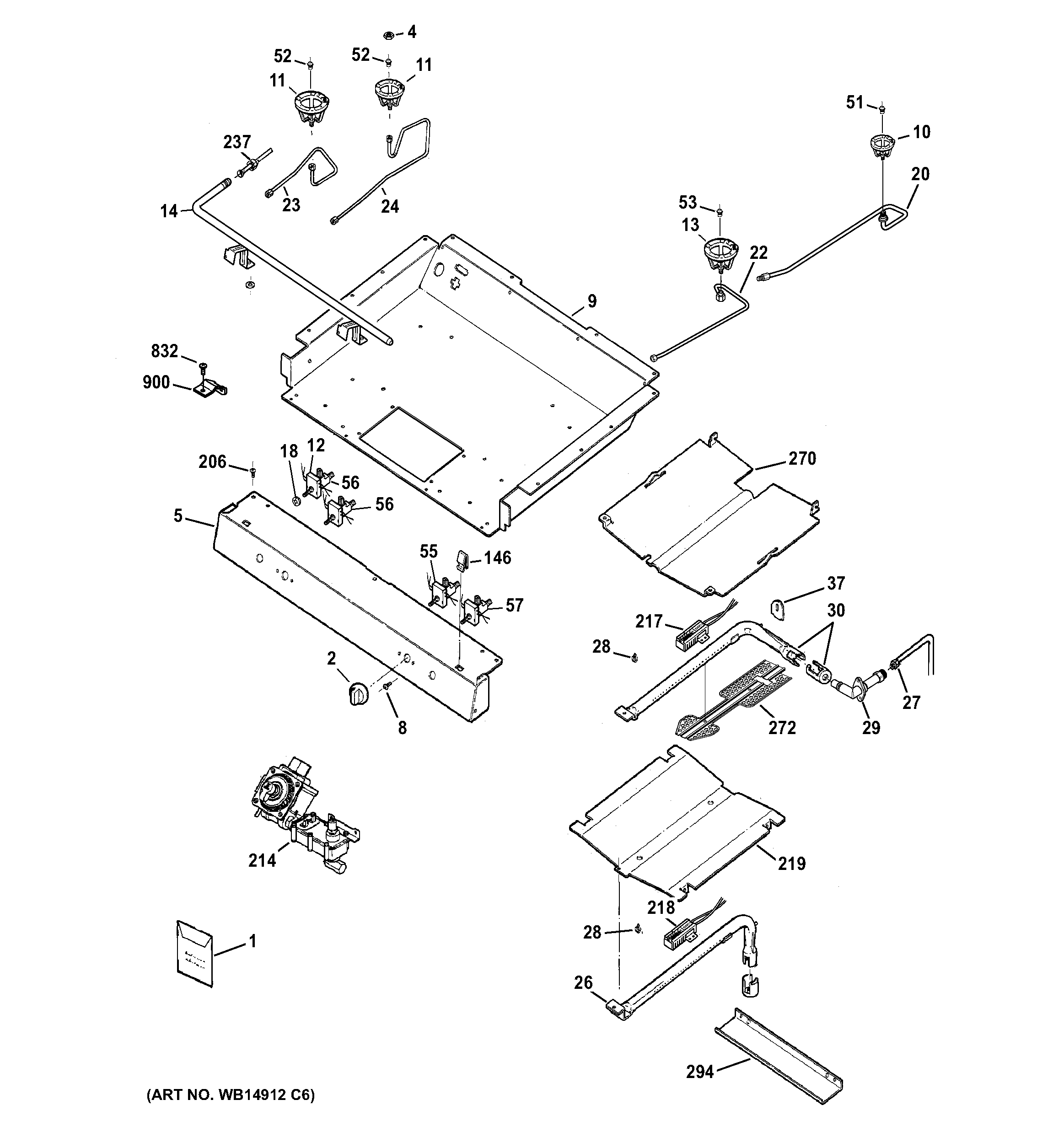

RGB780DEH1CC GAS & BURNER PARTS

RGB780DEH1CC GAS & BURNER PARTS

Written by

in

RGB780DEH1CC GAS & BURNER PARTS

Products

PositionProduct
1WB28K10556 GE Range Gas Valve Conversion Kit
1PM OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
1PM MANUAL MINI & WD ASM
1WB49X21392 GE Oven Hinge Service Kit
1PM INSTALL INSTRUCTIONS
2GEN WB03K10225
4WB01K10037 GE Oven Economic Nut
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12HARNESS BURNER BOX
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10457 GE Oven Manifold Pipe
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
22WB28K10803 GE Oven Surface Burner Orifice Holder
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
26WB16X20463 GE Oven Bake Burner
27WB28X24773 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28X20389 GE Oven 90-Degree Elbow Assembly
30GEN WB16K10067
37WB34K14 GE Igniter Cover
51WB28K10834 GE Oven Orifice Assembly
52WB28K10023 GE Oven Orifice
53WB28K10032 GE Oven LP Orifice
55WB21K10169 GE Oven Burner Valve Round 140
56ROUND VALVE BURNER
57WB21K10170 GE Oven Round Burner Valve 140
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB21X20293 GE Oven Control Valve Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X25364 GE Oven Manifold Supply Tube
270WB49K10025 GE Range Deflector
272WB34X20303 GE Range Broil Shield
294GEN WB63K10040
832WB01K10080 GE Oven Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
