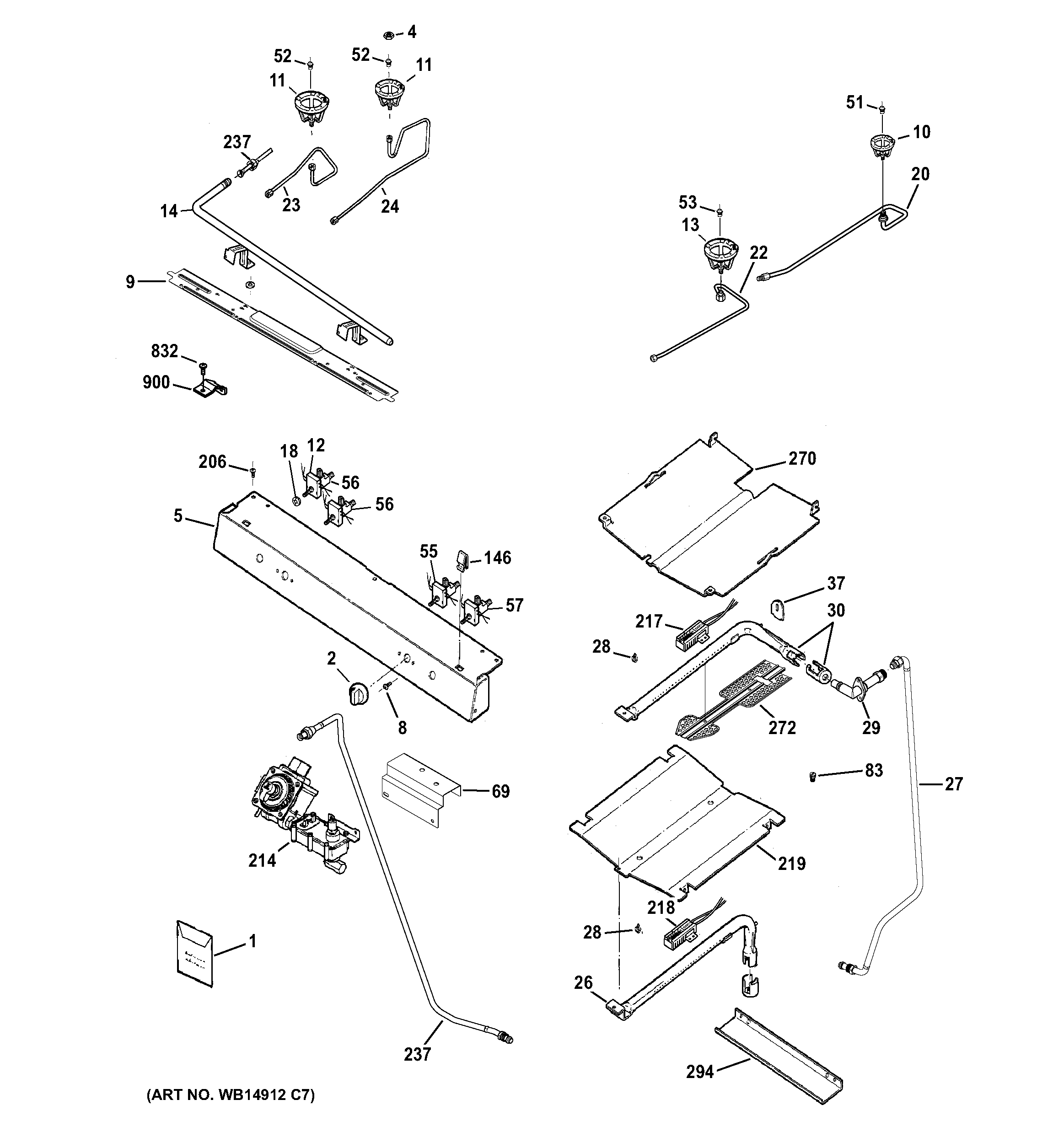

RGB780DEH2CC GAS & BURNER PARTS

Products

Position	Product
1	PM GAS QUICK GUIDE
1	WB28X39143 GE LP Conversion Kit
1	PM INSTALL INSTRUCTIONS
1	PM MINI MANUAL
1	LP CONVERSION INST
1	WB49X21392 GE Oven Hinge Service Kit
2	GEN WB03K10225
4	WB01K10037 GE Oven Economic Nut
5	MANIFOLD PANEL
8	WB01K10002 GE Oven Screw 8-32
9	WB34X20680 GE Support Manifold
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	HARNESS BURNER BOX
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	WB28K10457 GE Oven Manifold Pipe
18	WB2K24 GE Oven Valve Cover
20	WB28K10187 GE Oven Rear Orifice Holder
22	WB28K10803 GE Oven Surface Burner Orifice Holder
23	WB28K10190 GE Oven Left Front Orifice
24	WB28K10188 GE Oven Rear Orifice H R 150N 9500
26	WB16X20463 GE Oven Bake Burner
27	WB28X24773 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	WB28X20295 GE 90 Degree Elbow Assembly
30	GEN WB16K10067
37	WB34X24753 GE Igniter Cover
51	WB28K10834 GE Oven Orifice Assembly
52	WB28K10023 GE Oven Orifice
53	WB28K10032 GE Oven LP Orifice
55	WB21K10169 GE Oven Burner Valve Round 140
56	ROUND VALVE BURNER
57	WB21K10170 GE Oven Round Burner Valve 140
69	WB02K10325 GE Valve Support Single
83	WB28X26089 GE Oven Orifice Spud
146	GEN WB02K0052
206	WB01K10091 GE Oven Screw
214	WB21X20293 GE Oven Control Valve Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	TUBE MANIFOLD SUPPLY ASSEMBLY
270	WB49K10025 GE Range Deflector
272	WB34X20303 GE Range Broil Shield
294	GEN WB63K10040
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10263 GE Oven Round Valve Bracket
