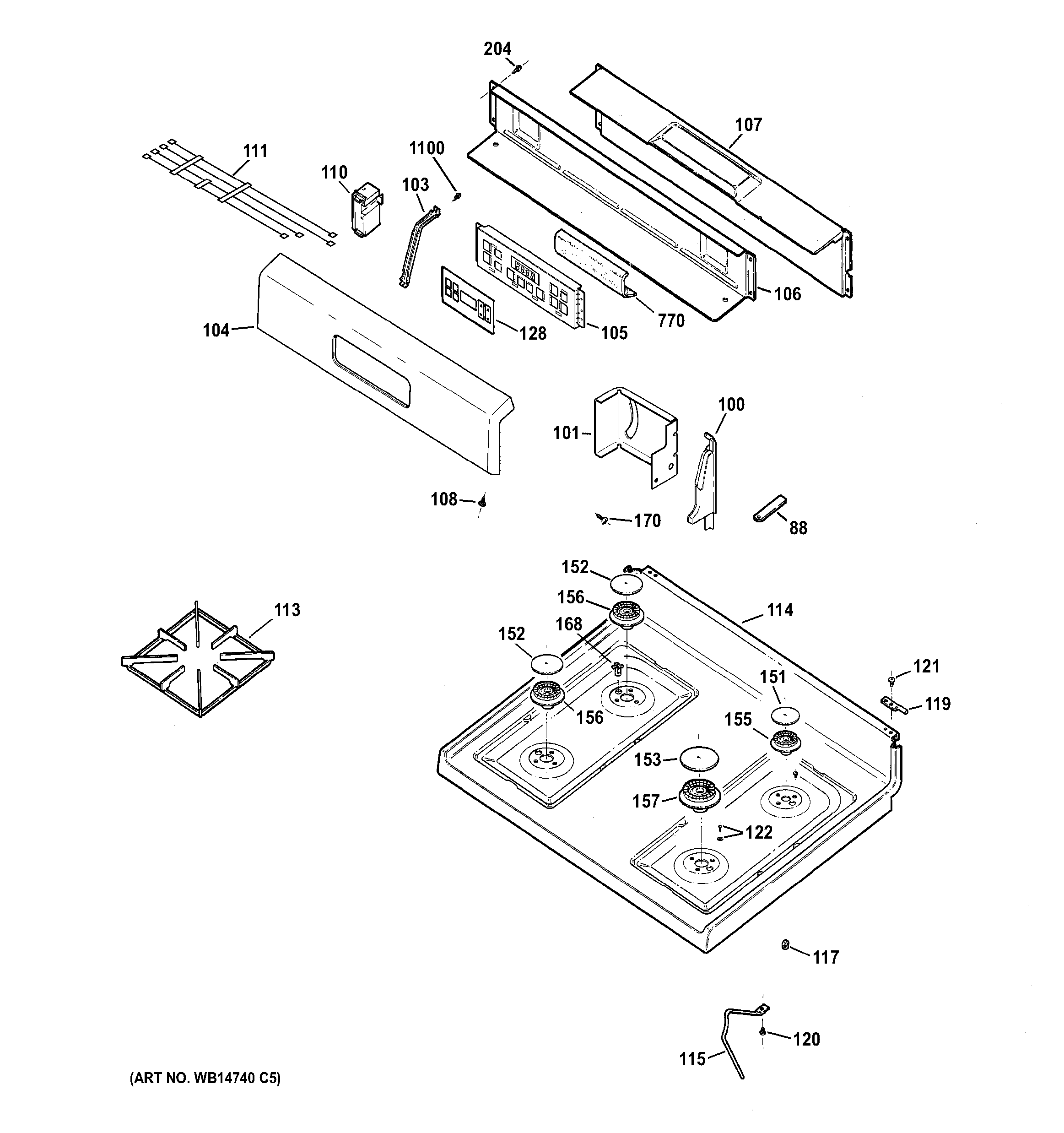

RGB780DEH2WW CONTROL PANEL & COOKTOP

RGB780DEH2WW CONTROL PANEL & COOKTOP

Written by

in

RGB780DEH2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104WB36X22889 GE Oven Control Trim
105WB27X44729 GE Gas Oven Control
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10130
108WB1X5364 GE Oven Mounting Screw
110WB13X24323 GE Oven Ignition Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113WB31X26387 GE Oven Grate Assembly 8 Finger HV
114WB62X26314 GE Range Top
115WB02K10276 GE Cooktop Support
117WB14K10004 GE Oven Pin Locator
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
121GEN WB01K0078
122WB01X24735 GE Oven CKT Screw
128WB07X22807 GE Oven Overlay
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10023 GE Oven Burner Cap Assembly
153WB29K10024 GE Burner Cap Oven
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
