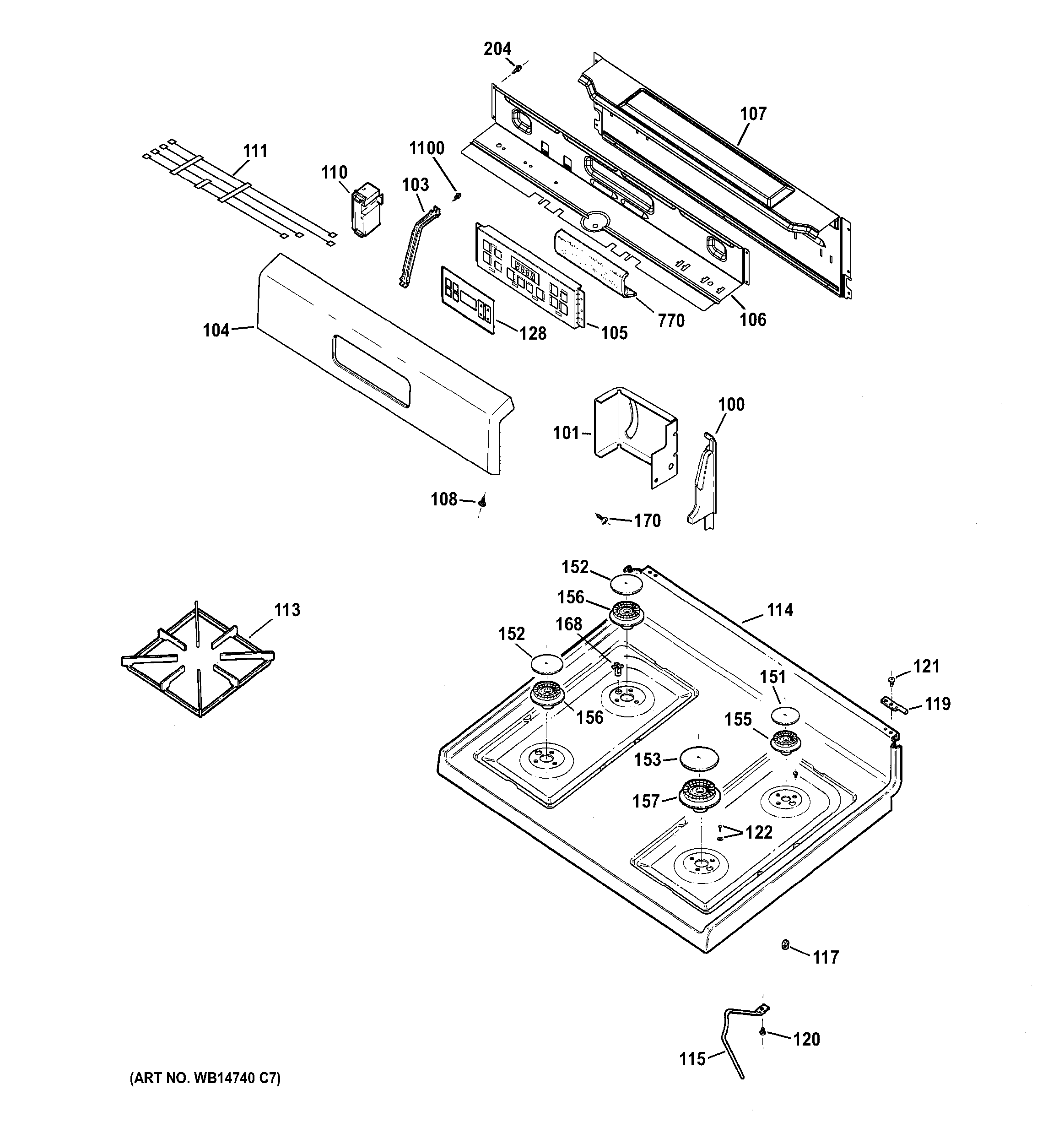

RGB780DEH3WW CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07K10195 GE Oven Right White End Support
100	WB07K10196 GE Oven Left End Support (White)
101	WB37K10004 GE Cooktop Left Bracket
101	WB37K10003 GE Cooktop Right Bracket
103	WB02K10074 GE Oven Control Bracket
104	WB36X22889 GE Oven Control Trim
105	WB27X44729 GE Gas Oven Control
106	WB34K10003 GE Upper Back Oven Cover
107	GEN WB34K10130
108	WB1X5364 GE Oven Mounting Screw
110	WB13X24323 GE Oven Ignition Module
113	WB31X26387 GE Oven Grate Assembly 8 Finger HV
114	WB62X26314 GE Range Top
115	WB02K10276 GE Cooktop Support
117	WB14K10004 GE Oven Pin Locator
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WZ4X345D GE Screw Package 12 C92
121	GEN WB01K0078
121	WB1K5119 GE Oven Screw
122	WB01X24735 GE Oven CKT Screw
128	WB07X22807 GE Oven Overlay
151	WB16X28654 GE Oven Burner Cap Cover
152	WB29K10023 GE Oven Burner Cap Assembly
153	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	BURNER LARGE V2
168	WB02X24976 GE Oven Igniter Clip V2
170	GEN WB01X5874
204	WB1K5062 GE Oven Screw
770	WB35K10040 GE Oven Insulation Control
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
