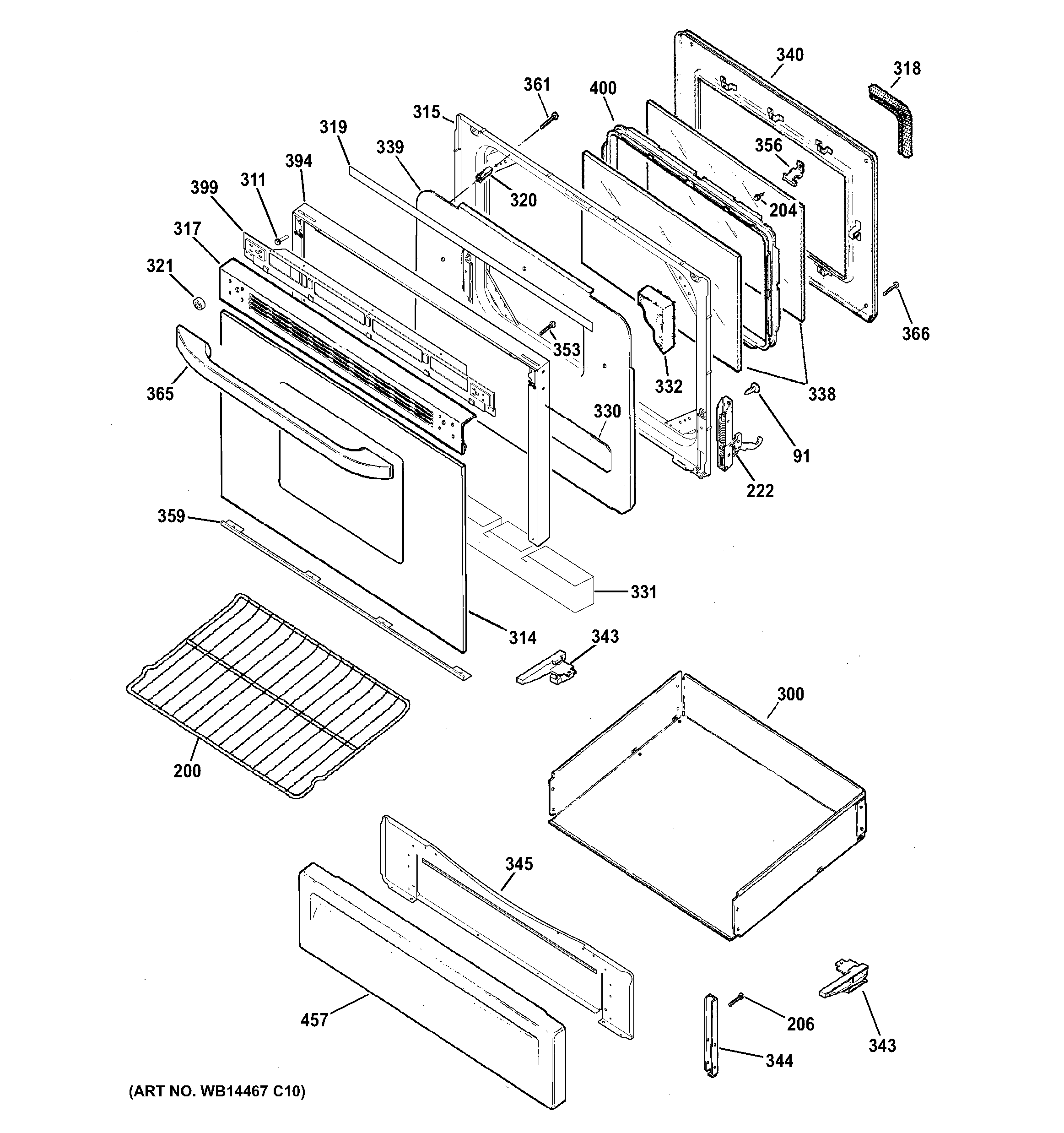

RGB780DEH3WW DOOR & DRAWER PARTS

RGB780DEH3WW DOOR & DRAWER PARTS

Written by

in

RGB780DEH3WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21810 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
311BUMPER
314WB56X26388 GE Oven Glass Door
315WB56X24855 GE Oven Door Liner Weld
317WB07X24882 GE Oven Vent Trim
318WB35X29668 GE Oven Door Gasket Assembly
319WB35K10041 GE Oven Reflector
320WB02K10156 GE Oven Spacer
321WB1K10 GE Oven Grommet Handle
330GEN WB35K0022
331WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10055 GE Drawer Liner
353WB1K67 GE Oven Screw 8-22
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB1K63 GE Oven Screw
365WB15K10096 GE White Oven Handle
366WB1X536 GE Oven Screw
394WB07X24881 GE Door Trim
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB36K10033 GE Oven Drawer Panel (White)
