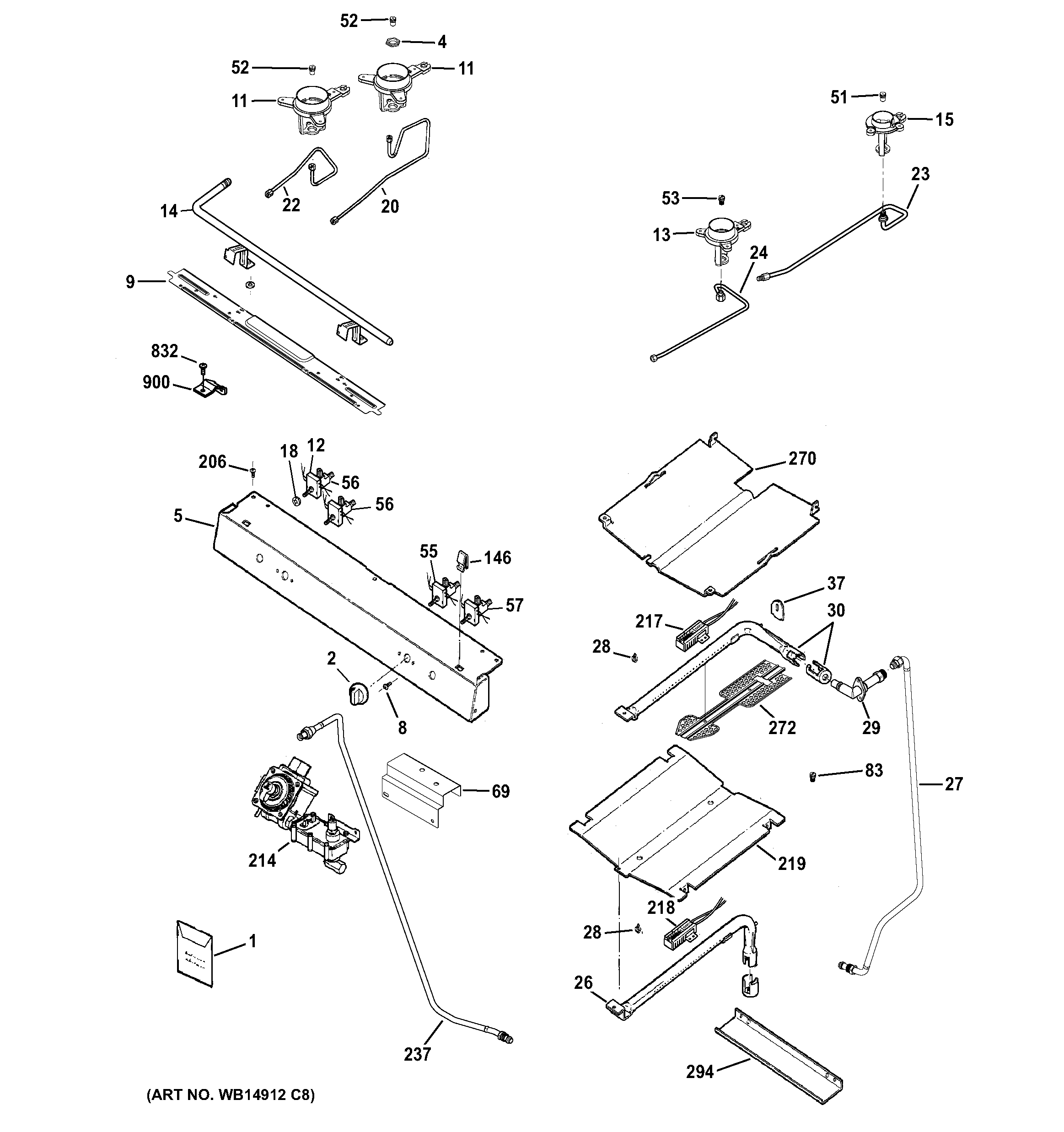

RGB780DEH3WW GAS & BURNER PARTS

Products

Position	Product
1	WB49X21392 GE Oven Hinge Service Kit
1	WB28X39143 GE LP Conversion Kit
1	PM INSTALL INSTRUCTIONS
1	PM GAS QUICK GUIDE
1	PM MANUAL MINI & WD ASM
1	PM INSTALL INSTRUCTIONS
2	WB03K10218 GE Oven Control Knob
4	WB01K10037 GE Oven Economic Nut
5	MANIFOLD PANEL
8	WB01K10002 GE Oven Screw 8-32
9	WB34X20680 GE Support Manifold
11	WB02X24727 GE Oven Right Front Burner Jet with Electrode
12	HARNESS BURNER BOX
13	WB02X24726 GE Range Injector Large
14	WB28K10457 GE Oven Manifold Pipe
15	WB02X24728 GE Range Small Injector
18	WB2K24 GE Oven Valve Cover
20	WB28X26308 GE Oven L Rear Orifice Holder
22	WB28X26306 GE Oven Left Front Orifice Holder
23	WB28X26309 GE Oven Surface Burner Orifice Holder
24	FRONT ORIFICE HOLDER
26	WB16X20463 GE Oven Bake Burner
27	WB28X24773 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	WB28X20389 GE Oven 90-Degree Elbow Assembly
30	GEN WB16K10067
37	WB34X24753 GE Igniter Cover
51	WB28K10834 GE Oven Orifice Assembly
52	WB28K10023 GE Oven Orifice
53	WB28K10032 GE Oven LP Orifice
55	WB21K10169 GE Oven Burner Valve Round 140
56	ROUND VALVE BURNER
57	WB21K10170 GE Oven Round Burner Valve 140
69	WB02K10325 GE Valve Support Single
83	WB28X26089 GE Oven Orifice Spud
146	WB02X26569 GE Range Top Clip
206	WB01K10091 GE Oven Screw
214	WB21X33227 GE Valve Control Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	TUBE MANIFOLD SUPPLY ASSEMBLY
270	WB49K10025 GE Range Deflector
272	WB34X20303 GE Range Broil Shield
294	GEN WB63K10040
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10263 GE Oven Round Valve Bracket
