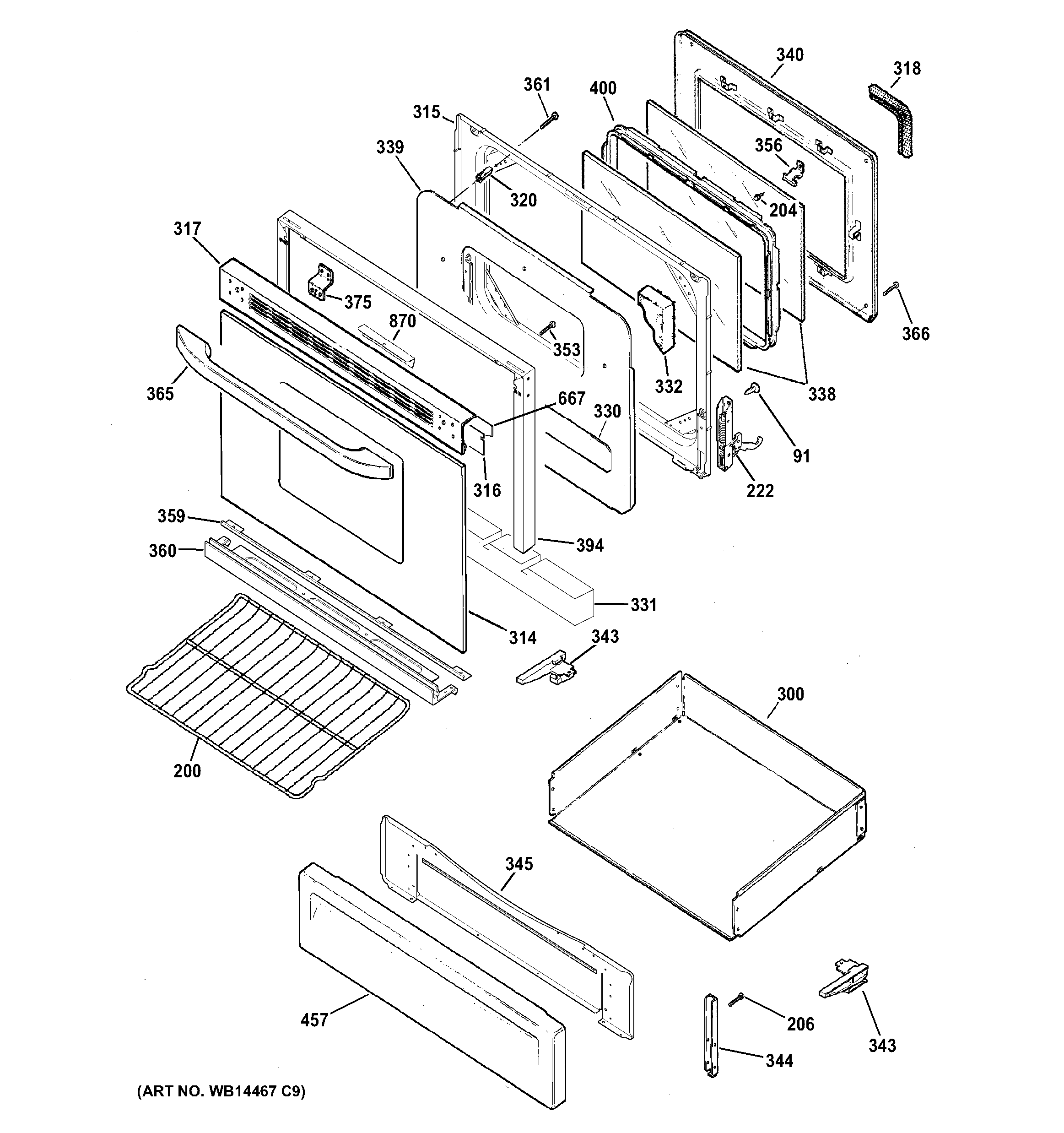

RGB780REH4SS DOOR & DRAWER PARTS

RGB780REH4SS DOOR & DRAWER PARTS

Written by

in

RGB780REH4SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21810 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
314GLASS AND COVER DOOR
315WB56X20537 GE Oven Door Weld Liner
316WB35K10041 GE Oven Reflector
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29668 GE Oven Door Gasket Assembly
320WB1K10 GE Oven Grommet Handle
330GEN WB35K0022
331WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB1K67 GE Oven Screw 8-22
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
360WB07X20288 GE Oven Barrier Door
361WB1K63 GE Oven Screw
365WB15K10102 GE Oven Handle
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
394WB07X20355 GE Door Trim
400WB34K10087 GE Oven Window Spacer Assembly
457DRAWER ASM
667WB35X21686 GE Door Insulation
870COVER VENT
