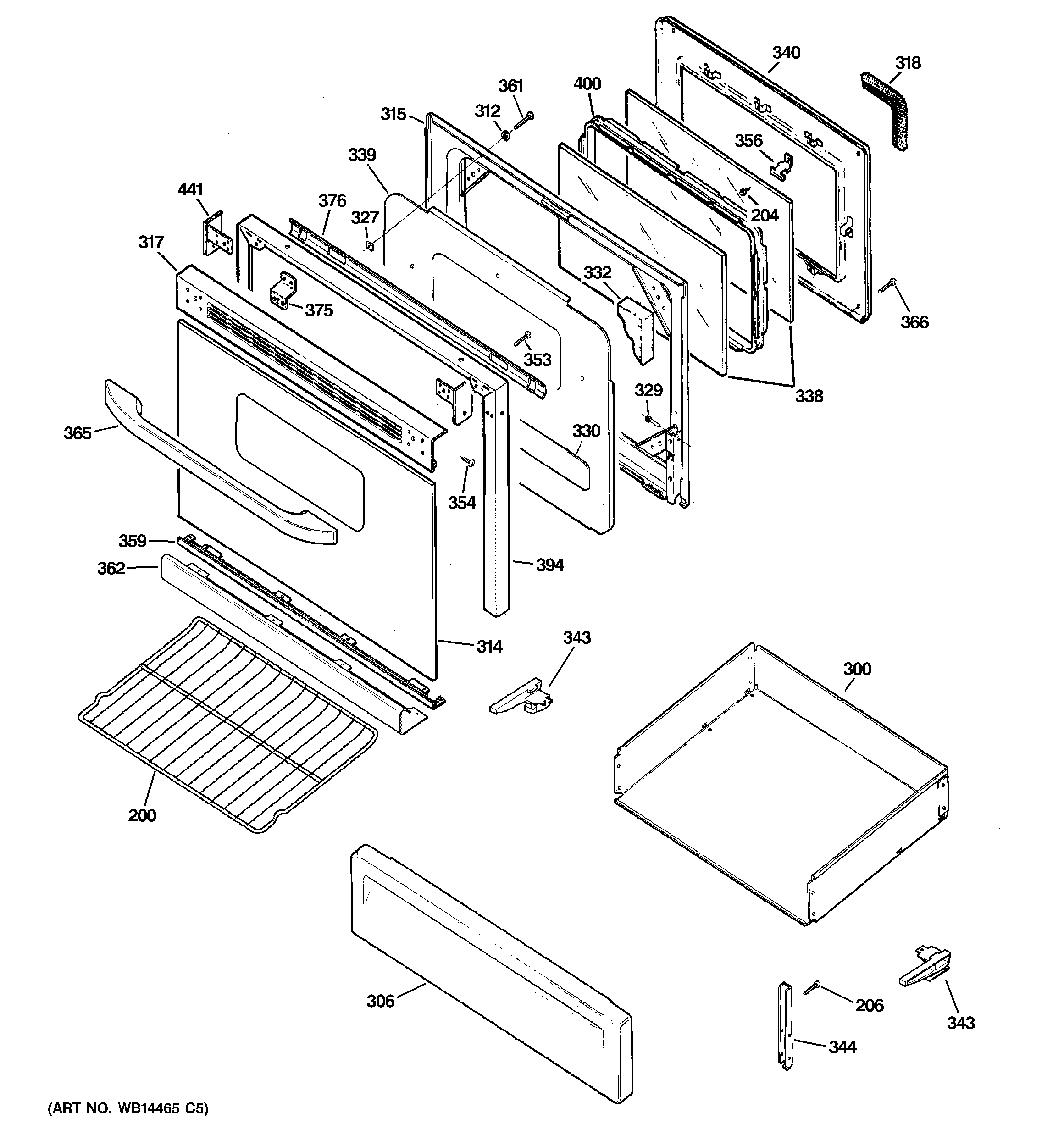

RGB790DEP2BB DOOR & DRAWER PARTS

RGB790DEP2BB DOOR & DRAWER PARTS

Written by

in

RGB790DEP2BB DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB01T10016 GE Oven Screw 8-18 AB Hex
206WB01K10091 GE Oven Screw
300GEN WB58K10004
306WB55K10001 GE Oven Drawer Panel (Black)
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K4 GE Oven Black Glass Door
314WB57K5 GE Oven White Glass Door
315GEN WB55K10042
317WB35K10041 GE Oven Reflector
317WB07K10200 GE Oven Vent Trim Assembly
317WB07K10191 GE Oven Vent Trim Door (White)
318GEN WB04K10029
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
354WB1K66 GE Screw
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0065
362GEN WB07K10342
365WB15X10048 GE Oven Door Handle White
365WB15X10047 GE Range Oven Black Door Handle
366WB1X536 GE Oven Screw
375WB02K10245 GE Oven Door Bracket
376WB35K23 GE Heater Deflector
394GEN WB07K0268
394GEN WB07K0265
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
441WB7K266 GE Oven Door End Cap
