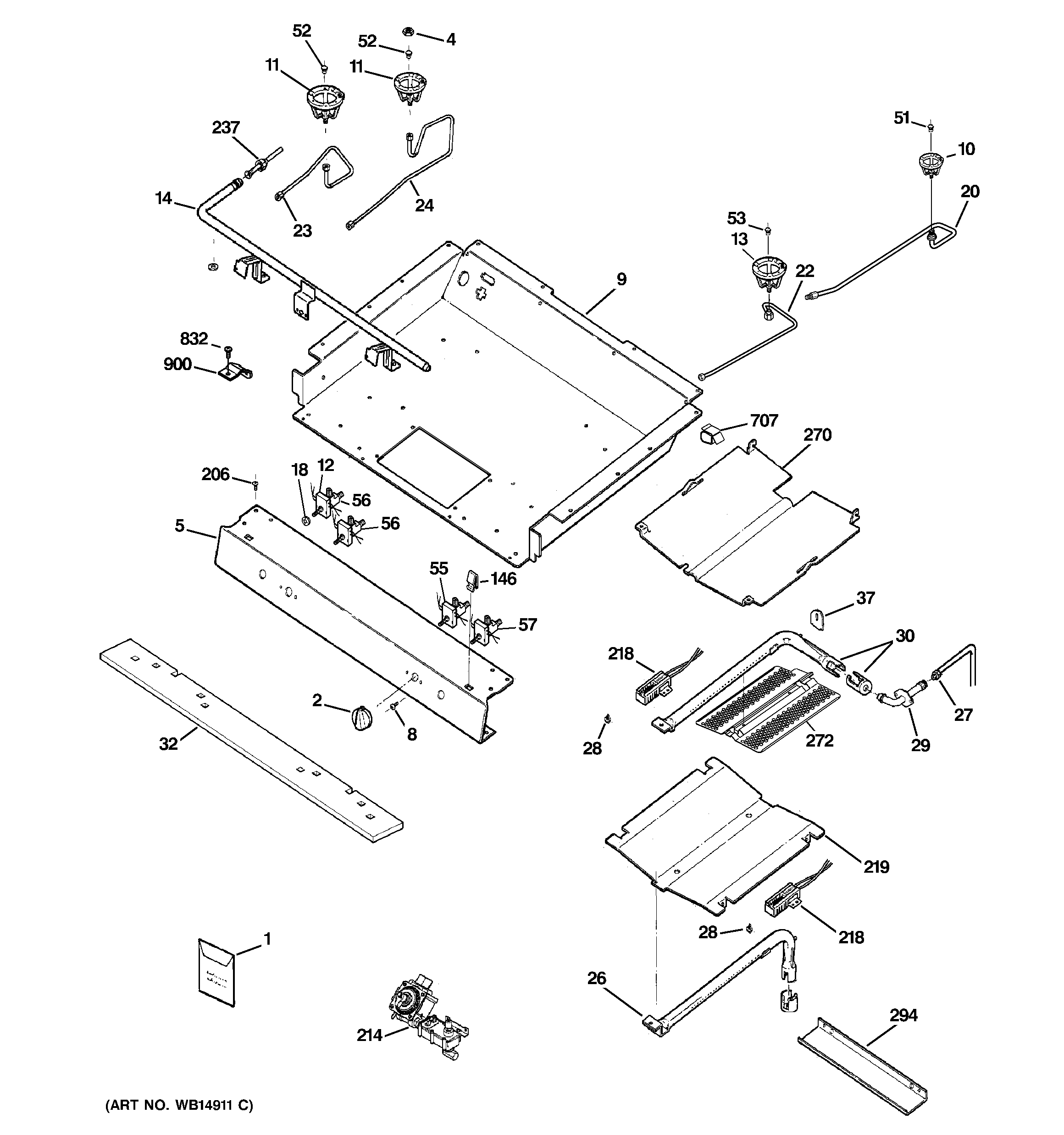

RGB790DEP3BB GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21391
1	WB28K10556 GE Range Gas Valve Conversion Kit
1	GEN 31-21441
1	GEN 49-85161
2	WB03K10035 GE Oven Top Burner Knob
2	WB03K10034 GE Oven Burner Knob
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10767
5	GEN WB36K10766
8	WB01K10002 GE Oven Screw 8-32
9	WB63K10190 GE Burner Box Assembly
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10072
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	GEN WB28K10425
18	WB2K24 GE Oven Valve Cover
20	WB28K10187 GE Oven Rear Orifice Holder
22	WB28K10189 GE Oven Front Orifice Holder
23	WB28K10190 GE Oven Left Front Orifice
24	WB28K10188 GE Oven Rear Orifice H R 150N 9500
26	GEN WB16K0022
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10069
37	WB34K14 GE Igniter Cover
51	WB28K10031 GE Oven Orifice
52	WB28K10032 GE Oven LP Orifice
53	WB28K10023 GE Oven Orifice
55	VALVE BURNER 270 RR
56	VALVE BURNER 270
57	WB21K10099 GE Oven Burner Valve
146	GEN WB02K0052
206	WB01K10091 GE Oven Screw
214	WB19K10051 GE Oven Control Valve Assembly SIC D.
218	WB2X9154 GE Oven Igniter with 8" Leads
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
237	GEN WB28K10587
270	WB49K10025 GE Range Deflector
272	WB49K10045 GE Broil Shield
294	WB63K10054 GE Terminal Cover
294	GEN WB63K10040
707	WB02K10267 GE Wire Clip
832	WB01K10080 GE Oven Thermostat Screw
832	WB01K10043 GE Oven Screw
900	WB02K10297 GE Oven Valve Bracket
