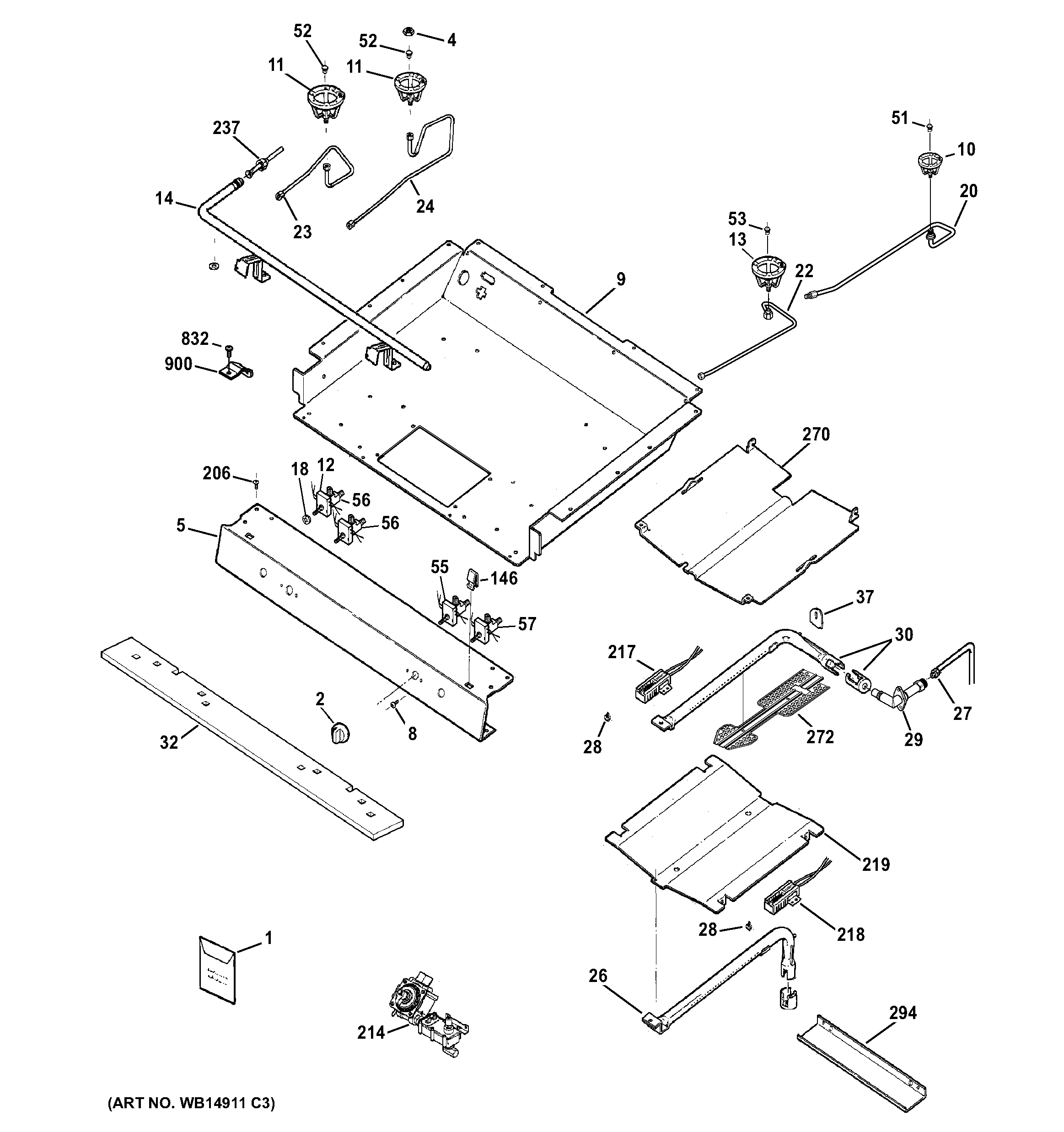

RGB790DET2BB GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-10934
1	GEN 31-10939
1	GEN 31-17106
1	GEN 49-85214
1	WB49X21392 GE Oven Hinge Service Kit
2	WB03K10035 GE Oven Top Burner Knob
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10766
8	WB01K10002 GE Oven Screw 8-32
9	WB63K10190 GE Burner Box Assembly
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10074
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	WB28K10457 GE Oven Manifold Pipe
18	WB2K24 GE Oven Valve Cover
20	WB28K10187 GE Oven Rear Orifice Holder
22	WB28K10803 GE Oven Surface Burner Orifice Holder
23	WB28K10190 GE Oven Left Front Orifice
24	WB28K10188 GE Oven Rear Orifice H R 150N 9500
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	WB28X20389 GE Oven 90-Degree Elbow Assembly
30	GEN WB16K10067
32	INSULATION BURNER BOX
37	WB34K14 GE Igniter Cover
51	WB28K10031 GE Oven Orifice
52	WB28K10023 GE Oven Orifice
53	WB28K10032 GE Oven LP Orifice
55	VALVE BURNER 270 RR
56	VALVE BURNER 270
57	WB21K10099 GE Oven Burner Valve
146	GEN WB02K0052
206	WB01K10091 GE Oven Screw
214	WB21X20293 GE Oven Control Valve Assembly
217	WB13K21 GE Oven Igniter with 7 Leads
218	WB13X25261 GE Oven Igniter Glowbar
219	OVEN DEFLECTOR
237	WB28X25364 GE Oven Manifold Supply Tube
270	WB49K10025 GE Range Deflector
272	WB49K10045 GE Broil Shield
294	GEN WB63K10040
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10297 GE Oven Valve Bracket
