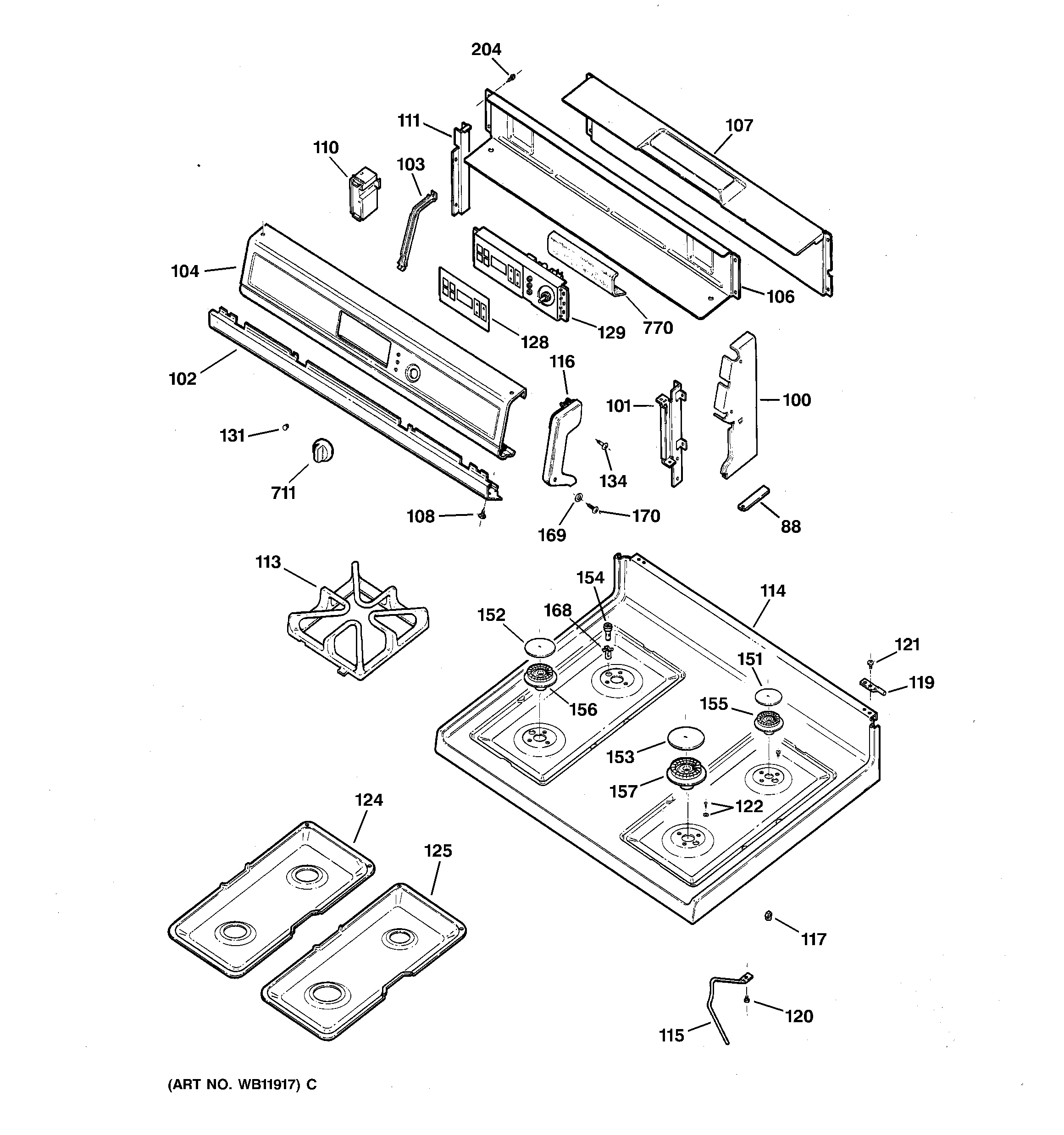

RGB845WEC1WW CONROL PANEL & COOKTOP

RGB845WEC1WW CONROL PANEL & COOKTOP

Written by

in

RGB845WEC1WW CONROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10071
100GEN WB07K10072
101GEN WB37K0017
101GEN WB37K0018
102GEN WB07K0005
103GEN WB37K0009
104GEN WB36K10008
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB18K10035 GE Oven Wire Harness
110GEN WB13K0025
111GEN WB34K0005
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10027
115WB2K91 GE Oven Top Support
116GEN WB07K0342
116GEN WB07K0343
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
122WB1K84 GE Oven Screw and
124GEN WB34K10012
125GEN WB34K10011
128GEN WB27K10016
129WB27K10140 GE Oven Control T08-2K
131WB25T10041 GE Oven Lens
134GEN WB01K0076
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10003
155GEN WB16K10006
156BURNER
157GEN WB16K10007
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
711GEN WB03K10056
770GEN WB35K10004
